Faac Genius 6170124 SIROCCO 250 230V actuator

443,49 EUR including 22.00% VAT
Product code: #27157
Manufacturer: GENIUS
  • Power supply: 230V AC
  • Rated power: 250 W
  • Max. leaf length: 2.5 m
  • Max speed: 1.6 cm/sec.
  • Degree of protection: IP 54
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Genius 6100253 Post bracket Faac Genius 58P0199 Post bracket base

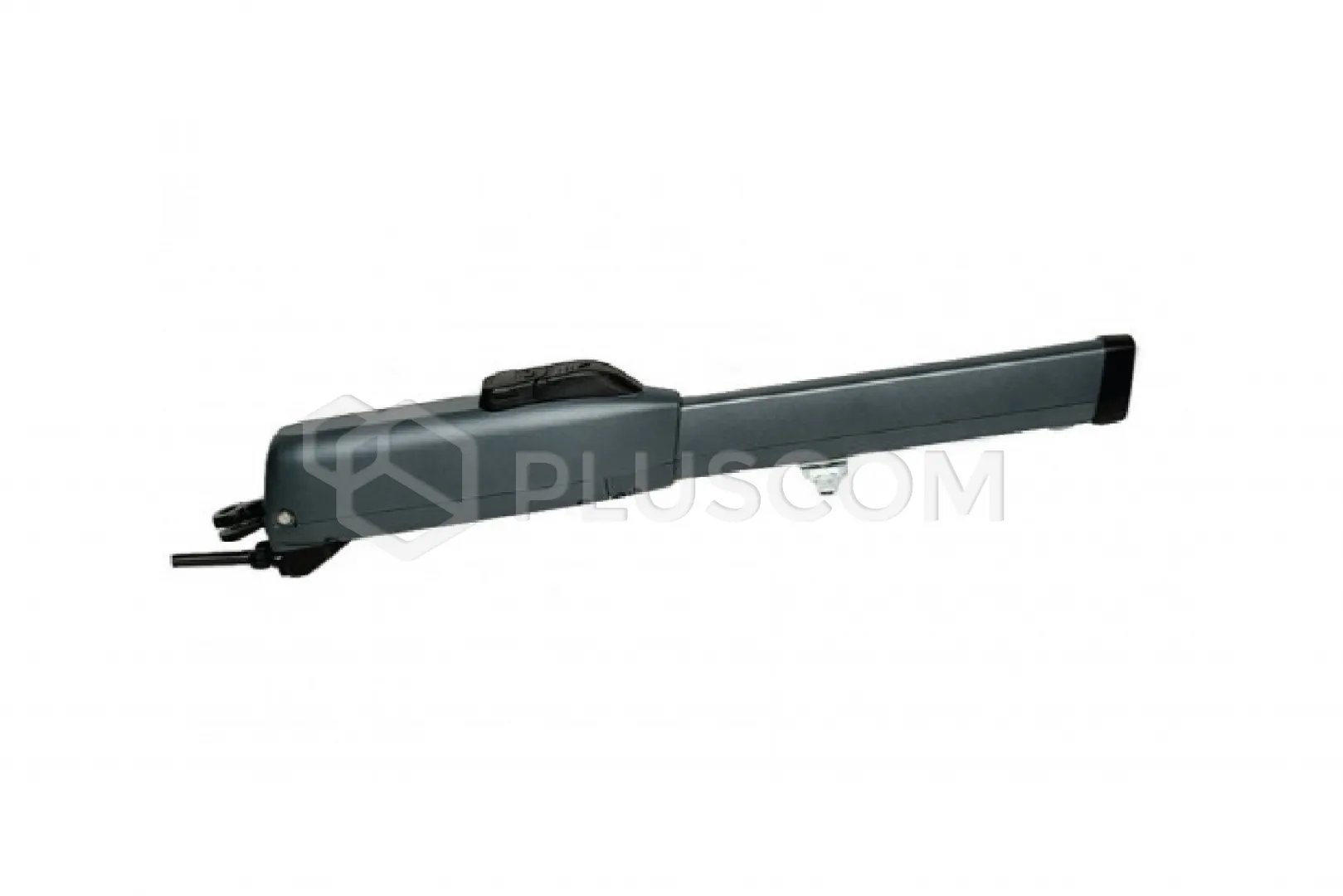

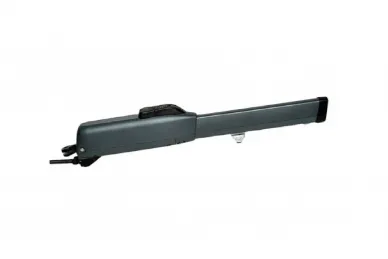

Faac Genius 6170124 SIROCCO 250 230V Actuator


The SIROCCO 250 230V self-locking actuator (right/left) is designed for swing gates with a leaf length of up to 2.5 m.

Aluminum body protected by a double protective coating, guaranteeing higher resistance to atmospheric agents

Emergency release using a user-friendly lever and a personalized key.

FEATURES:

  • Version: 230V
  • Maximum leaf size up to 2.5 m
  • G-WAY system in 230 V version (with Brain 17 control unit)
  • PROcoder safety system (with Brain 17 control unit)
  • Emergency release with user-friendly lever and personalized key
  • Solid bronze gear
  • Slowing down opening and closing
  • Cables (with glands) led out horizontally, which allows the drive to be mounted very close to the ground surface
  • Aluminum body protected with double protective coating, guaranteeing higher resistance to weather conditions
  • Integrated mechanical limiters

Data technical:

  • Supply voltage: 230V
  • Electric motor: 230V
  • Nominal power: 250 W
  • Current consumption: 1.1A
  • Thermal protection: 140°C
  • Capacitor: 6.3 μF
  • Thrust force: 200 daN
  • Actuator stroke: 300 mm (350 mm without mechanical stops)
  • Max. speed: 1.6 cm/sec.
  • Usage frequency at 20°C: S3 - 30%
  • Operating ambient temperature: -20°C / +55°C
  • Protection class: IP54
  • Weight: 6.5 kg
