Faac Genius 6170120 Actuator MISTRAL 400 230V

496,64 EUR including 23.00% VAT
Product code: #27159
Manufacturer: GENIUS
  • Power supply: 230V AC
  • Rated power: 300 W
  • Max. leaf length: 4 m
  • Max speed: 1.6 cm/sec.
  • Degree of protection: IP 54
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Genius 6100253 Post bracket Faac Genius 58P0199 Post bracket base

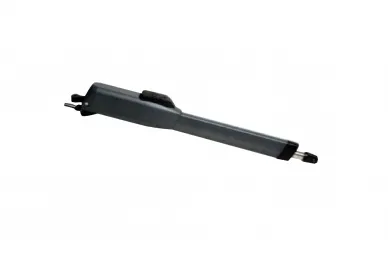

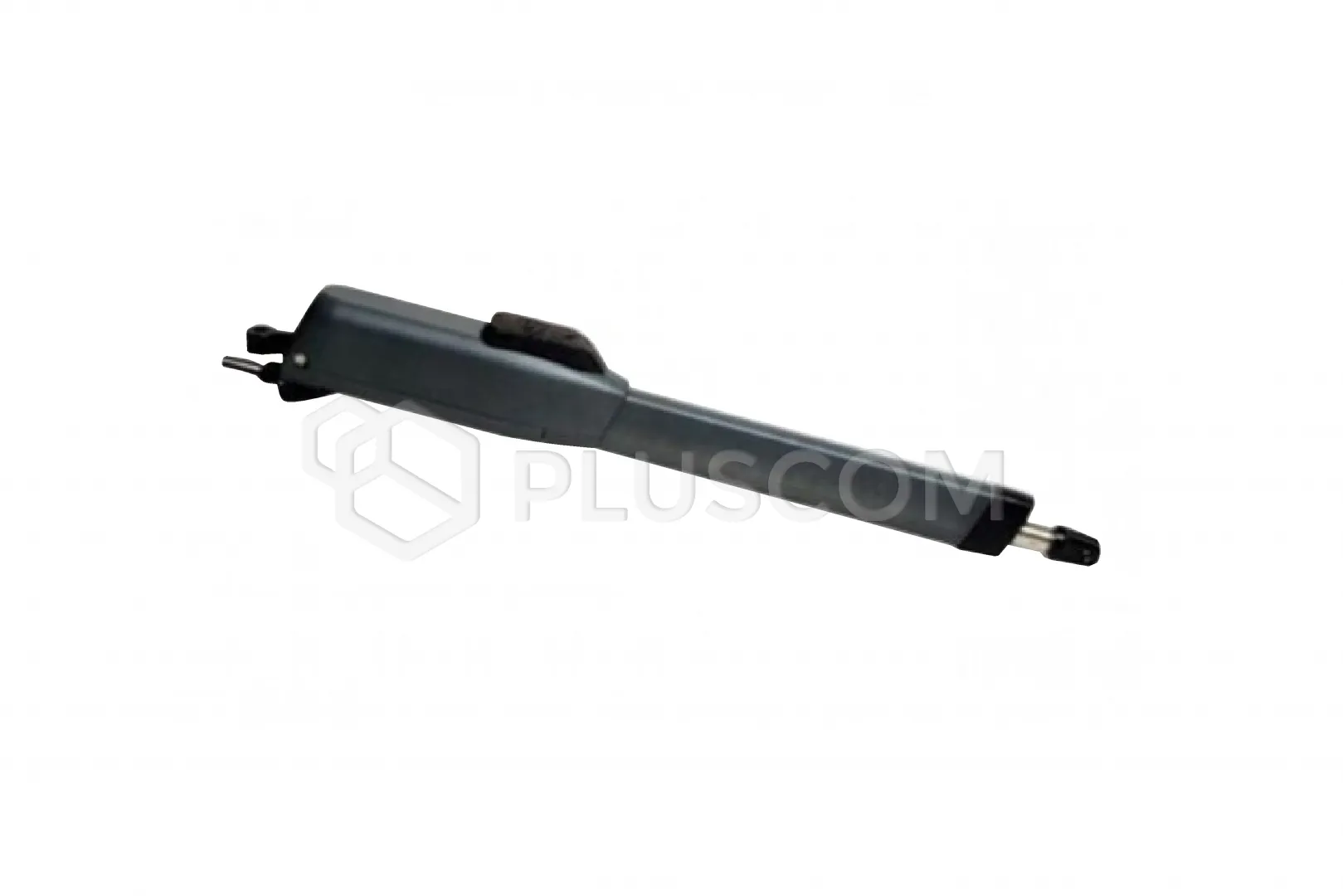

Faac Genius 6170120 MISTRAL 400 230V actuator


The MISTRAL 400 230V self-locking actuator (right/left) is designed for swing gates with a leaf length of up to 4 m.

FEATURES:

  • Version: 230V
  • Maximum leaf size up to 4 m
  • G-WAY system in 230 V version (with Brain 19 control unit)
  • PROcoder safety system (with Brain 19 control units)
  • Emergency release with user-friendly lever and personalized key
  • Solid bronze gear
  • Opening and closing slowdown available in both versions
  • Cables (with chokes) led out horizontally, which allows the drive to be mounted very close to the ground surface
  • Aluminum body protected with a double protective coating, guaranteeing higher resistance to weather conditions

Technical data:

  • Power supply voltage: 230V
  • Electric motor: 230V
  • Nominal power: 300 W
  • Current consumption: 1.3A
  • Thermal protection: 140°C
  • Capacitor: 8 μF
  • Thrust force: 300 daN
  • Actuator stroke: 400 mm
  • Max. speed: 1.6 cm/sec.
  • Usage frequency at 20°C: S3 - 30%
  • Operating ambient temperature: -20°C / +55°C
  • Protection class: IP54
  • Weight: 8 kg
