Faac Genius 6170117 Actuator MISTRAL 300 LS 230V

499,72 EUR including 20.00% VAT
Product code: #27161
Manufacturer: GENIUS
  • Power supply: 230V AC
  • Rated power: 300 W
  • Max. leaf length: 3 m
  • Max feed speed: 1.6 cm/sec.
  • Degree of protection: IP 54
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Genius 58P0199 Post bracket base Faac Genius 6100253 Post bracket

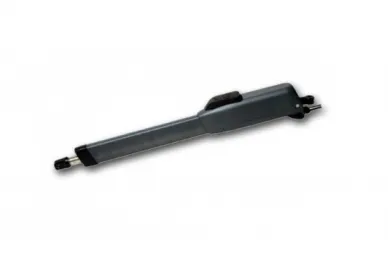

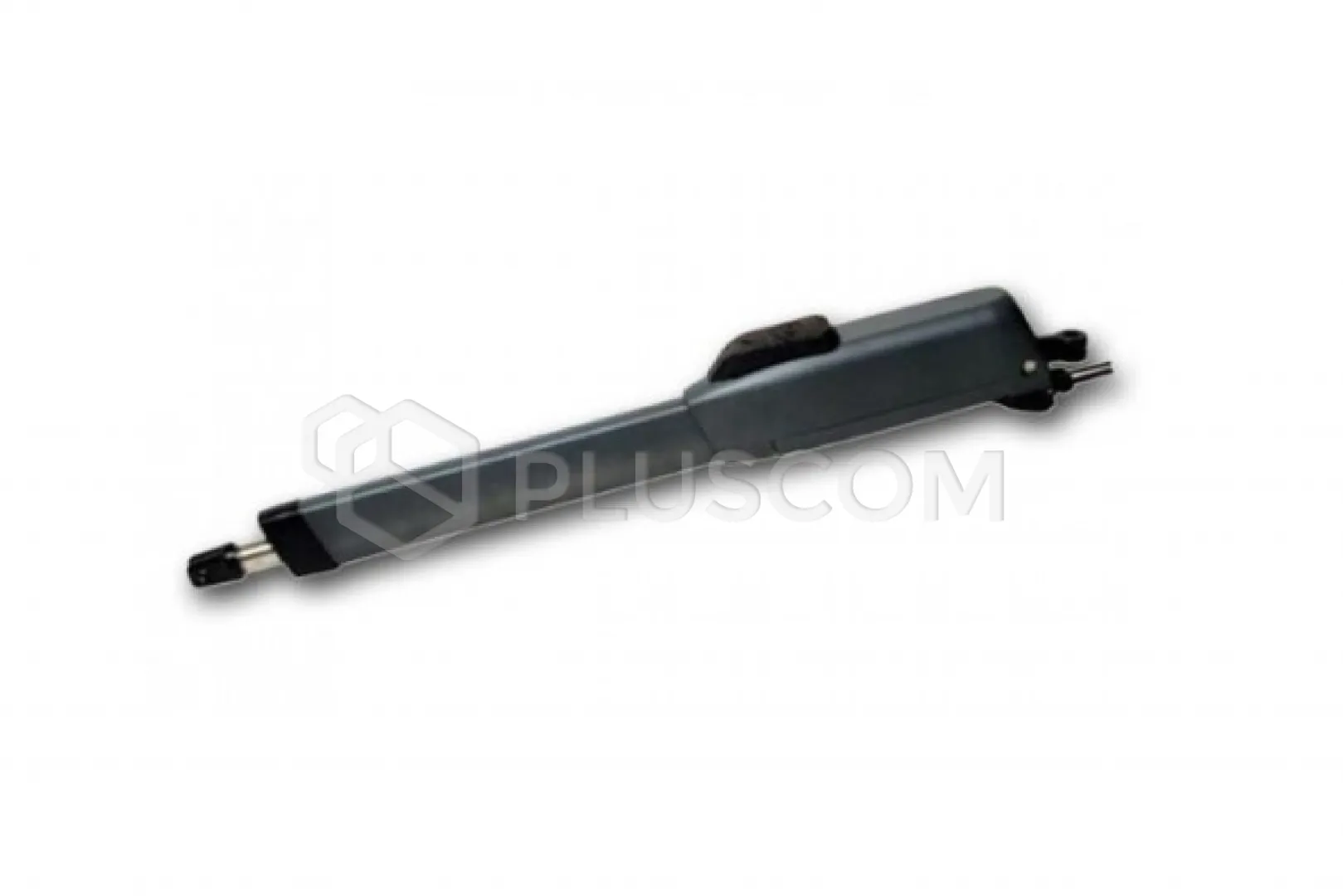

Faac Genius 6170117 MISTRAL 300 LS 230V actuator


The MISTRAL 300 LS 230V self-locking actuator (right/left) is designed for swing gates with a leaf length of up to 3 m.

FEATURES:

  • Version: 230V
  • Maximum leaf size up to 3 m
  • G-WAY system in 230V version (with Brain 19 control unit)
  • PROcoder safety system (with Brain 19 control units)
  • Emergency release with user-friendly lever and personalized key
  • Solid bronze gear
  • Opening slowdown and closing available in both versions
  • Cables (with chokes) led out horizontally, which allows the drive to be mounted very close to the ground surface
  • Aluminum body secured with a double protective coating, guaranteeing higher resistance to atmospheric factors

Technical data:

  • Power supply voltage: 230V
  • Motor: 230V
  • Nominal power: 300 W
  • Current consumption: 1.3A
  • Thermal protection: 140°C
  • Capacitor: 8 μF
  • Thrust force: 300 daN
  • Actuator stroke: 300 mm
  • Max. speed: 1.6 cm/sec.
  • Usage frequency at 20°C: S3 - 35%
  • Operating ambient temperature: -20°C / +55°C
  • Protection class: IP54
  • Weight: 7.8 kg
