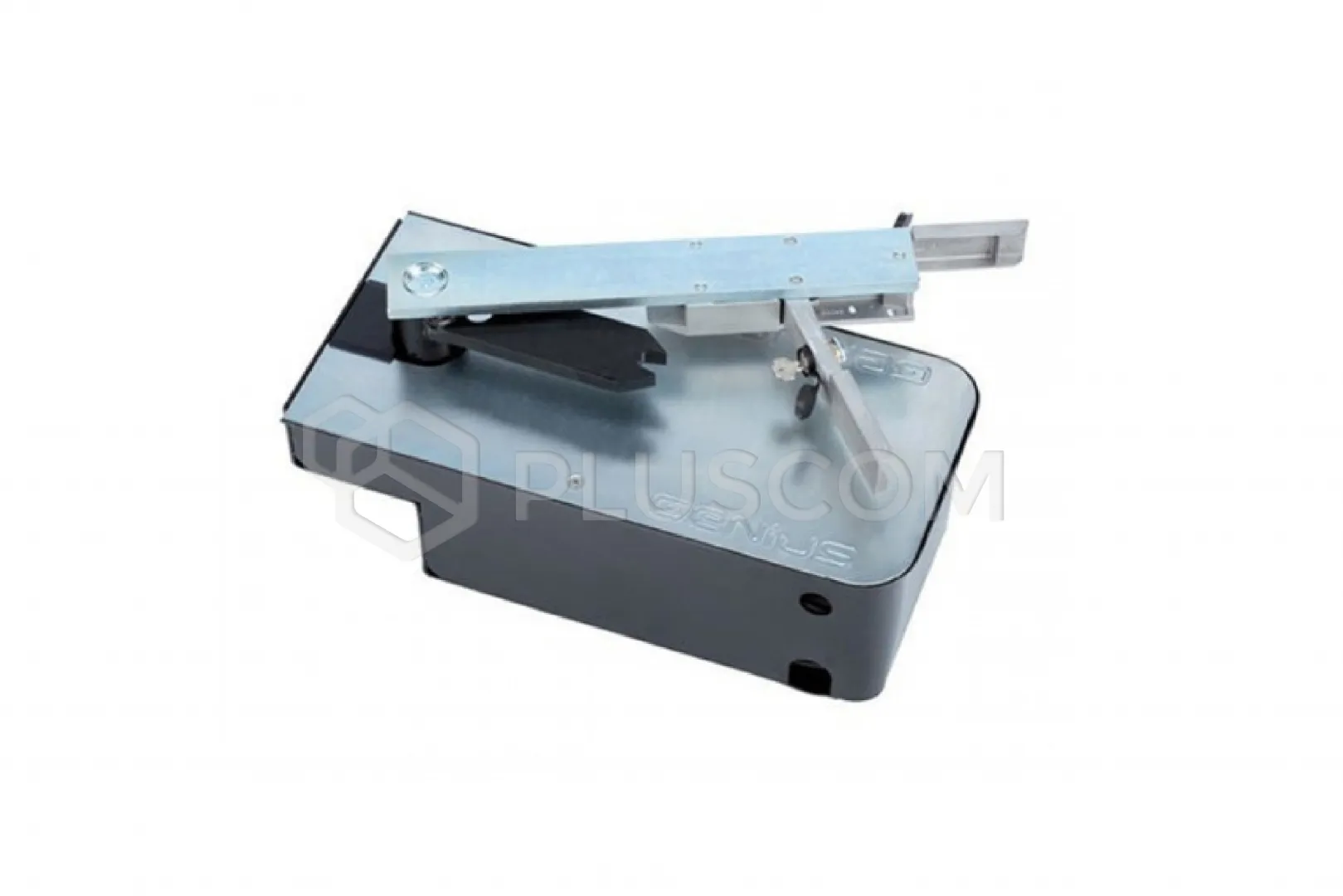

Faac Genius 6170082 DIABLO 24V actuator for swing gates

531,69 EUR including 23.00% VAT
Product code: #27163
Manufacturer: GENIUS
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Max. leaf length: 2.5 m
  • Max. leaf weight: 250 kg
  • Angular velocity: 6°/sec
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Faac Genius 6170082 DIABLO 24V actuator for swing gates


Genius DIABLO 24V actuator for swing gates with a leaf length of up to 2.5 m.

FEATURES:

  • Fully concealed and extremely compact self-locking drive
  • Single version as standard allowing for opening up to 180°
  • Designed to control gates weighing up to 250 kg and up to 2.5 m long
  • Absolute encoder (option) detecting the position of the gate and ensuring maximum anti-crushing protection
  • Adjustable mechanical stops (option)
  • Aluminum body
  • Patented lever drive release system, allowing the drive to be unlocked from the outside and inside the property (in set)

Technical data:

  • Engine power supply: 24V
  • Nominal power: 140W
  • Max. torque: 130Nm
  • Angular speed: 6°/sec
  • Frequency of use at 20°C: Continuous
  • Ambient temperature during operation: -20°C / +55°C
  • Protection class: IP67
  • Device weight: 6.5 kg
