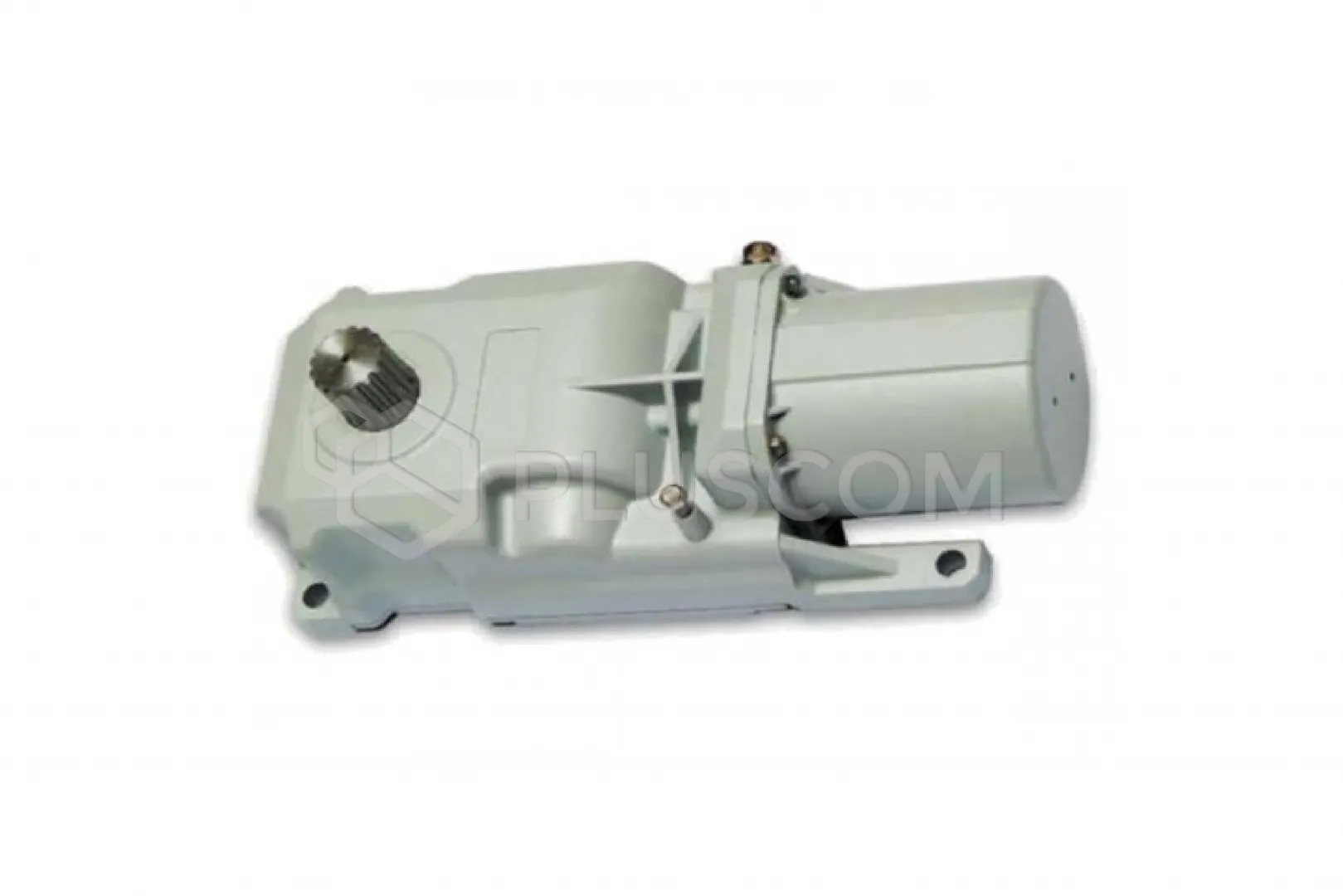

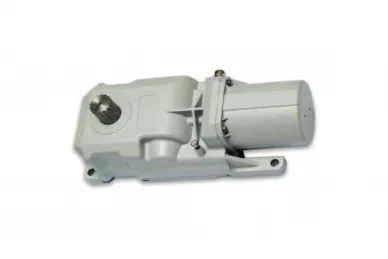

Faac Genius 6170077 ROLLER 230V underground drive for swing gates

618,30 EUR including 22.00% VAT
Product code: #27167
Manufacturer: GENIUS
  • Power supply: 230V AC
  • Rated power: 380 W
  • Max. leaf length: 3.5 m
  • Angular velocity: 6°/sec
  • Degree of protection : IP 67
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
FAAC 722122 Mechanical closing limiter FAAC 722121 Mechanical opening limiter Faac 490111 Optional kit for opening the door to 180 degrees Faac 390612 770 kit for opening shutter 140 degrees Faac Genius 58P1573 Adapter for installing the ROLLER actuator Faac Genius 6100286 Unlocking mechanism for opening up to 110° Faac Genius 58P0052 INOX Mounting box for ROLLER underground drive Faac Genius 58P0050 Assembly box for ROLLER underground drive

Faac Genius 6170077 ROLLER 230V underground operator for swing gates


Genius ROLLER 230V underground operator for swing gates with a leaf length of up to 3.5 m.

FEATURES:

  • Designed for gates with a leaf length of up to 3.5 m and a maximum weight of 350 kg
  • Unlocking by means of an easy-to-use lever and personalized keys - FAAC PATENT
  • Three mechanical reduction stages with steel worm screw
  • Slowing down of opening and closing available in both versions
  • Polyester coating also suitable for installation in saline environments

Technical data:

  • Motor power supply: 230V
  • Motor: 230V
  • Nominal power: 380 W
  • Current consumption: 1.7A
  • Capacitor: 12.5 μF
  • Max. torque: 330 Nm
  • Angular speed: 6°/sec
  • Opening time of the wing to the 90° position (sec): 18 (110°/180°)-10.5 (140°)
  • Frequency of use at 20°C: S3 - 30%
  • Ambient temperature during operation: -20°C / +55°C
  • Protection class: IP67
  • Weight: 26.5 kg
