Faac Genius 6170038 Actuator G-BAT 324 ENV RH 24V (right)

411,99 EUR including 22.00% VAT
Product code: #27149
Manufacturer: GENIUS
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Max. leaf length: 3m
  • Max speed: 2.1 cm/sec.
  • Degree of protection: IP 54
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Genius 6100253 Post bracket Faac Genius 6100043 Door leaf bracket Faac Genius 58P0199 Post bracket base Faac XBAT 24 emergency battery Faac Genius 6100324 PROcoder (BUS) Obstacle detection sensor for G-BAT drive Faac Genius 6100254 Tube cover for G-BAT 300 and 324 ENV

Faac Genius 6170038 Actuator G-BAT 324 ENV RH 24V (right)

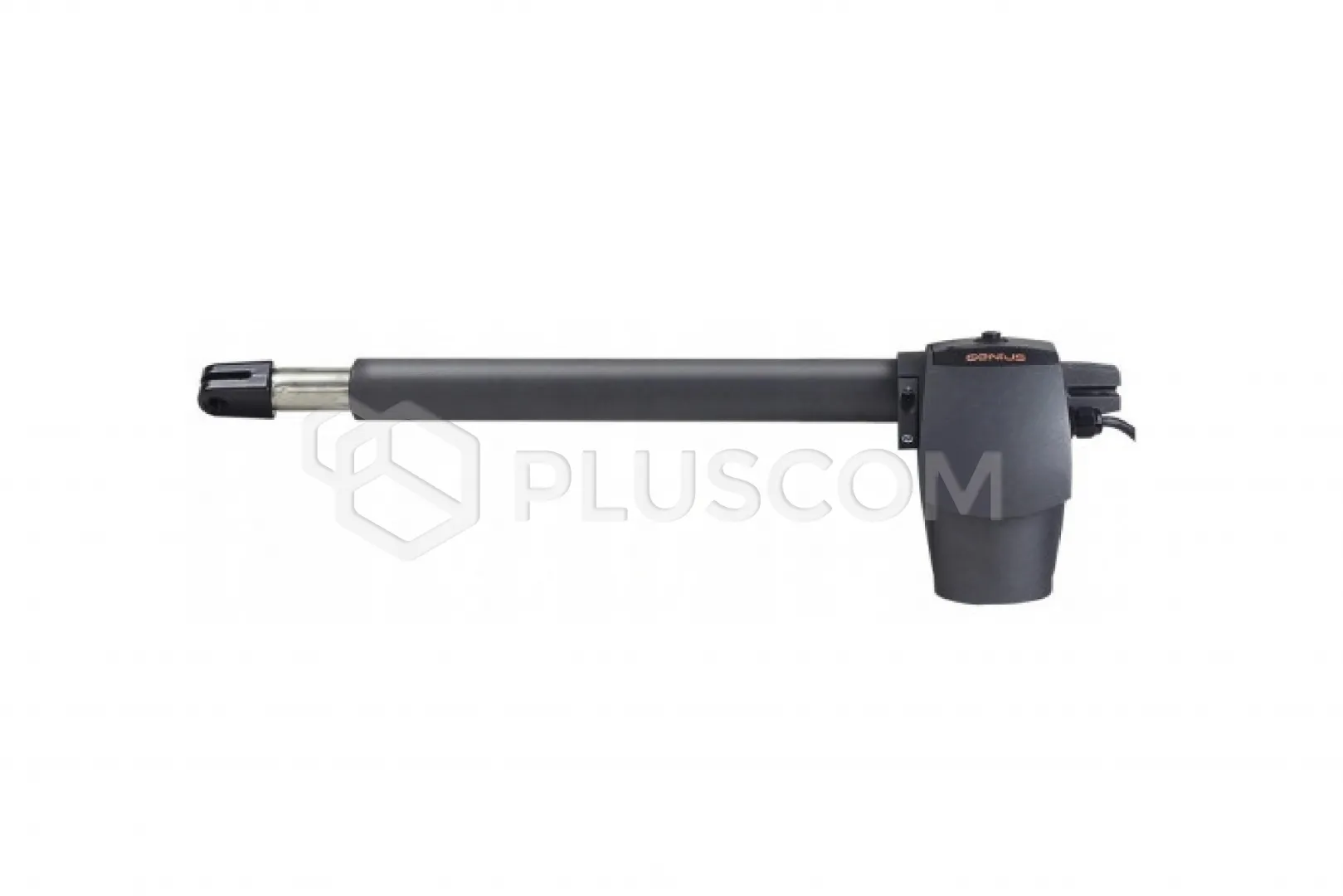

The G-Bat 324 ENV RH 24V (right) self-locking actuator is designed for swing gates with a leaf length of up to 3 m.

The great versatility of applications makes this actuator unmatched on the European market. G-Bat is reliable and stands out for its undeniable modernity and aesthetics.

Its dynamic and elegant line keeps up with the latest design trends and harmonizes with almost every gate model. A bronze gear wheel, working with a steel screw, guarantees trouble-free operation for a long period. The emergency release enabling manual operation of the gate in the event of a power failure is easily accessible and easy to use.

Technical data:

  • Power supply voltage: 230V
  • Motor: 24V
  • Nominal power: 35 W
  • Thrust: 150 daN
  • Actuator stroke: 300 mm
  • Max speed: 2.1 cm/sec.
  • Use frequency at 20°C: continuous
  • Ambient temperature during operation: -20°C / +55°C
  • Protection class: IP 54
  • Weight: 7.5 kg
