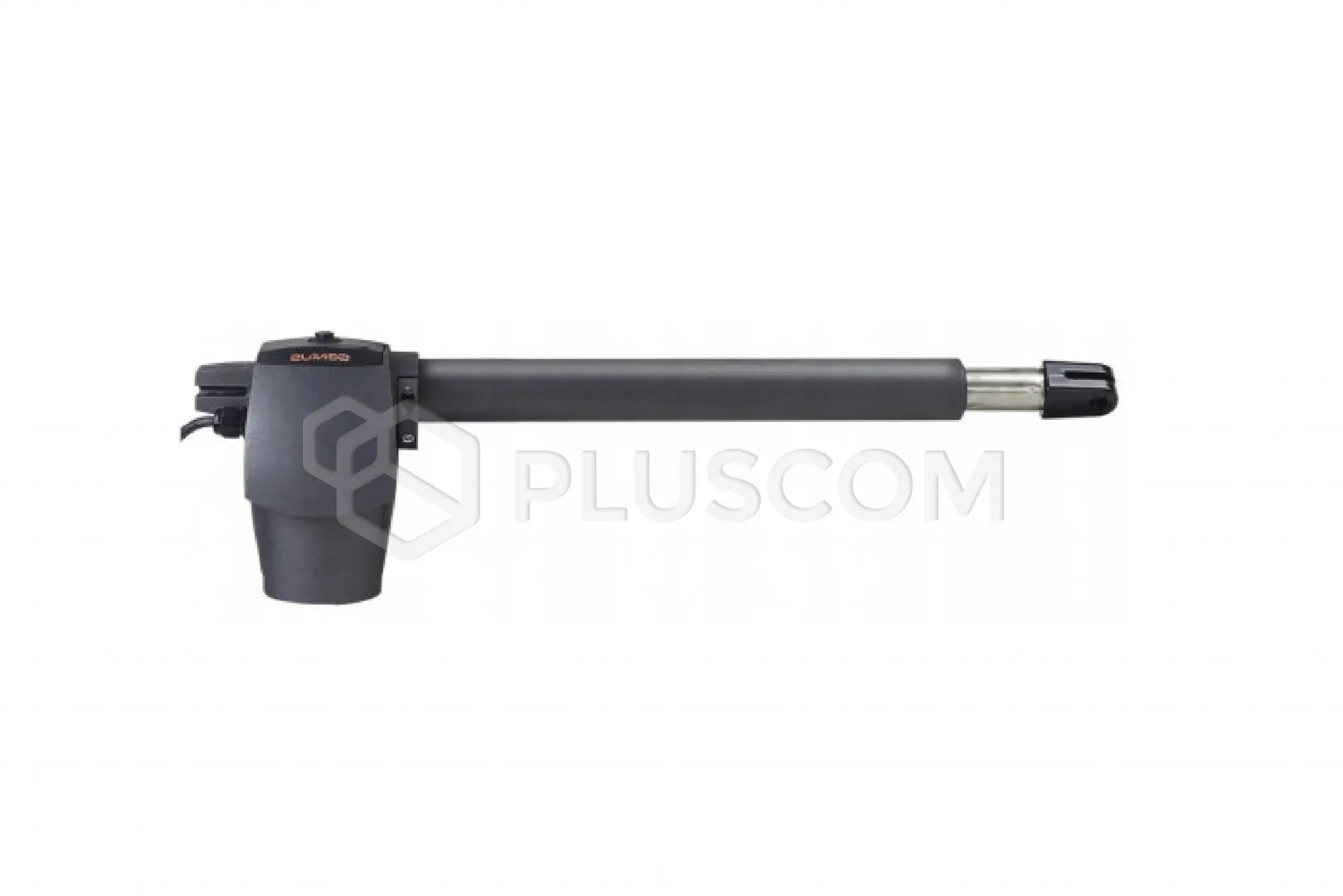

Faac Genius 6170031 G-BAT 400 LH 230V Actuator for swing gates with a leaf length of up to 4 m (left)

385,63 EUR including 23.00% VAT
Product code: #27148
Manufacturer: GENIUS
  • Power supply: 230V AC
  • Max. leaf length: 4m
  • Rated power: 280 W
  • Max speed: 1.6 cm/sec.
  • Degree of protection: IP 54
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Faac Genius 6170031 G-BAT 400 LH 230V Actuator for swing gates with a leaf length of up to 4 m (left)


The G-BAT 400 RH 230V (left) self-locking actuator is designed for swing gates with a leaf length of up to 4 m.

The great versatility of applications makes this actuator unmatched on the European market. G-Bat is reliable and stands out for its undeniable modernity and aesthetics. Its dynamic and elegant line keeps up with the latest design trends and harmonizes with almost every gate model.

A bronze gear wheel, working with a steel screw, guarantees trouble-free operation for a long period. Emergency release enabling manual operation of the gate in the event of a power failure is easily accessible and easy to use.

FEATURES:

  • Total length with extended piston: 1130 mm
  • Distance between mounting holes with extended piston: 1100 mm
  • Total length with retracted piston: 740 mm

Technical data:

  • Power supply voltage: 230V
  • Motor: 230V
  • Nominal power: 280 W
  • Current consumption: 1.2A
  • Thermal protection: 140°C
  • Capacitor: 8 μF
  • Thrust: 350 daN
  • Actuator stroke: 400 mm
  • Max speed: 1.6 cm/sec.
  • Usage frequency at 20°C: S3 - 30%
  • Operating ambient temperature: -20°C / +55°C
  • Protection class: IP 54
  • Weight: 7 kg
