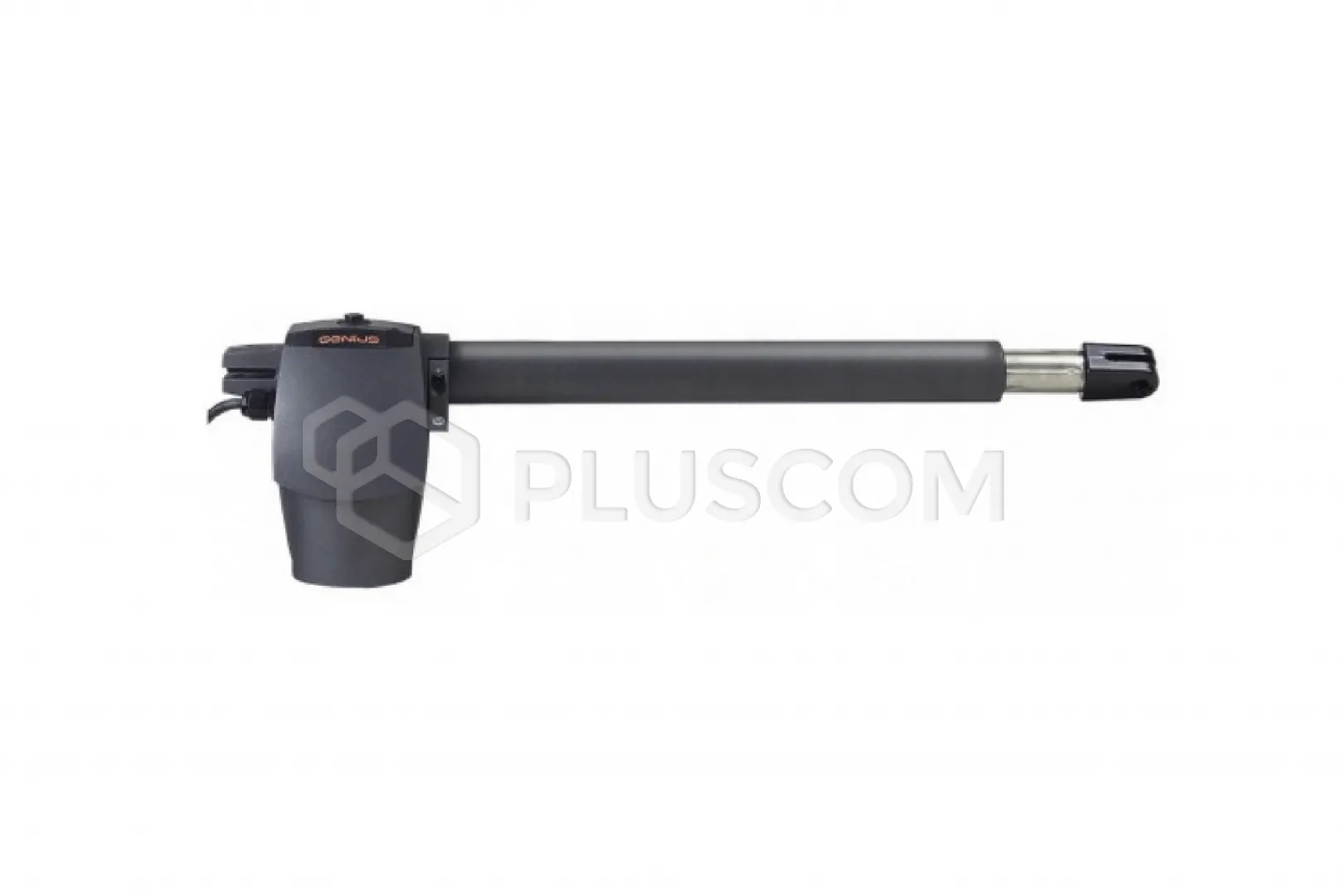

Faac Genius 6170027 Actuator G-BAT 300 RH 230V (left)

420,05 EUR including 23.00% VAT
Product code: #27146
Manufacturer: GENIUS
  • Power supply: 230V AC
  • Rated power: 280 W
  • Max speed: 1.6 cm/sec.
  • Degree of protection: IP 54
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Faac Genius 6170027 Actuator G-BAT 300 RH 230V (left)


The G-BAT 300 RH 230V (left) self-locking actuator is designed for swing gates with a leaf length of up to 3 m.

The great versatility of applications makes this actuator unmatched on the European market. G-Bat is reliable and stands out for its undeniable modernity and aesthetics.

Its dynamic and elegant line keeps up with the latest design trends and harmonizes with almost every gate model. A bronze gear wheel, working with a steel screw, guarantees trouble-free operation for a long period. The emergency release enabling manual operation of the gate in the event of a power failure is easily accessible and easy to use.

Technical data:

  • Power supply voltage: 230V
  • Motor: 230V
  • Nominal power: 280 W
  • Current consumption: 1.2A
  • Thermal protection: 140°C
  • Capacitor: 8 μF
  • Thrust force: 350 daN
  • Actuator stroke: 300 mm
  • Max. speed: 1.6 cm/sec.
  • Usage frequency at 20°C: S3 - 30%
  • Operating ambient temperature: -20°C / +55°C
  • Protection class: IP 54
  • Weight: 6.5 kg
