Faac Genius 6120041 ZODIAC 60 24V garage door actuator

238,20 EUR including 23.00% VAT
Product code: #27184
Manufacturer: GENIUS
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Max. sectional door: 5 x 2.50 m
  • Usage frequency: 80 cycles per day
  • Degree of protection: IP20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac XBAT 24 emergency battery Faac Genius 6100125 Single rail bracket for garage doors Faac Genius 6100107 Rod for ZODIAC sectional doors Faac 390488 External unlocking mechanism Faac Double rail with 3600mm strip Faac Double rail with 3000mm strip Faac Single rail with 3600mm strip Faac Single rail with 3000mm strip Faac Single rail with 2400mm strip

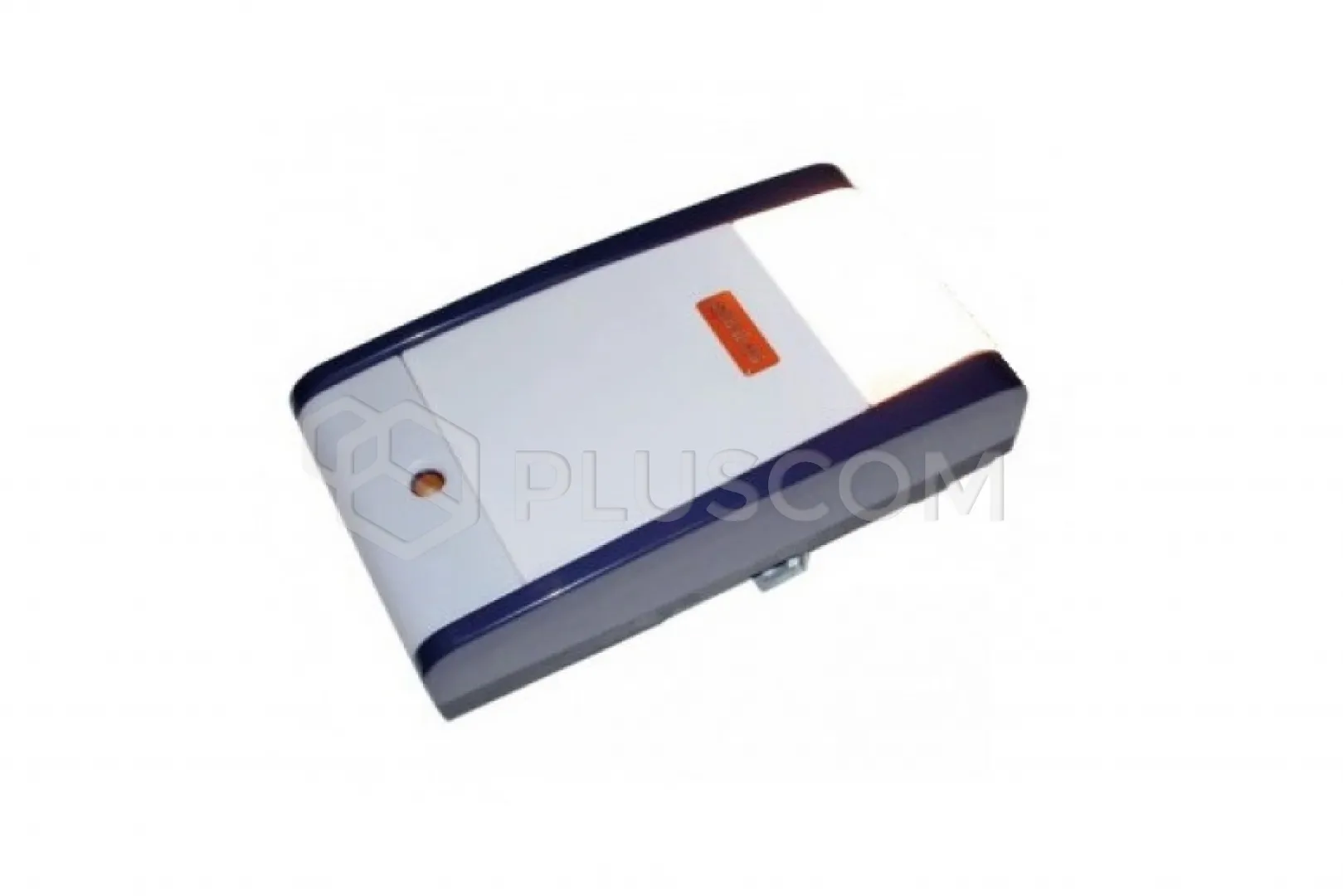

Faac Genius 6120041 ZODIAC 60 24V Garage Door Actuator


The ZODIAC 60 24V electromechanical self-locking actuator with a tension force of 600N is designed for ceiling mounting, for sectional and single-plane garage doors.

Rail not included.

Self-locking drive - built-in GEO 08 control unit.

The actuator has a compact head size that requires minimal space for installation. Installation time has been reduced by 40%, and the lightweight base made of durable polymer ensures low actuator weight and easy maneuverability during installation. The Zodiac 60 is connected with a cable with a plug, which allows you to avoid direct contact with voltage.

Technical data:

  • Power supply: 230V
  • Motor: 24V
  • Power: 220 W
  • Thrust: 60 daN
  • Max. number of consecutive cycles: 30
  • Max. gear: 1900 - 2500 - 3100 mm
  • Sliding speed, without load: 6.6 m/min
  • Max. sectional door: 5 x 2.50 m
  • Use frequency at 20°C: 80 cycles per day
  • Ambient temperature during operation: -20°C / +55°C
  • Protection class: IP20
  • Weight: 6.6 kg
