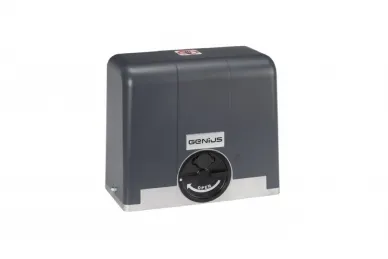

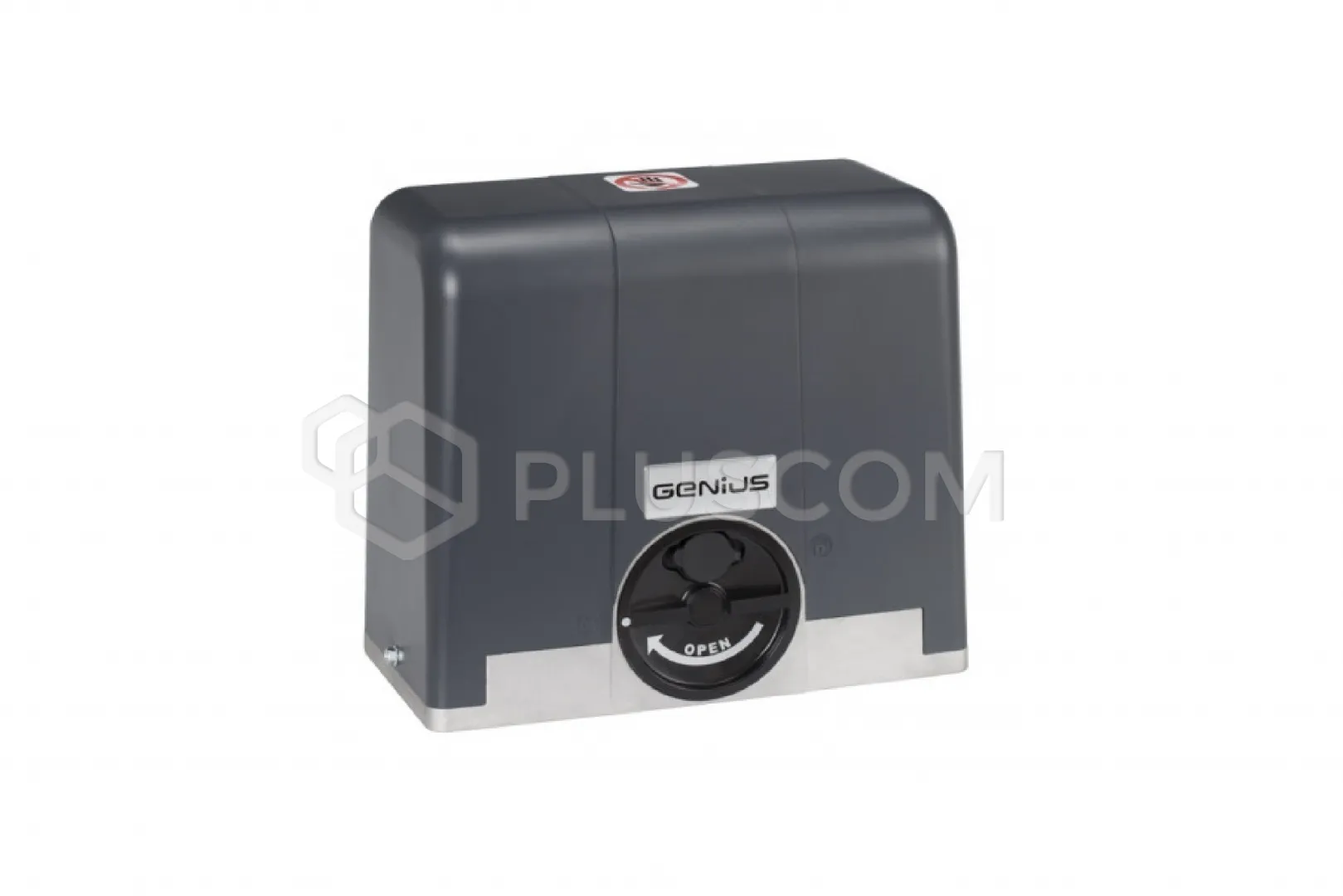

Faac Genius 61100861 BLIZZARD 900 C ENC 230V sliding gate operator

685,01 EUR including 23.00% VAT
Product code: #27180
Manufacturer: GENIUS
  • Power supply: 230V AC
  • Max. leaf weight: 900 kg
  • Feed speed: 12 m/min
  • Gear: Z16 mod.4
  • Degree of protection: IP44
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 6100345 Set of 4 mounting screws Faac 719328 Galvanized metal toothed rack 30 mm

Faac Genius 61100861 BLIZZARD 900 C ENC 230V Drive for Sliding Gates


BLIZZARD 900 C ENC 230V self-locking drive - integrated Sprint 382 control unit, integrated encoder.

These models are equipped with magnetic limit switches.

FEATURES:

  • 230 V version for gates up to 900 kg
  • Robust internal gear
  • Magnetic limit switches
  • Electronic control unit with transparent plastic housing and external programming buttons
  • Wide selection of operating logic and operating parameters
  • Compact dimensions
  • Large space inside the drive for easier connections; convenient for the installer adjustment of the height and depth of the drive installation

Technical data:

  • Supply voltage: 230V
  • Motor: 230V
  • Nominal power: 540 W
  • Thermal protection: 140°C (self-resetting)
  • Capacitor: 12.5 μF
  • Maximum thrust: 590 N
  • Gear: Z16 mod. 4
  • Feed speed: 12 m/min
  • Usage frequency at 20°C: S3 – 40%
  • Operating ambient temperature: -20°C / +55°C
  • Protection class: IP44
  • Device weight: 10 kg
