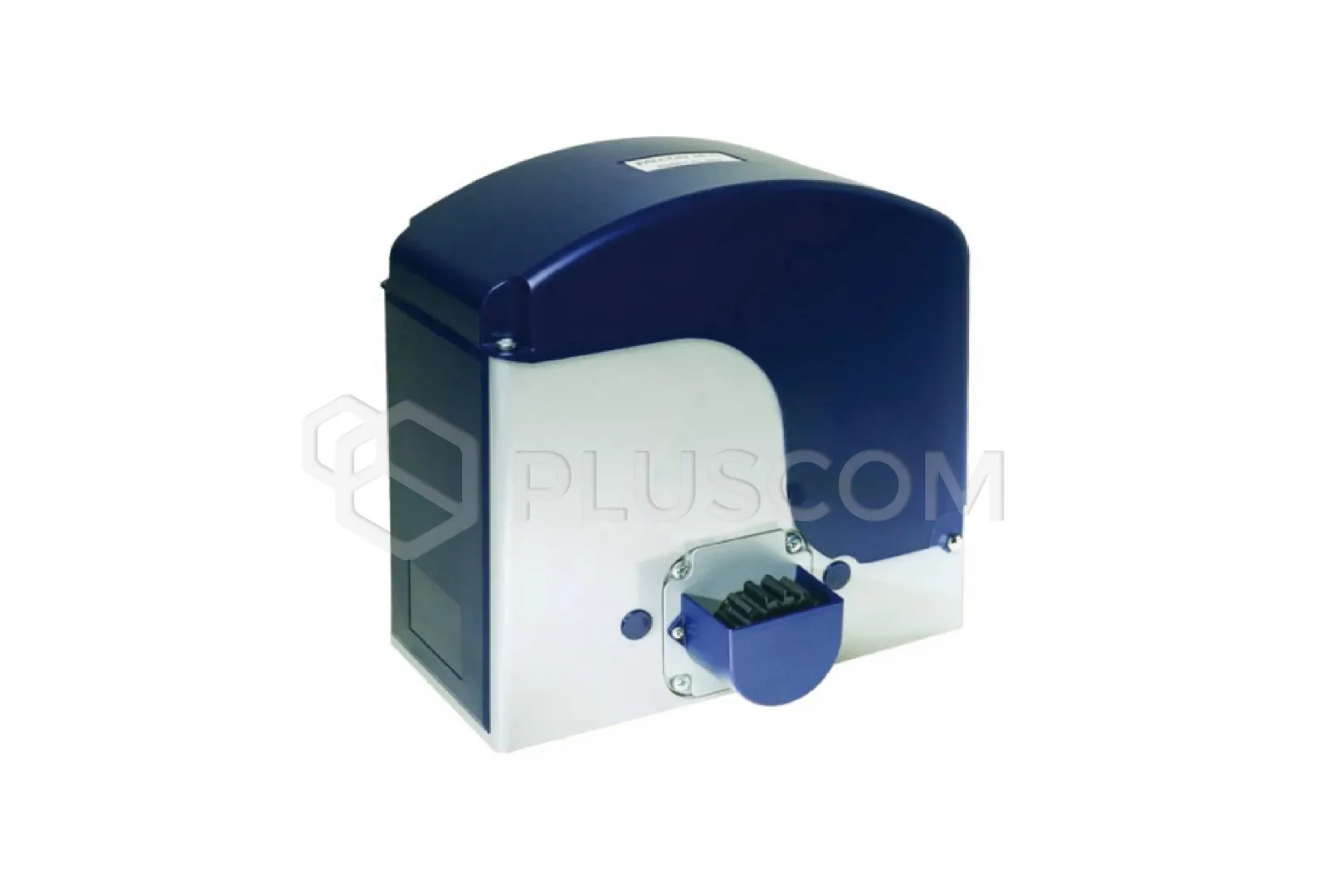

Faac Genius 6110022 FALCON M20 C 230V sliding gate operator

1260,43 EUR including 23.00% VAT
Product code: #27182
Manufacturer: GENIUS
  • Power supply: 230V AC
  • Max. leaf weight: 2000 kg
  • Feed speed: 10 m/min
  • Gear: Z16 mod.4
  • Degree of protection: IP 44
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Faac Genius 6110022 FALCON M20 C 230V drive for sliding gates


Self-locking drive - integrated Sprint 382 control unit. These models are equipped with magnetic limit switches.

The Falcon M20 drive is designed to automate sliding gates with a maximum length of 15 m and a weight of up to 2000 kg. The 230 V motors used in them provide greater operating power than in 12/24 V models, and their design based exclusively on metal gears and precise main shaft bearings guarantees reliable operation of any sliding gate for many years.

FEATURES:

  • Drive body made of die-cast aluminum powder-coated with polyester paint, with protective housing made of ABS.
  • Optional encoder installed to detect obstacles.
  • Durable drive gear.
  • Magnetic limit switches.
  • Electronic control unit with transparent plastic housing and external programming buttons.
  • Rotary panel for easy programming.
  • Motor body powder-coated with polyester paint.
  • User-friendly unlocking system protected by an individual key.

Technical data:

  • Power supply voltage: 230V
  • Motor: 230V
  • Rated power: 800 W
  • Current consumption: 3.5A
  • Thermal protection: 140°C
  • Capacitor: 20 μF
  • Max. torque: 45Nm
  • Thrust: 150 daN
  • Gear: Z16 mod. 4
  • Feed speed: 10 m/min
  • Frequency of use at 20°C: S3 - 40%
  • Ambient temperature during operation: -20°C / +50°C
  • Protection class: IP 44
  • Device weight: 15 kg
