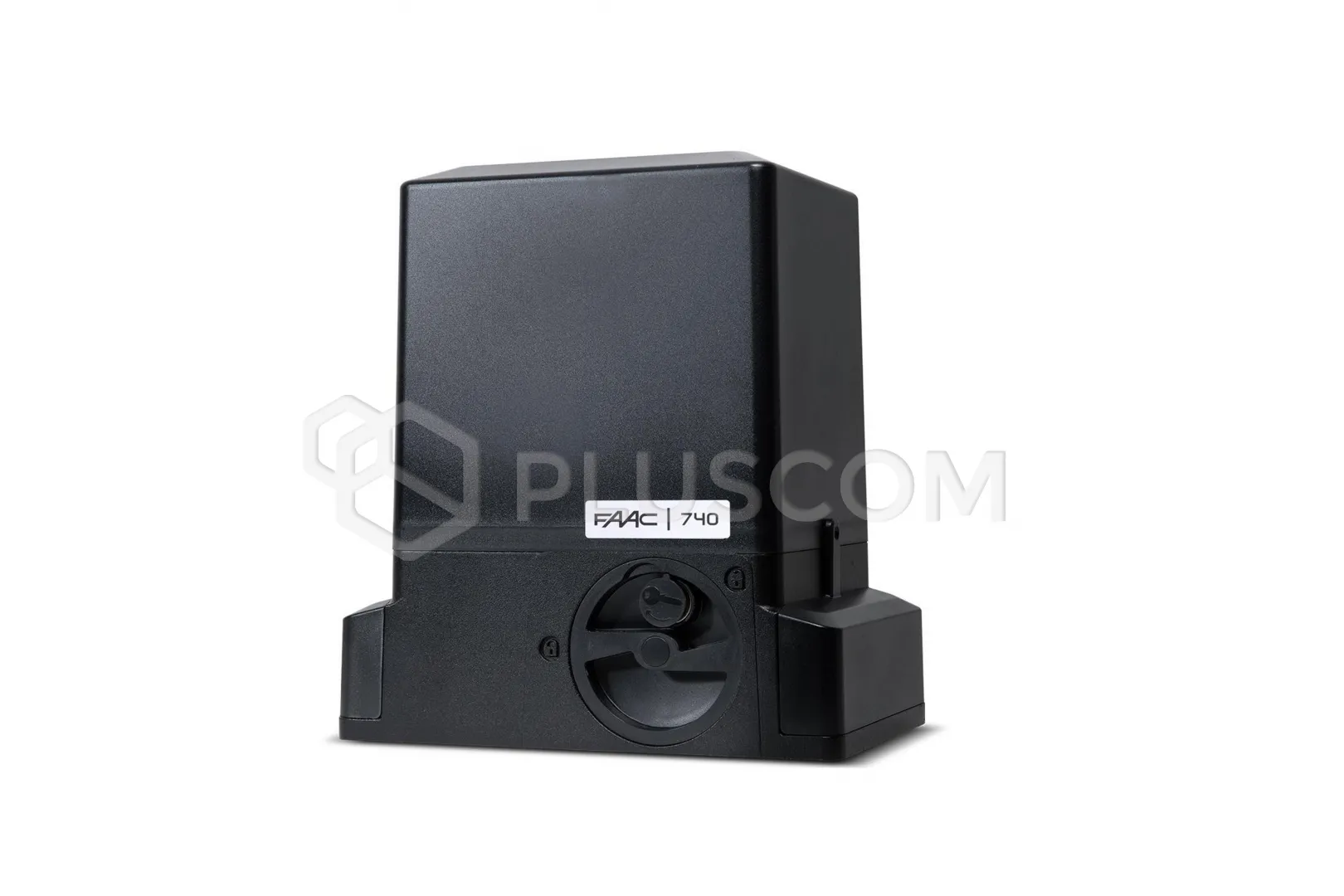

Faac DELTA 3 230V drive for gates up to 900kg

Faac Delta 3-741 drive for sliding gates up to900 kg

The DELTA 3-741 is an electromechanical operator designed for sliding gates. An irreversible reduction system ensures mechanical locking of the gate when the gearmotor is not working, eliminating the need to install an electric lock. A convenient manual release mechanism with a personalized key allows the gate to be operated in the event of a power outage or drive malfunction.

The operator is equipped with a mechanical limit switch with a spring lever, which controls the gate's stop when the profiled sheet metal mounted on the top of the rack activates the spring until the microswitch is activated. The sheet metal support can be mounted on all racks with a maximum width of 13 mm.

The key advantages of the drive and the kit include:

• quick and simple installation thanks to the built-in central unit (748D)
• self-locking drive - no electromagnetic lock required even when there is no power
• in the event of a power failure, a keyed unlocking device enables manual opening and closing of the gate
• simplified display programming
• magnetic limit switch

TECHNICAL DATA:

• Power supply: 230 V
• Maximum weight of the wing: 900 kg
• Power consumption: 1.5 A
• Power consumption: 350 W

• Gate travel speed: 12m / min.
• Gate drive: mechanical
• Gear rack type: Z16
• Thermal protection: 140ºC

• Dimensions: 295 x 225 x 325mm
• Weight: 16 kg
• Protection class: IP44
• Working temperature: -20ºC / + 55ºC
