Faac Alfa Sh Starter Set

1038,42 EUR including 23.00% VAT
Product code: #32818
Manufacturer: Faac
  • Maximum leaf length 1.8m
  • Maximum leaf weight 200kg
  • Power supply/Motor 230V/230V
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac XLED Flashing signal ligh Faac Mounting base for embedding Faac Encoder for 414 actuator

Faac ALFA 414 SHORT starter kit for swing gates up to 200kg

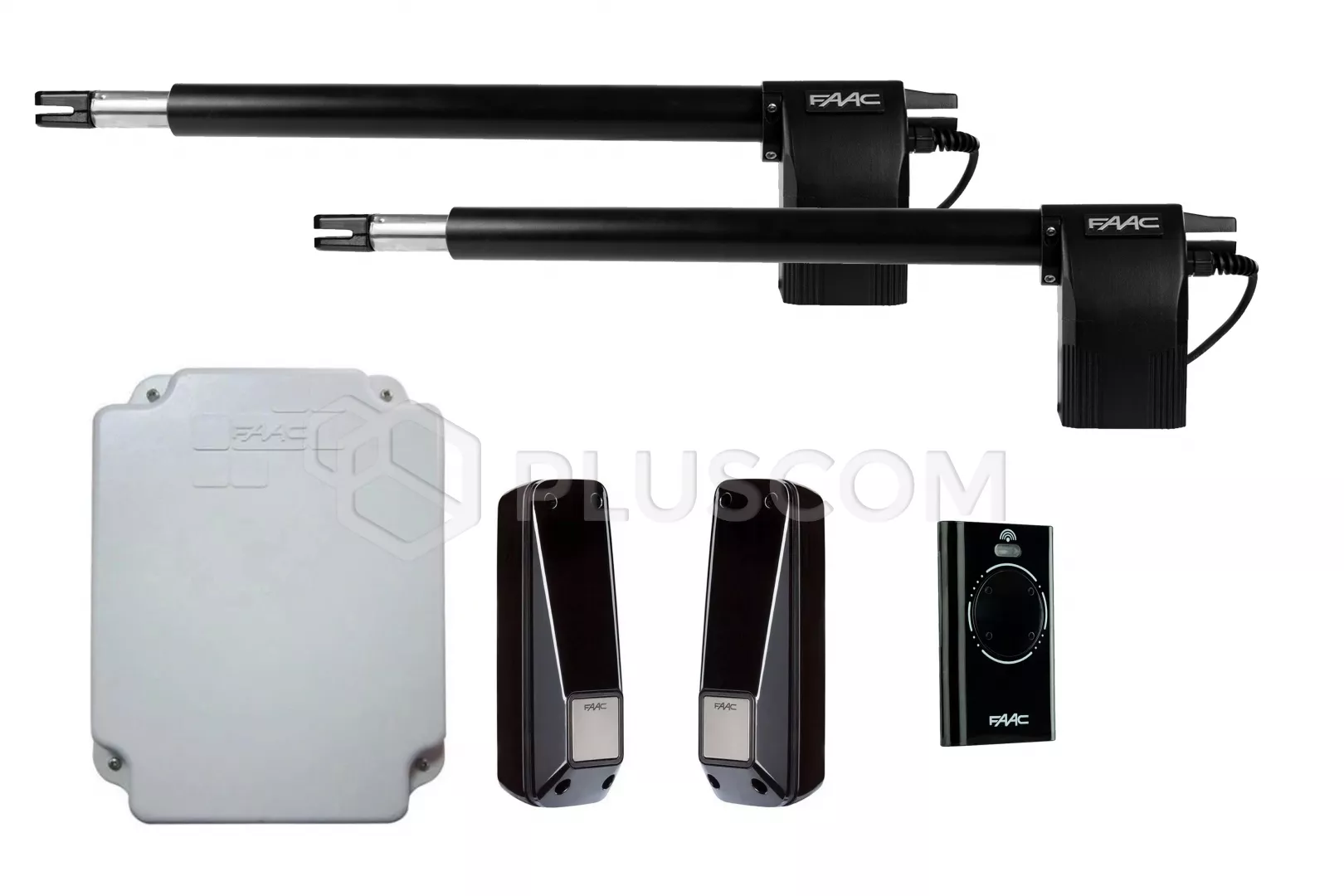

SET CONTAINS:
  • 2 x electromechanical actuator 414 Short
  • E045S control panel
  • XF 868 radio module (868MHz)
  • 1 x remote control XT4 868 SLH LR black (868MHz)
  • pair of XP 20B D photocells
  • assembly accessories
Faac Alfa Sh Starter Set

Faac Alfa Sh Starter Set
Set of two electromechanical actuators for home use. It is a self-locking drive that has a mechanical lock when the motor does not He's working. Once automated, the gate is locked in each stop position and therefore there is no need to use additional locks.

The most important advantages of the drive and set include:
  • quick and simple installation thanks to the built-in central unit (E045S)
  • suits to any type of posts
  • self-locking drive - does not require the use of an electromagnetic lock even in the event of a power failure
  • In the event of a power failure, a keyed unlocking device enables manual opening and closing of the gate
  • possibility to use optional magnetic absolute encoders (SAFEcoder) as additional anti-crush protection
TECHNICAL DATA:
  • Power supply: 230 V
  • Maximum leaf length: 1.8m
  • Maximum leaf weight: 200 kg
  • Max. power consumption: 280 W
  • Max. thrust force: 3500 N
  • Max. linear speed (piston): 16 mm/sec
  • Useful working stroke: 290 mm
  • Max. leaf opening angle: 110°
  • Ambient temperature during operation: -20°C ÷ + 55°C
  • Thermal protection: 140°C
  • Protection rating: IP44
  • Frequency of use: 18 cycles/hour
  • Max. leaf width: 1.8 m
  • Dimensions: 991x101x172 mm
