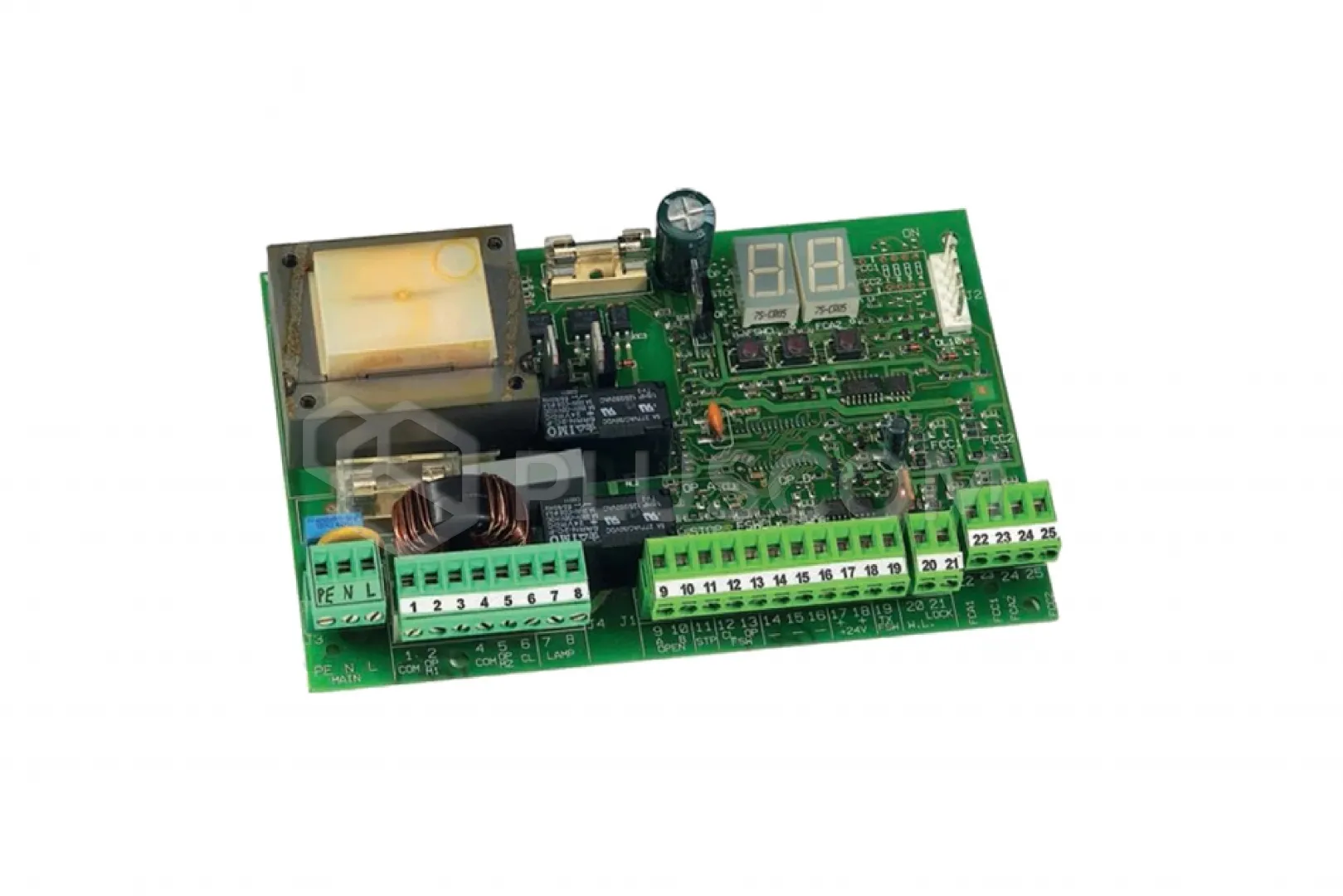

Faac 790917 455 D Control unit

Faac 790917 455 D Control Unit

FEATURES:

• Adjustment of the operating force separately for each actuator (50 levels)
• Braking of gate wings (gentle end of gate movement)
• Operation of the electric lock
• Very simple digital programming - buttons for selecting and programming parameter values, the digital display indicates the function and value
• LED indication (on the display) of the status of control inputs
• Support for total and partial opening of the gate
• Optional possibility of connecting amperometric sensors (stopping and reversing the direction after the wing encounters an obstacle) - GATEKODER

Technical data:

• Supply voltage: 230V ( +6% -10%) - 50 (60) Hz
• Power consumption (standby): 10W
• Max. motor power: 800W
• Accessory power supply: 24V DC - max. load 500mA
• Electric lock power supply: 12Vac (max. 15VA)
• Operating temperature range: -20°C to +55°C
• Fuses: F1=F5A, F2=T800mA
• Operating logic: Semi-automatic / Automatic / Safe / Semi-automatic step / Automatic step / Safe step / Semi-automatic B „Dead-man” C
• Operating time: Programmable (from 0 to 2 min.)
• Automatic gate closing: Programmable (from 0 to 4 min.)
• Closing delay: Programmable (from 0 to 4 min.)
• Opening delay: 2s (can be turned off)
• Actuator force: Independently programmable for each actuator (50 levels)
• Inputs: Full opening / wicket / STOP / limit switches / safety devices / power supply
• Outputs: Warning lamp / actuator power supply / accessories power supply / gate status indication / photo-test / electric lock power supply
• Control unit programming: LED display + buttons
• “Learning” functions: Memorizing a single or full cycle of operation with limiters and/or encoder
