Faac 787748 XR4 4-channel 433MHz radio receiver for RC remote controls

147,59 EUR including 23.00% VAT
Product code: #26985
Manufacturer: Faac
  • Power supply voltage: 12 ÷ 24 V AC/DC
  • Frequency: 433.92
  • Stored codes: 248 codes
  • Number of channels: 4
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 787456 4-channel remote control XT4 433 RC (black)

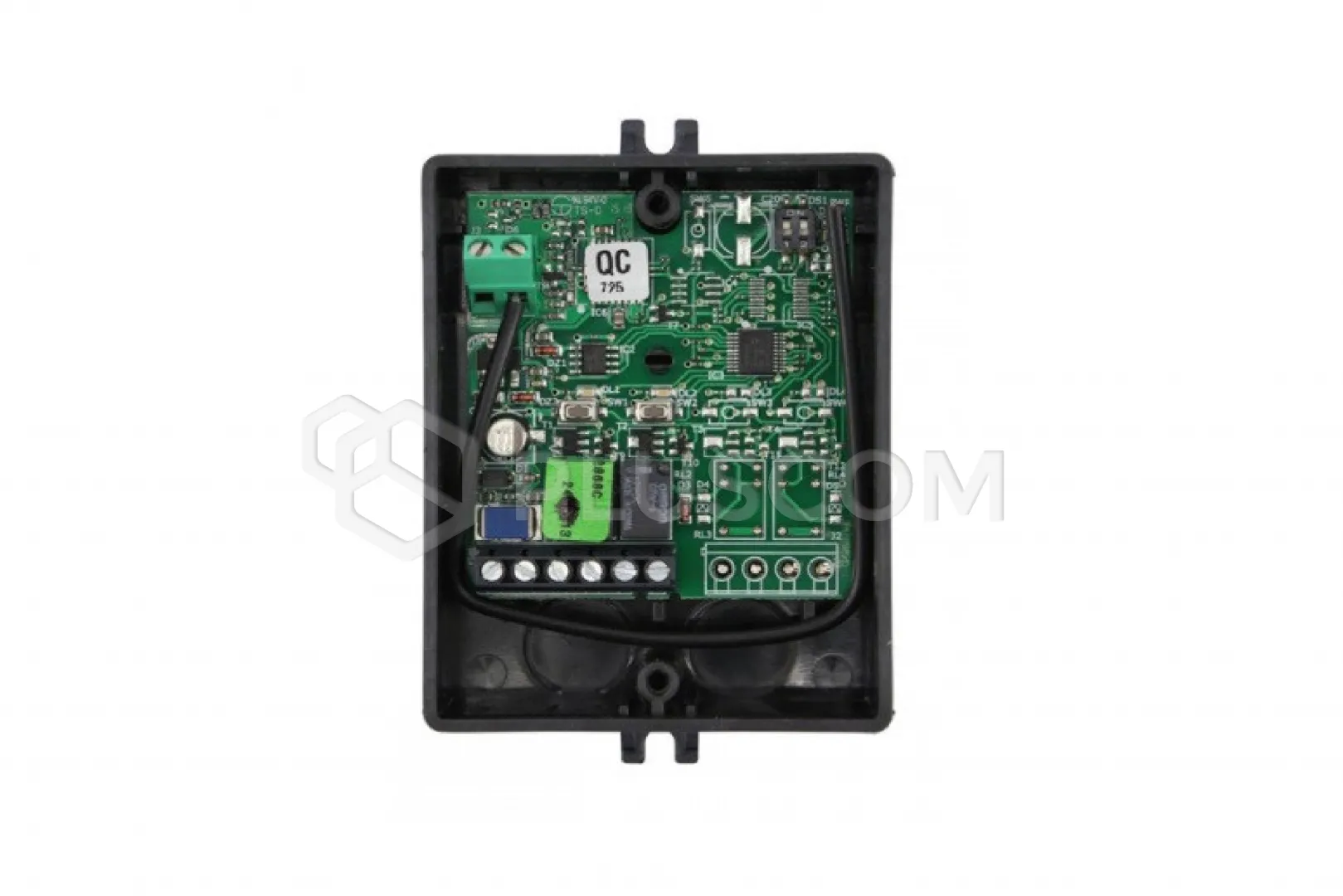

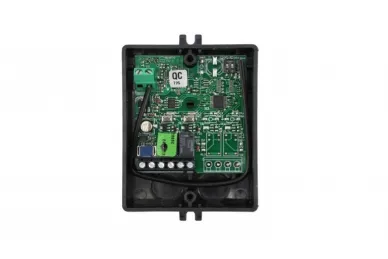

Faac 787748 XR4 4-channel 433MHz radio receiver for RC remotes


External radio receiver (system with built-in decoding in a dedicated housing for use with older models of FAAC control units - without quick connectors - or with third-party control units).

Technical data:

  • Power supply voltage: 12 ÷ 24 V AC/DC
  • Frequency: 433.92 ı 0.1 MHz
  • Current consumption: 100 mA
  • Decoding: DS-SLH-RC
  • Stored codes: 248 codes (for CH1 and CH2) / 248 codes (for CH3 and CH4)
  • Number of channels: 4
  • Relay outputs (NO): monostable (CH1/CH3), monostable/bistable (CH2), time (CH4)
  • Relay contact load capacity: 0.5 A / 120 VA
  • Protection class: IP44
  • Operating ambient temperature: -20°C ÷ +55°C
  • Dimensions (HxWxD): 90 x 70 x 32.5 mm
