Faac 787747 XR2 433 C External 2-channel receiver 433 MHz

102,13 EUR including 23.00% VAT
Product code: #26984
Manufacturer: Faac
  • Supply voltage: 12 ÷ 24 V AC/DC
  • Frequency: 433.42 MHz
  • Stored codes: 248 codes
  • Number of channels: 2
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 787456 4-channel remote control XT4 433 RC (black)

Faac 787747 XR2 433 C External 2-channel 433 MHz receiver

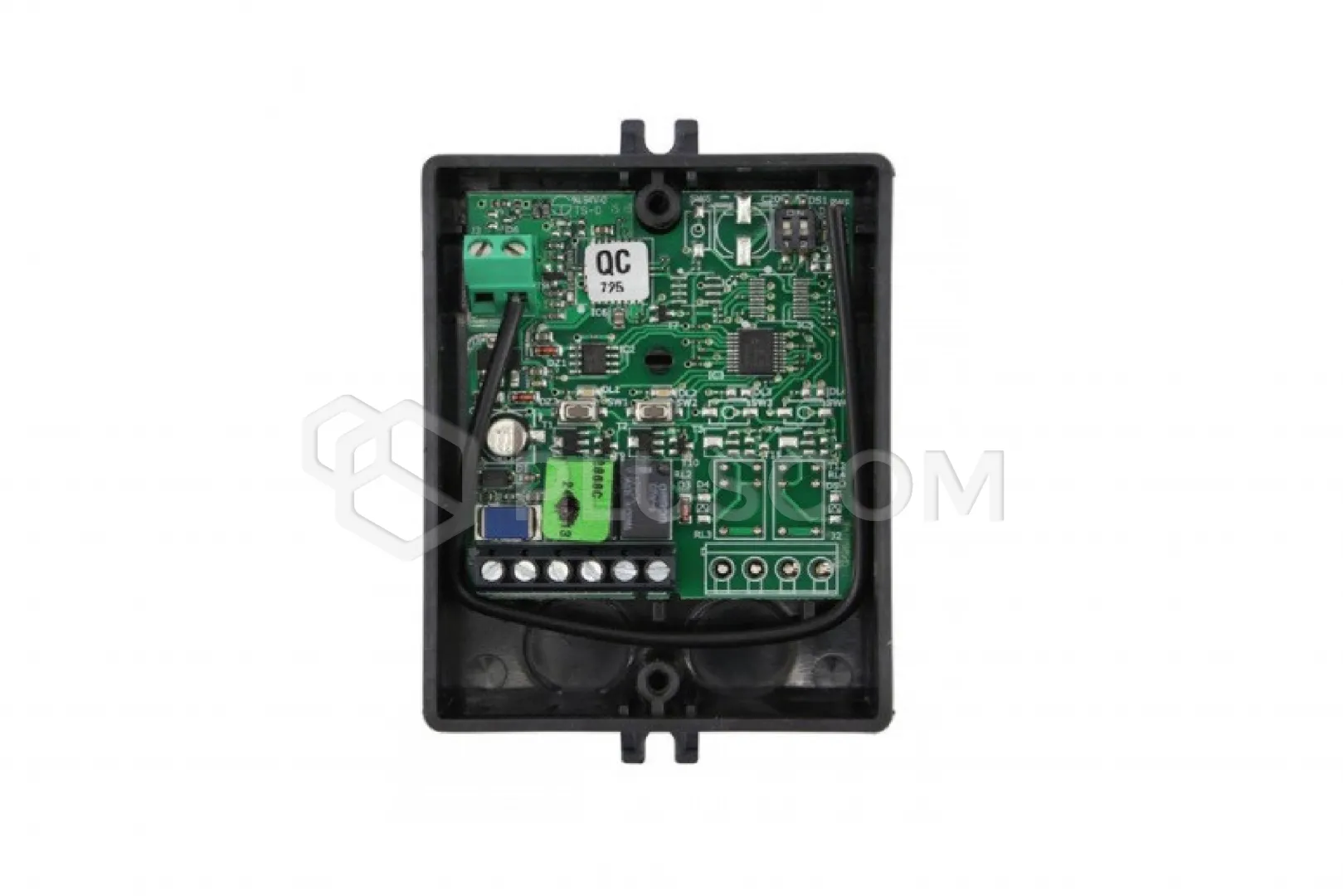

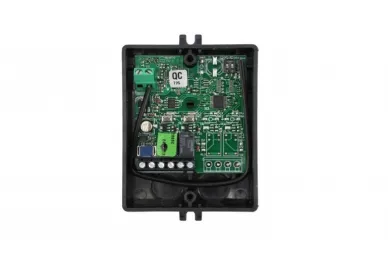

External radio receiver (system with built-in decoding in a dedicated housing for use with older models of FAAC control units - without quick connectors - or with third-party control units).

Technical data:

  • Supply voltage: 12 ÷ 24 V AC/DC
  • Frequency: 433.92 ı 0.1 MHz
  • Current consumption: 100 mA
  • Decoding: DS-SLH-RC
  • Stored codes: 248 codes (for CH1 and CH2)
  • Number of channels: 2
  • Relay outputs (NO): monostable (CH1), monostable/bistable (CH2)
  • Relay contact load capacity: 0.5 A / 120 VA
  • Protection class: IP44
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Dimensions (HxWxD): 90 x 70 x 32.5 mm
