Faac 787013 Receiver XR S 868

102,13 EUR including 23.00% VAT
Product code: #27048
Manufacturer: Faac
  • Supply voltage: BUS 2easy or 12 ÷ 24 V AC/DC
  • Frequency: 868MHz
  • Installation type: Surface mounted
  • Operating modes: 4 for each transmitter
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 105537 Aluminium profile XS30 2.5 m long (10 pcs.) Faac 105538 Set of 2.5m safety edges XS30 Faac 105532 XS55 rubber profile for edge strip, length 25 m Faac 105687 Aluminium profile for XS55 strip, 2.5 m long (10 pcs.) Faac 105531 Set of safety edges 2.5 m long XS55 Faac 105598 XS55 XSP 0.5 Connection Terminal Faac 105596 XS85 XSP 8k2 resistive terminal Faac 105594 XS55 XSP 8k2 Resistive terminal Faac 105593 Connecting terminal XS30 XSP 0.5 Faac 105592 XS30 XSP 8k2 resistive terminal

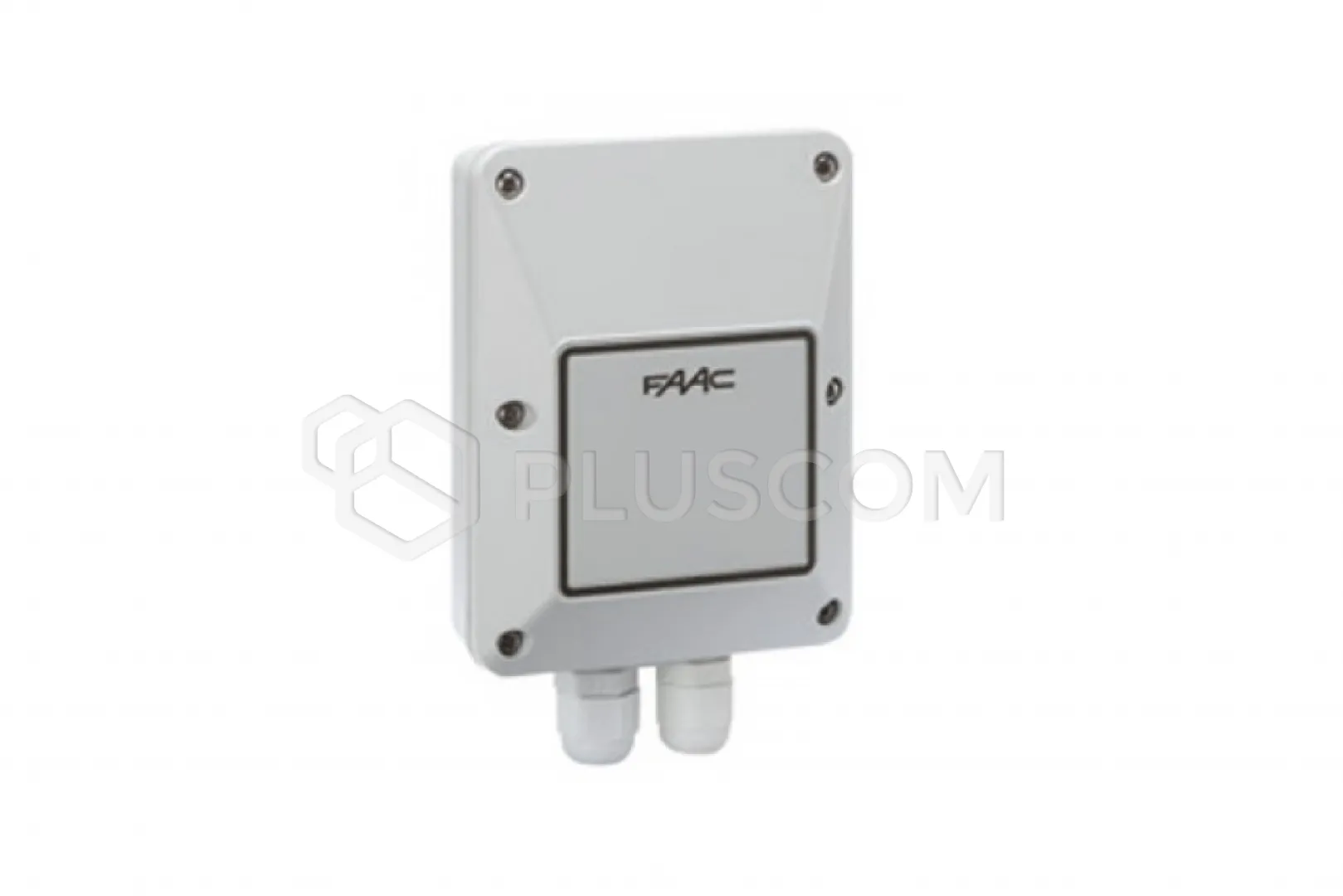

Faac 787013 XR S 868 Receiver


Radio system for safety edges and complies with the EN 13849-1 PL "d" standard and category 2 of the EN 12978 standard.

The radio system consists of an XRS 868 radio receiver that can connect to XTS 868 transmitters, to which up to two 8.2 kΩ resistive edges or NC (break) contact edges can be connected.

Each XRS 868 radio receiver can connect to a maximum of 6 XTS868 transmitters, i.e. allowing the automation system to be protected by up to 12 safety edges. The XRS 868 receiver enables cable connection to standard control units equipped with NC (Normally Closed) or 8.2 kΩ (Resistive) type safety inputs or to FAAC control units equipped with the 2EASY bus, using only a two-wire cable.

Technical data:

  • Power supply voltage: BUS 2easy or 12 ÷ 24 V AC/DC
  • Installation type: Surface-mounted
  • Frequency: 868 MHz
  • Automatic frequency regulation: On 4 channels
  • Current consumption: 54 mA
  • Operating modes: 4 for each transmitter
  • Max. number of transmitters: 6 (XTS 868)
  • Terminal board inputs: Power/2Easy, test (fail-safe)
  • Terminal board outputs: Relay 1 (NC or 8K2 break) - Relay 2 (NC or 8K2 break) - Relay 1+2 (NC NC and NO) - Battery charge level
  • Protection class: IP55
  • Device dimensions (LxWxH): 84 x 36.5 x 112 mm
  • Ambient temperature during operation: -20°C ÷ +55°C
