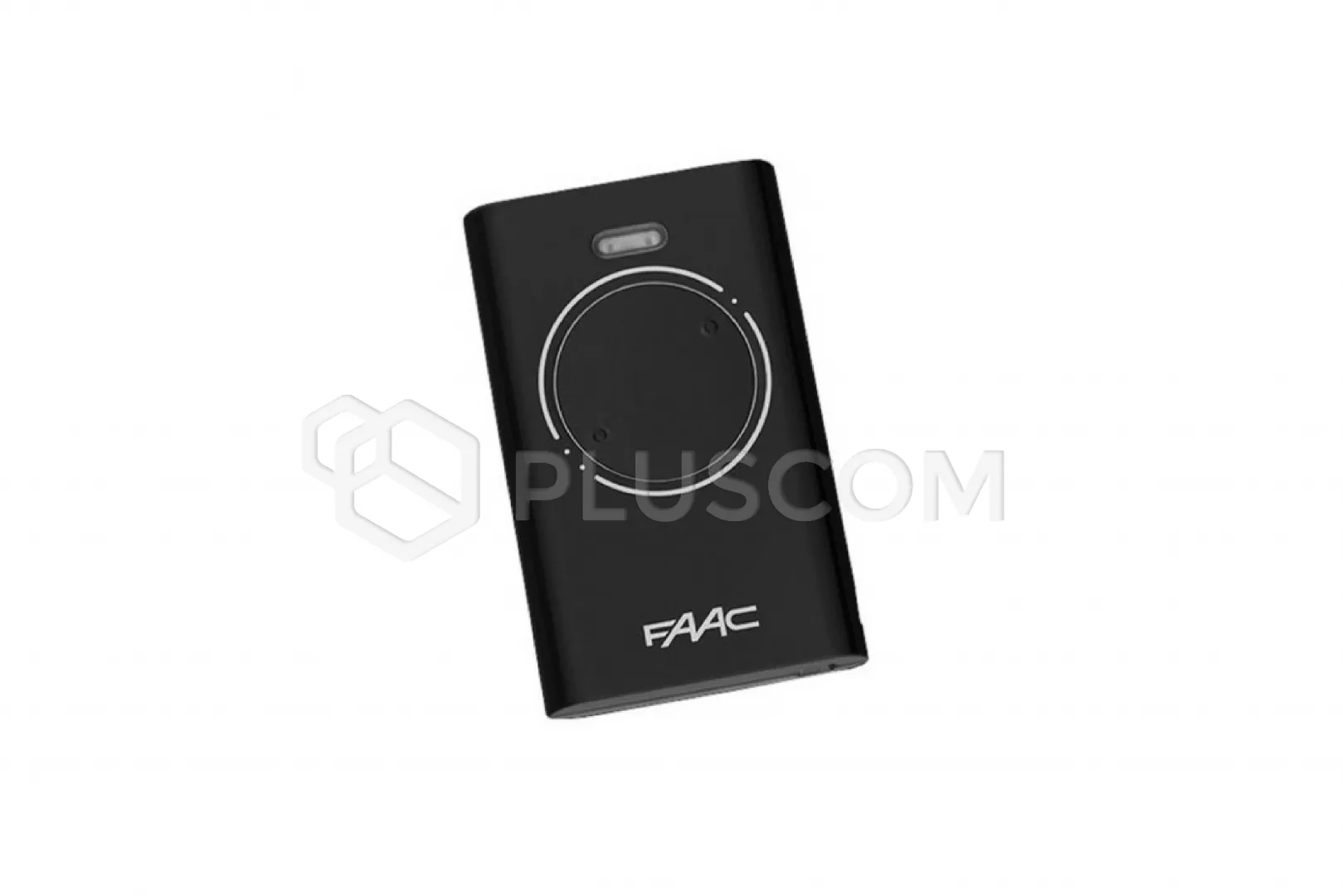

Faac 7870091 Remote control for gate faac XT2 868 SLH LR black 2-channel

Faac 7870091 Faac XT2 868 SLH LR black 2-channel gate remote control

FAAC XT2 868 SLH LR - 2-channel remote control by FAAC, dynamically changing code, frequency 868.35MHz. SLH LR encoding type FAAC patent. With battery included.

SLH = SELF LEARNING HOPPING: the code changes each time the transmitter is used. The algorithm recognizes and confirms the signal only from transmitters encoded by the receiver. Advantages: cloning is practically impossible. Encoded transmitters can be replicated even remotely from the receiver using the patented FAAC SELF LEARNING memorization system (from transmitter to transmitter) by selecting the appropriate combination of buttons.

LR = LONG RANGE (long range): the transmitters can cover a distance almost twice the actual one thanks to an additional patented by FAAC functionality that increases their performance, each press of the SLH LONG RANGE transmitter buttons triggers real-time recognition of the surroundings, (hand position, presence of electrical noise, etc.) and automatically reconfigures the electronics to maximize the signal strength. Fully compatible with the previous version of SLH.

The radio signal emitted by the remote control can be received using:

• Frequency module associated with electronic control units with built-in OMNIDEC decoding
• Coupled receiver for FAAC control units or external applications with a unit with interface relay
• Multi-channel receiver decoder cards associated with the radio signal
• External receiver with dedicated housing and dedicated OMNIDEC decoding (accepts DS-SLH-RC systems)

Technical data:

• Parameters model: XT2 868 SLH LR
• Number of channels: 2
• Frequency: 868 MHz
• Code: variable
• Battery type: CR2032
• Dimensions (H/W/D): 63x40x10 mm
• LR version (long range): range increased by 50%
• Battery and instructions included
