Faac 7851061 Wall/flush-mounted photocells XP 30B INOX

180,36 EUR including 22.00% VAT
Product code: #27027
Manufacturer: Faac
  • Supply voltage: Via BUS (2easy), 24 V DC
  • Nominal range: 30 m
  • Horizontal adjustment angle: Automatic
  • Installation type: Surface or column mounted
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

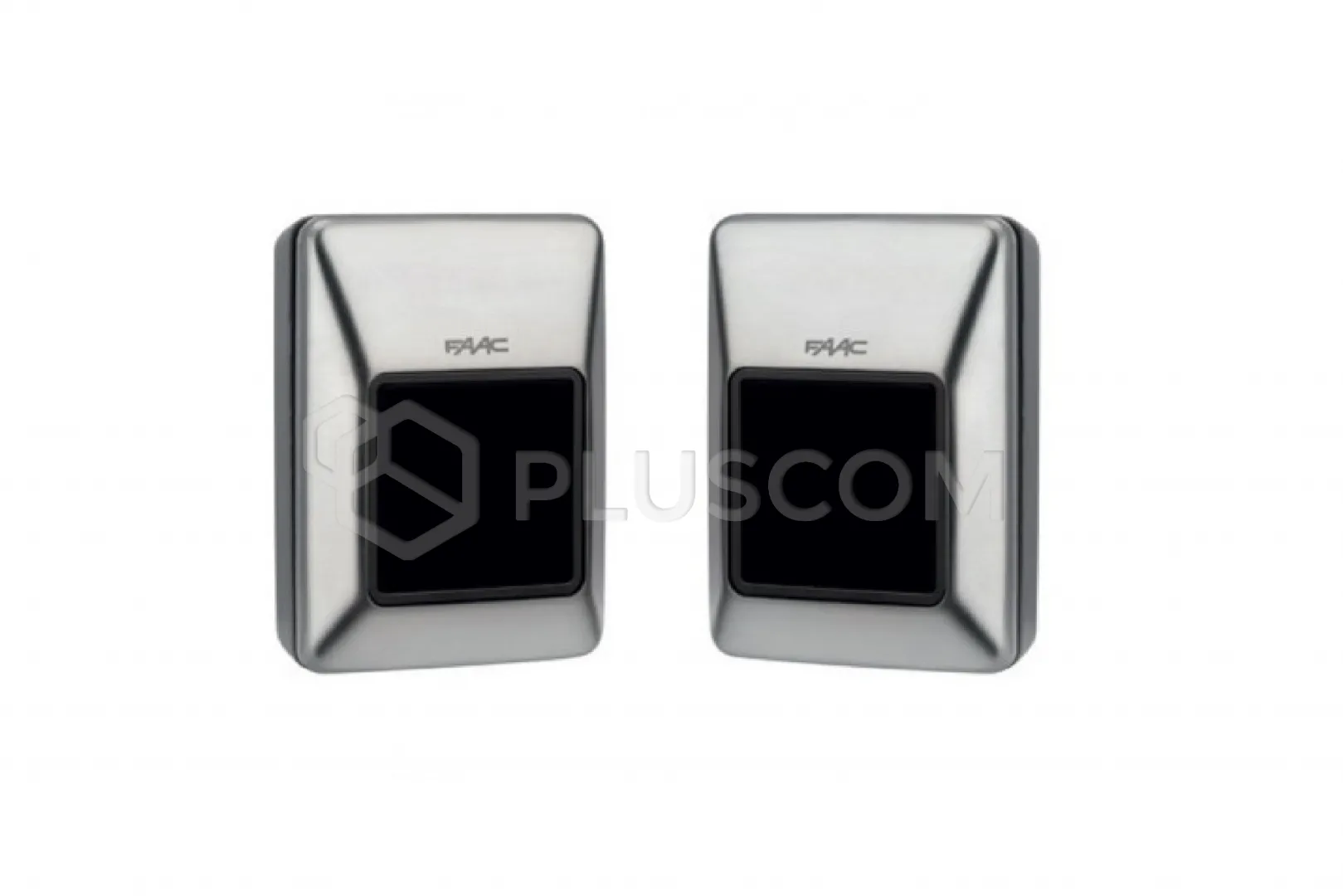

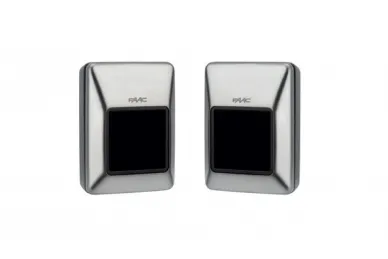

Faac 7851061 Photocells wall/flush-mounted XP 30B INOX


A set of photocells (transmitter + receiver) in two-wire BUS 2Easy technology with a range of up to 30 m.

Technical data:

  • Power supply voltage: Via BUS (2easy), 24 V DC
  • Nominal range: 30 m
  • Installation: Surface or column
  • Degree of protection: IP54
  • Horizontal adjustment angle: Automatic
  • Self-adjustment angle: +/- 7° (20 m) +/- 13.5° (5 m)
  • Device dimensions (HxWxD): 55.4 x 21.5 x 78.4 mm
  • Current consumption: Rx (25 mA) + Tx (15 mA)
  • Contact type: NO / NC
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Possibility to install up to 16 pairs of photocells in one automation system
