Faac 785106 Wall/flush-mounted photocells XP 30B

122,05 EUR including 23.00% VAT
Product code: #27026
Manufacturer: Faac
  • Supply voltage: Via BUS (2easy), 24 V DC
  • Nominal range: 30 m
  • Horizontal adjustment angle: Automatic
  • Installation type: Surface or column mounted

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 737100 Column foundation base Faac 401080 High double column H1000 Faac 401070 H500 low column Faac 401065 Adapter for flush or column mounting XP30 XTR XKP Faac 401064 Adapter for surface mounting XB30 / XB30B

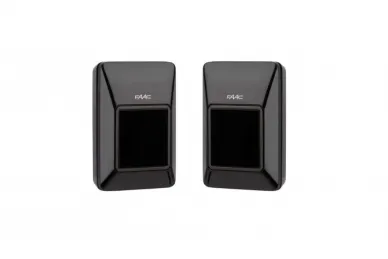

Faac 785106 Photocells wall/flush-mounted XP 30B


A set of photocells (transmitter + receiver) in BUS 2Easy two-wire technology with a range of up to 30 m.

Technical data:

  • Power supply voltage: Via BUS (2easy), 24 V DC
  • Nominal range: 30 m
  • Installation: Surface or column
  • Degree of protection: IP54
  • Horizontal adjustment angle: Automatic
  • Self-adjustment angle: +/- 7° (20 m) +/- 13.5° (5 m)
  • Device dimensions (HxWxD): 55.4 x 21.5 x 78.4 mm
  • Current consumption: Rx (25 mA) + Tx (15 mA)
  • Contact type: NO / NC
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Possibility to install up to 16 pairs of photocells in one automation system
