Faac 7851051 Wall/flush-mounted photocells XP 30 INOX

171,88 EUR including 23.00% VAT
Product code: #27025
Manufacturer: Faac
  • Supply voltage: 24V AC/DC
  • Nominal range: 30 m
  • Horizontal adjustment angle: Automatic
  • Installation type: Surface or column mounted
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 401064 Adapter for surface mounting XB30 / XB30B Faac 737100 Column foundation base Faac 401080 High double column H1000 Faac 401070 H500 low column Faac 401065 Adapter for flush or column mounting XP30 XTR XKP

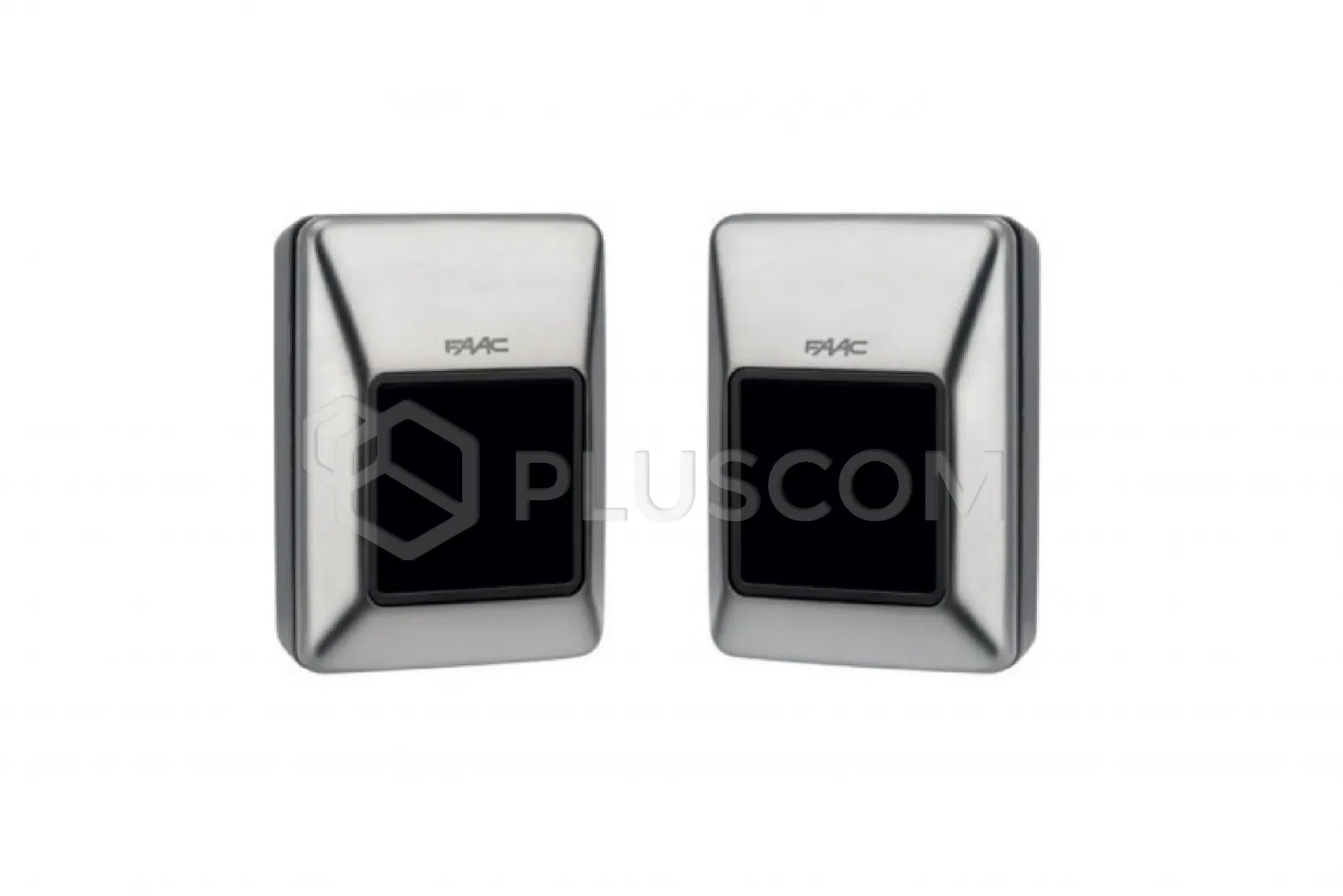

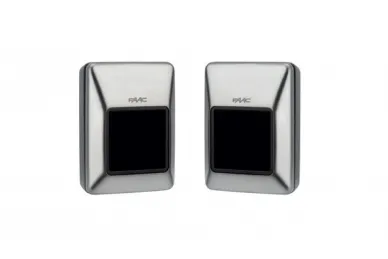

Faac 7851051 Photocells wall/flush-mounted XP 30 INOX


A set of photocells (transmitter + receiver) with the possibility of wall or flush-mounting with a range of up to 30 m.

Technical data:

  • Power supply voltage: 24 V AC/DC
  • Nominal range: 30 m
  • Installation: Surface or column
  • Degree of protection: IP54
  • Horizontal adjustment angle: Automatic
  • Self-adjustment angle: +/- 7° (20 m) +/- 13.5° (5 m)
  • Device dimensions (HxWxD): 55.4 x 21.5 x 78.4 mm
  • Current consumption: Rx (30 mA) + Tx (20 mA)
  • Contact type: NO / NC
  • Maximum contact load: 60 VA / 24 W
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Possibility to install up to 4 pairs of photocells in one automation system
