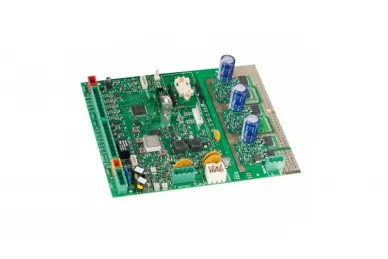

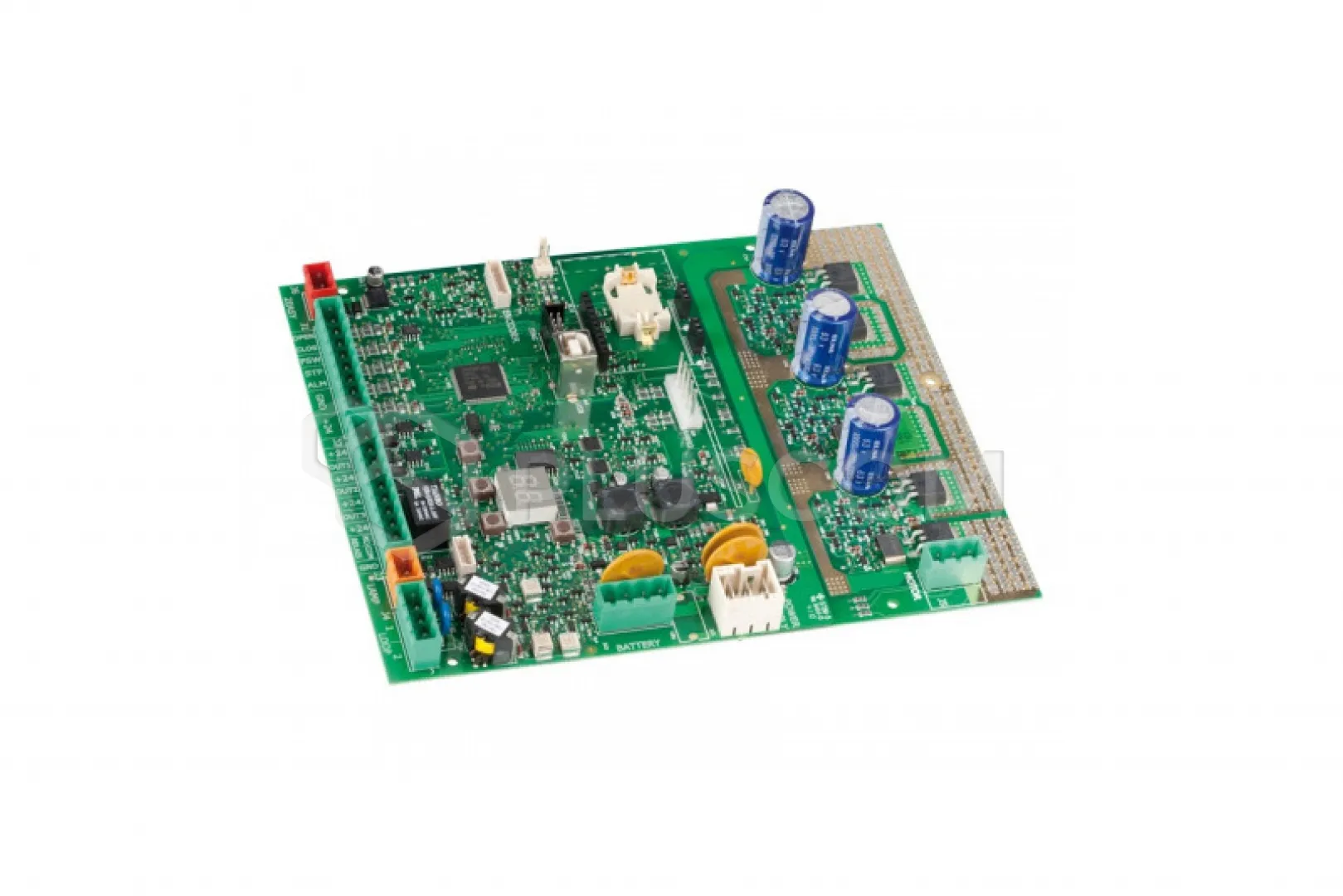

Faac 63003452 E680S Control unit for barrier

Faac 63003452 E680S Control unit for barrier

Technical data:

• Power supply voltage: 100 ÷ 240 V AC 50(60) Hz
• Standby power: 7 W
• Max. motor power: 240 W
• Max. output load: 800 mA
• Accessories power supply: 24 V DC
• Programming: 3 buttons (+,-,F) and display
• Operating logic: Semi-automatic (E), automatic (A), automatic 1 (A1), parking (P), automatic parking (PA), housing estate (Cn), automatic housing estate (CA), dead-man (C), non-standard (Cu)
• Programmable functions: Operating logic, pause time, opening/closing force, opening/closing speed, loop 1 and loop 2, pre-flashing of warning light, operating time, anti-crush sensitivity, lighting output, fail-safe, cycle counter, maintenance request
• Operating time: Programmable (from 0 to 4.1 min)
• Pause time: Programmable (from 0 to 4.1 min)
• Thrust: Programmable in 50 levels
• Speed ​​control: Programmable in 50 levels
• Inputs: Loop 1, loop 2, opening, closing, safety during closing, emergency stop, emergency opening, emergency power supply, BUS 2easy, main power supply (36 V DC)
• Outputs: Warning lamp, engine, accessory power supply, 4 programmable outputs
• Quick connectors: Encoder, arm break sensor, built-in semaphore lighting (option), USB (for firmware update)
• Built-in loop detector, 2 independent channels: Automatic real-time calibration, sensitivity independent of loop geometry, loop frequency adjustment, busy loop message with LED visualization, loop status addressable on programmable outputs
• Fuses: Self-resetting
• Ambient temperature during operation: -20°C ÷ +55°C
