Faac 620 STD Barrier Kit with 4m Rectangular Arm, right

3524,26 EUR including 23.00% VAT
Product code: #43869
Manufacturer: Faac

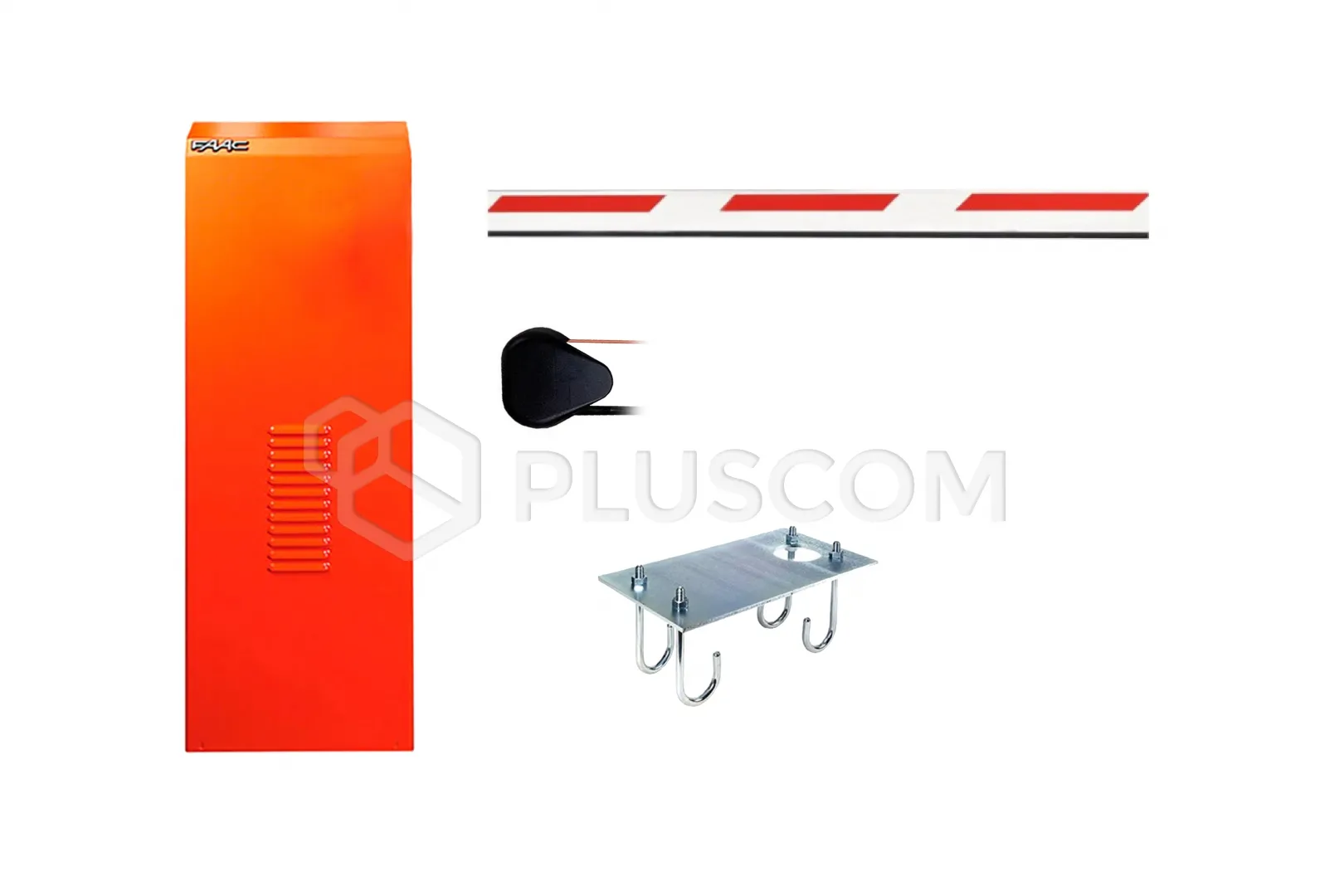

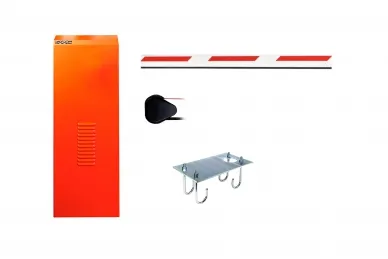

  • KIT COMPOSITION:
  • 1046488 - Barrier 620 STD for 4m arm, right
  • 428090 - Standard rectangular arm 3815mm
  • 428342 - Mounts for rectangular or oval arms
  • 490058 - Mounting plate
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 428137 Barrier arm break kit Faac 401066 ANTI-VANDAL valve for barrier Faac 428806 Adjustable boom arm support Faac 390993 LED lighting strip 12 m for barrier Faac 390992 S/L boom lighting kit for barrier Faac 428805 Adjustable barrier arm support Faac 428441 2m apron for barrier arm Faac 390184 LED Lighting Adapter for Rectangular Arm Faac 713002 Release key 402 Faac 428163 Oval swing arm mounting bracket

Faac 620 STD Barrier Kit with 4m Rectangular Arm, right


The kit includes:
Faac 620 STD Barrier Kit with 4m Rectangular Arm, right

Faac 620 STD Barrier Kit with 4m Rectangular Arm, right

Central barrier unit with an opening and closing lock and a 230V power supply. It has a built-in control unit, a spring, and a built-in two-channel loop detector.
The 620 STD barrier is an ideal solution for high-traffic areas. It features a patented electronic system for releasing and reporting the barrier's status to traffic management devices.

FEATURES:
  • Hydraulic drive with open and close locking
  • Barrier statuses can be transmitted to traffic control devices
  • Automatic, semi-automatic, parking, residential, and home applications
  • External release with a triangular key
  • BUS technology
  • New oval arm with lightweight support
The set includes a standard 3815mm rectangular arm, mountings for rectangular or oval arms, and a mounting plate.

TECHNICAL DATA:

  • Power supply voltage: 230 V (+6% - 10%) 50 (60) Hz
  • Electric drive: single-phase, bidirectional
  • Power consumption: 220 W
  • Current consumption: 1 A
  • Motor speed: 1400 - 2800 rpm
  • Pump capacity: 1.5-2 l/min
  • Thermal protection on the winding: 120°C
  • Effective torque: 0 to 100 Nm / 0 to 80 Nm
  • Arm braking: electronic, adjustable
  • Capacitor: 8uF 400V
  • Open time: 2 s
  • Use frequency: continuous operation
  • Oil type: FAAC HP OIL
  • Operating temperature range: -20°C to +55°C
  • Barrier body machining: 100 microns Resin-zinc, anti-corrosion protection
  • Paint: Polyester RAL 2004
  • Protection Rating: IP 44
  • Cooling: Forced air
  • Arm type: rectangular - rectangular articulated - oval - oval pivoting
  • Dimensions: 350 x 170 x 1080 mm
  • Weight: 73 kg
Download
User manual 1.39 MB
