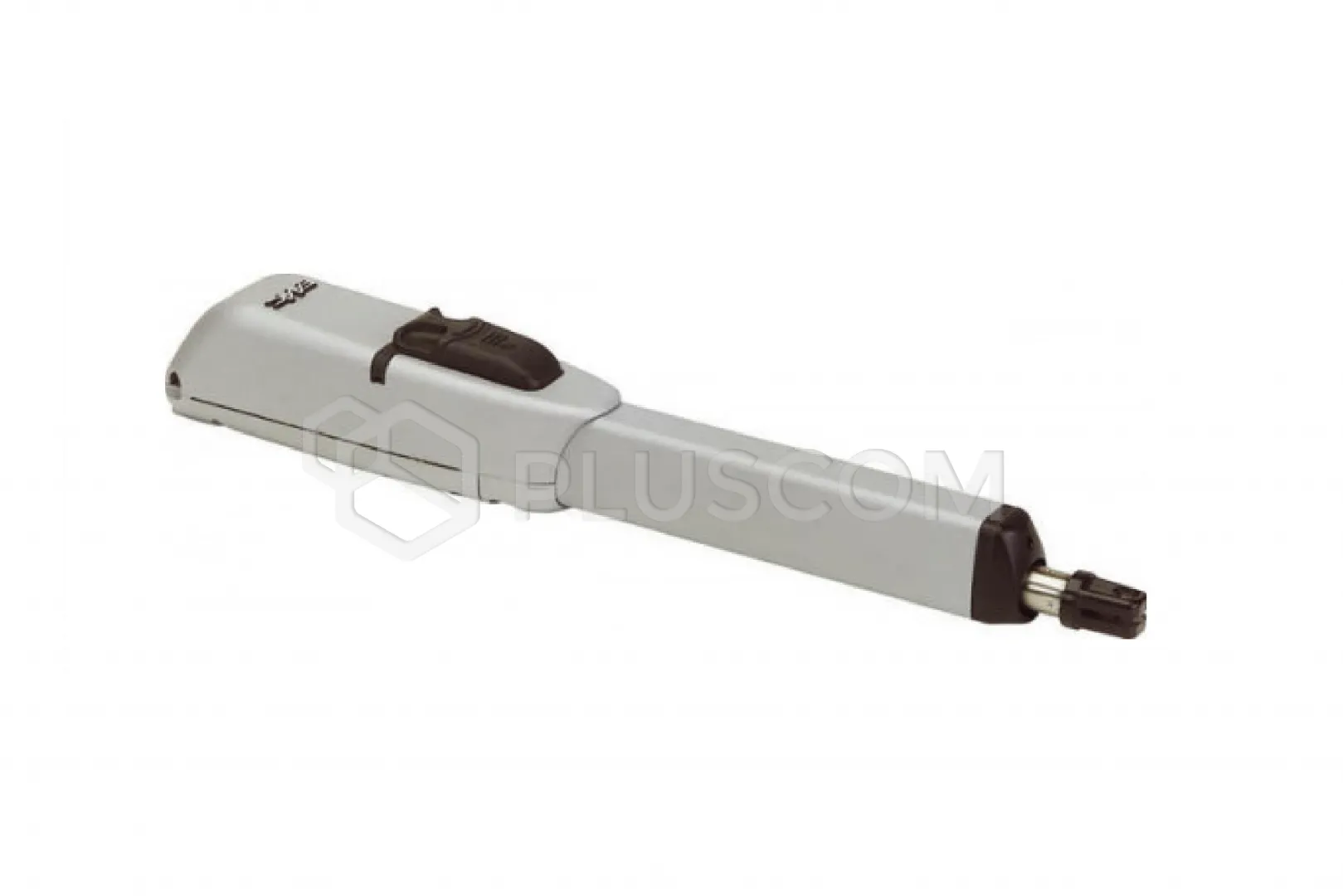

Faac 415 LLS 230V Operator for swing gates up to 4m

Product code: #43828
Manufacturer: Faac
  • Leaf length up to 4m
  • Motor power supply: 230V
  • Motor type: asynchronous, single-phase
  • Usable working stroke 400 mm
  • Max. thrust force: 3000 N
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Faac 415 LLS 230V Operator for swing gates up to 4m


Electromechanical drive used for swing gates, equipped with opening and closing limit switches. In case of failure or not If the drive operates correctly, the gate leaf and the system are blocked security control and unlocking system allows manual operation of the gate.

FEATURES:
  • aluminum body protected with a double protective coating, guaranteeing higher resistance to weather conditions
  • in the event of e.g. power failure, simple unlocking mechanism gearbox (secured with a personalized key) allows operation manual gate
  • cables (with chokes) run horizontally, which allows for mounting the drive very close to the earth's surface
Technical data:
  • Power supply: 230V
  • Power consumption: 300W
  • Current consumption: 1.3A
  • Speed: 1.6 cm/s
  • Thrust force: 3000N
  • Frequency of use: S3 - 30%
  • Protection class: IP 54
  • Operating temperature range: -20°C to +55°C
  • Weight: 8kg
  • Dimensions: 940x148x105mm
Download
User manual 2.36 MB
