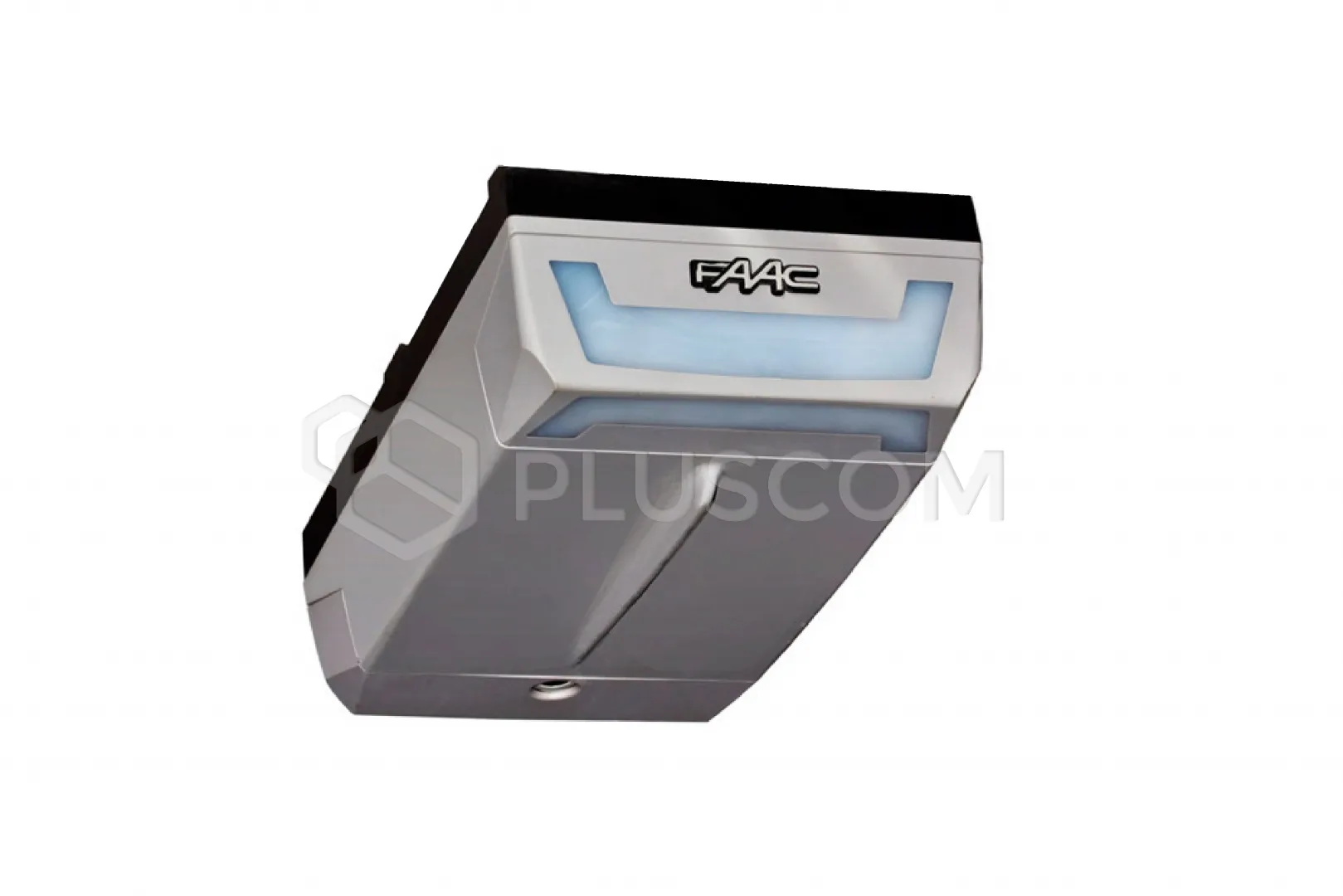

Faac 11060201 D700 HS Garage door operator 24V

360,41 EUR including 22.00% VAT
Product code: #26847
Manufacturer: Faac
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Encoder: Electronic
  • Max. carriage speed: 12 m/min
  • Control unit: E700HS built-in
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Double rail with 3000mm strip Faac Single rail with 4200mm strip Faac Single rail with 3600mm strip Faac Single rail with 3000mm strip Faac Single rail with 2400mm strip Faac Double rail with 4200mm strip Faac XBAT 24 emergency battery Faac 424591001-10 External unlocking mechanism Faac 63002425 Control unit spare parts D700 Faac 390768 Profiled arm for sectional doors

Faac 11060201 D700 HS Garage door operator 24V


24V electromechanical drive for residential tilting and sectional garage doors.

FEATURES:

  • Self-locking anti-theft mechanism: no additional locks required
  • Double stabilized release (patented)
  • Quick, easy installation thanks to the pre-assembled rail and tool-free drive installation using the connector
  • Chain/belt transmission
  • Adjustable speed limiter with electronic slow-down
Included: electromechanical drive with control unit and temporary garage interior lighting, mounting accessories and internal release mechanism.

Rail not included.

Technical data:

  • Power supply voltage - 0-240 V AC 50/60 Hz
  • Engine type - 24 V DC frontal
  • Maximum power consumption - 440 W
  • Maximum thrust force - 700 N
  • Min. lintel height - 35 mm
  • Interior lighting - 230 V - 40 W (max)
  • Lighting time - 120 sec.
  • Max. carriage speed - 12 m/min
  • Carriage speed when slowed down - 2.5 m/min
  • Electronic encoder
  • Noise level - 45 dbA
  • Ambient temperature during operation - -20 °C ÷ +55 °C
  • Protection class - For indoor use only (IP20)
  • Weight of the device - 6.3 kg
  • Dimensions (LxWxH) - 360x200x145 mm
  • Max. door size (WxH) - See table RAILS
  • Control unit - E700HS built-in
  • Use frequency - 100%
