Faac 11060101 D1000 Garage door operator 24V

447,44 EUR including 23.00% VAT
Product code: #26848
Manufacturer: Faac
  • Zasilanie: 230V AC
  • Engine power supply: 24V
  • Encoder: Electronic
  • Max. carriage speed: 6.6 m/min
  • Control unit: E1000 built-in
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Single rail with 4200mm strip Faac Single rail with 3600mm strip Faac Single rail with 3000mm strip Faac 390548 GDA 2400 adapter for swing gates with counterweight Faac Single rail with 2400mm strip Faac Double rail with 4200mm strip Faac XBAT 24 emergency battery Faac 424591001-10 External unlocking mechanism Faac 2024025 E1000 Control unit for D1000 drive Faac 390768 Profiled arm for sectional doors

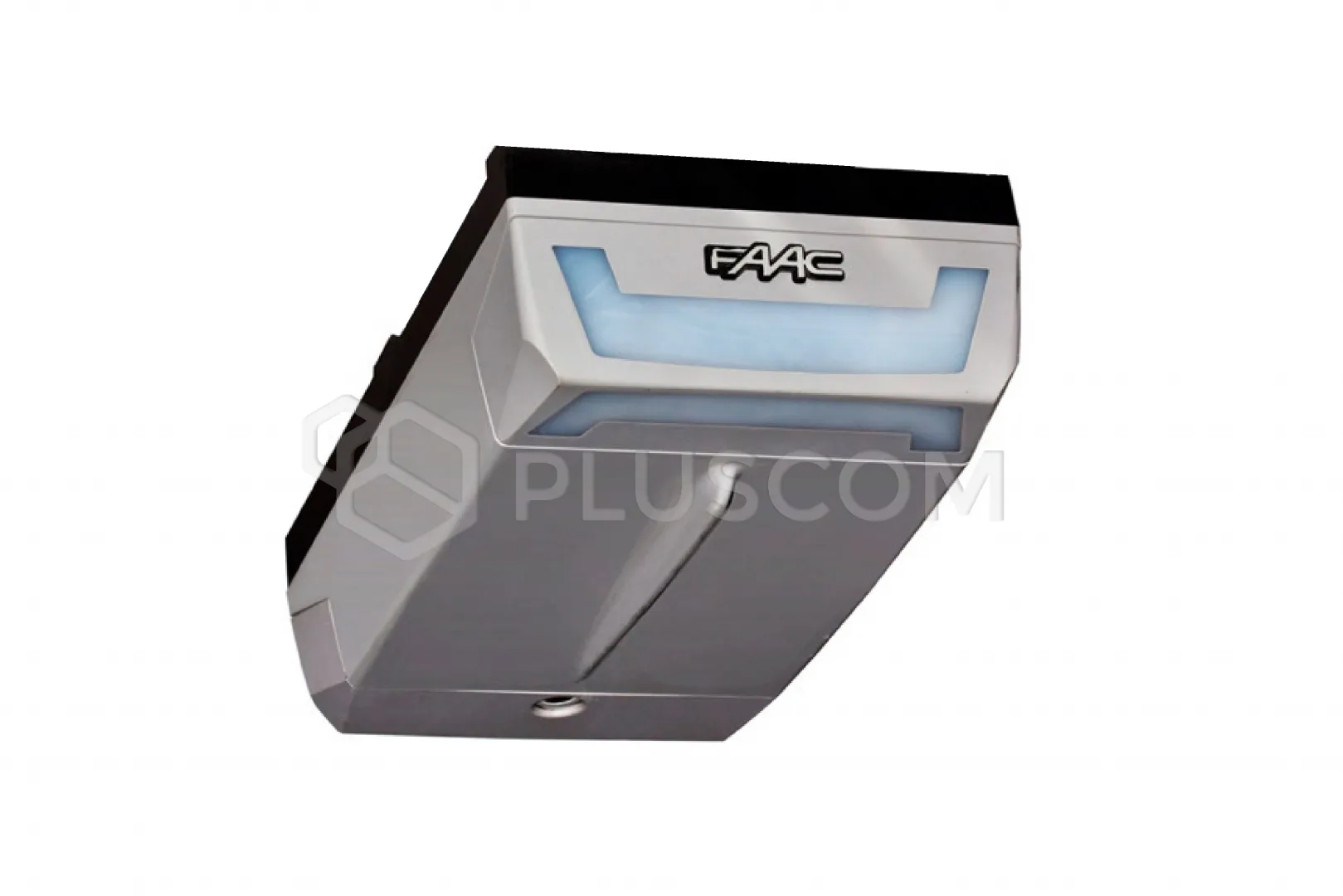

Faac 11060101 D1000 24V Garage Door Drive


24V electromechanical drive for residential tilting and sectional garage doors.

FEATURES:

  • Self-locking anti-theft mechanism: no additional locks required
  • Double stabilized release (patented)
  • Quick, easy installation thanks to the pre-assembled rail and tool-free drive installation using the connector
  • Chain/belt transmission
  • Adjustable speed limiter with electronic slow-down
Included: electromechanical drive with control unit and temporary garage interior lighting, mounting accessories and internal release mechanism.

Rail not included.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Brushed 24 V DC
  • Maximum power consumption - 350 W
  • Maximum pulling force - 1000 N
  • Min. lintel height - 35 mm
  • Interior lighting - 230 V - 40 W (max)
  • Lighting time - 120 sec.
  • Max. carriage speed - 6.6 m/min
  • Carriage speed when slowing down - 1.3 m/min
  • Encoder - Electronic
  • Noise level - 45 dbA
  • Ambient temperature during operation - -20 °C ÷ +55 °C
  • Protection class - For indoor use only (IP20)
  • Weight of the device - 6.4 kg
  • Dimensions (LxWxH) - 360x200x145 mm
  • Max. door size (WxH) - See table RAILS
  • Control unit - E1000 built-in
  • Use frequency - 100%
