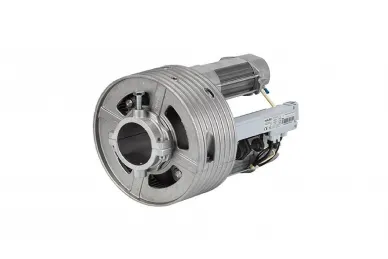

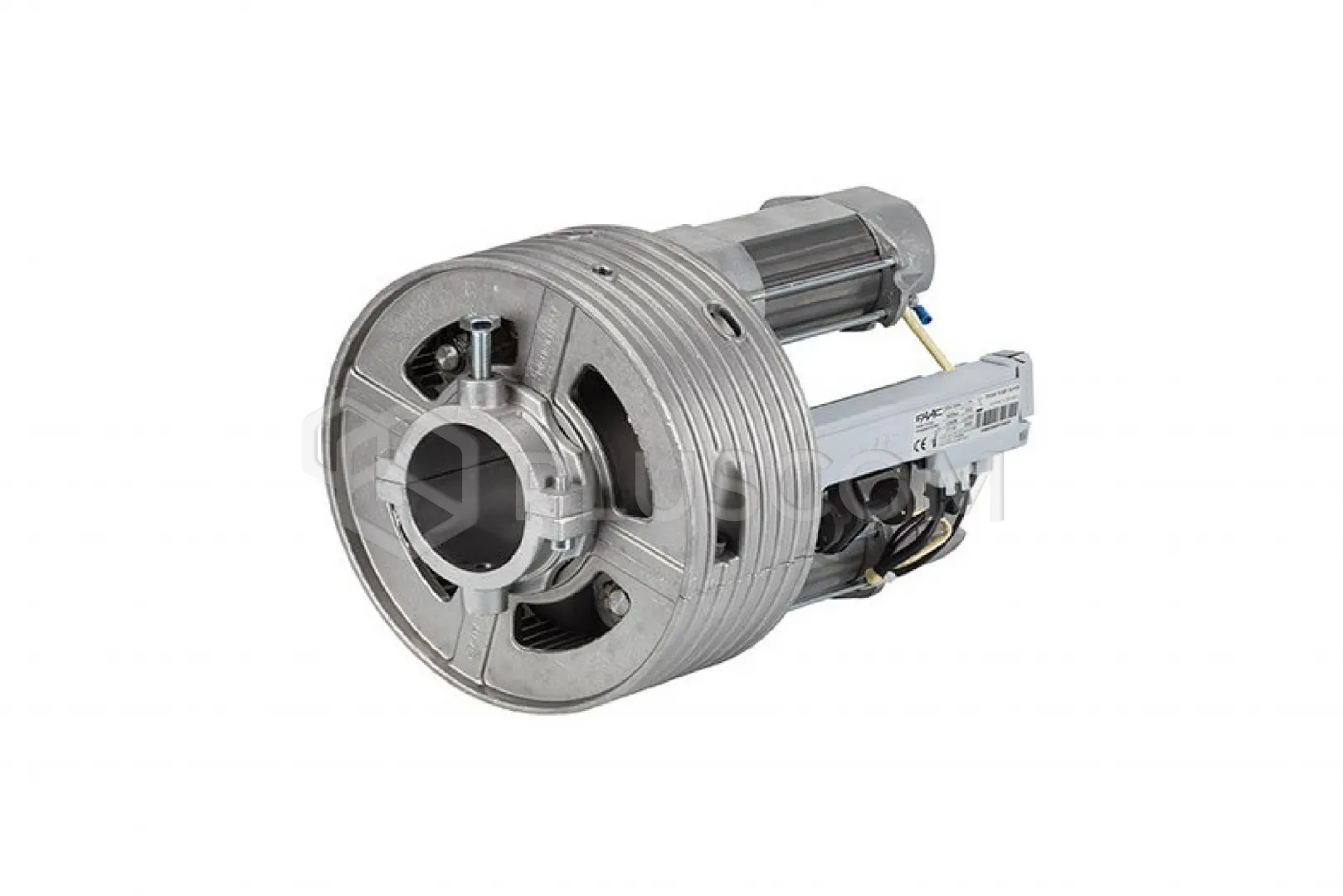

Faac 109981 RH240B EF SUPER Drive with 230V motor and built-in electro-brake

804,89 EUR including 23.00% VAT
Product code: #27100
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. height of the gate/rolling grille: 6 m
  • Max. width of the gate/rolling grille: 4.5 m
  • Load capacity: 360 kg
  • Max speed: 9 rpm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 391455 Pulley 240 for RH240 / RH240B drive Faac 391450 Electrobrake for RL200 drive Faac 790905 200MPS Control unit Faac Model E housing for the control unit Faac 391456 XK30 key switch with release lever

Faac 109981 RH240B EF SUPER operator with 230V motor and built-in electro-brake


Electromechanical operator RH240B EF SUPER with 230V motor for roller shutters and grilles with spring compensation. Versions marked EF include a built-in electro-brake.

Technical data:

  • Power supply voltage: 220-240 V AC 50/60Hz
  • Max. torque: 420 Nm
  • Ambient temperature during operation: -20°C ÷ + 55°C
  • Load capacity: 360 kg
  • Max. speed: 9 rpm
  • Winding shaft diameter: 76 mm
  • Pulley diameter: 240 mm
  • Max. height of the gate/rolling grille: 6 m
  • Max. width of the gate/rolling grille: 4.5 m
  • Device weight: 17 kg
  • Control unit: None
