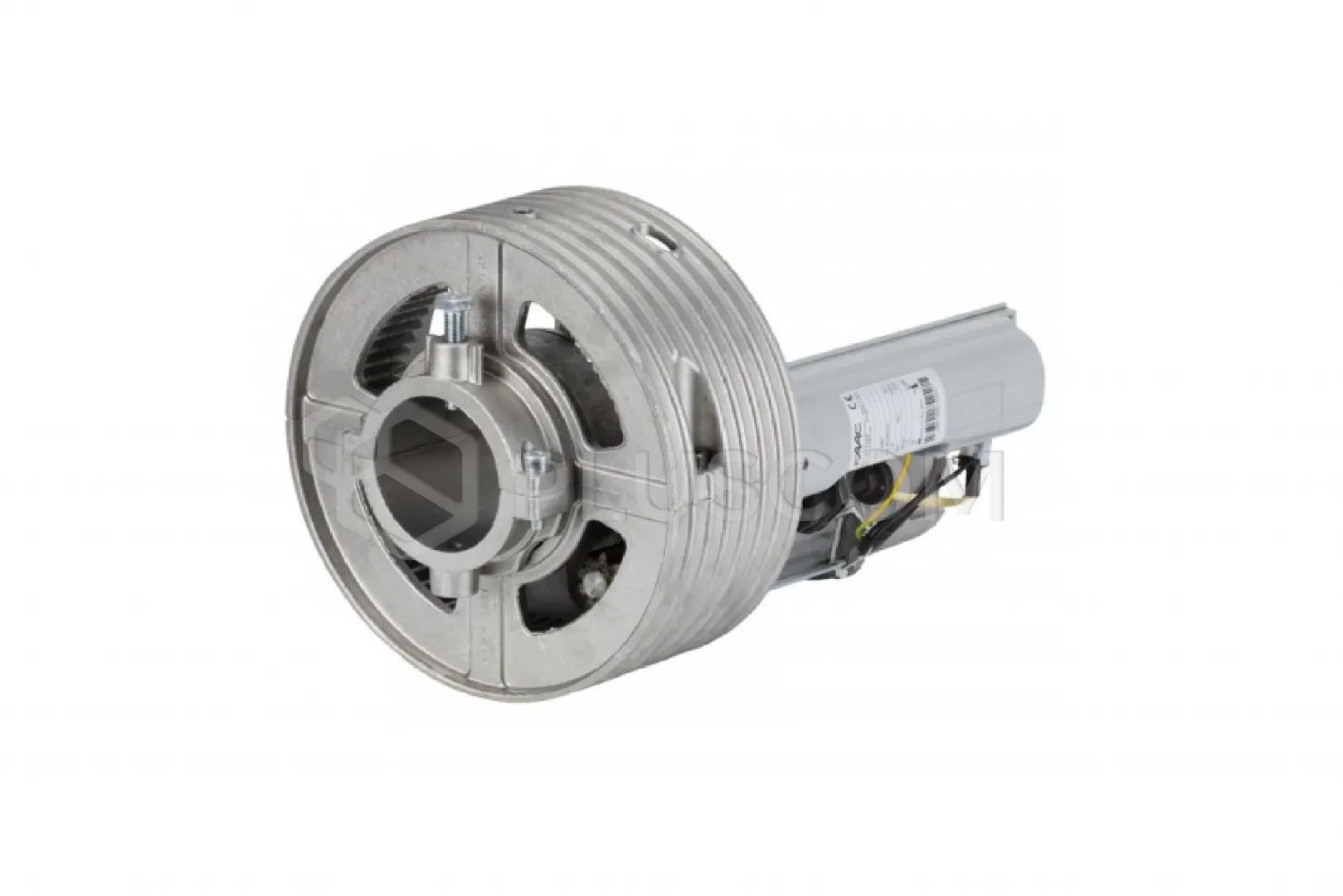

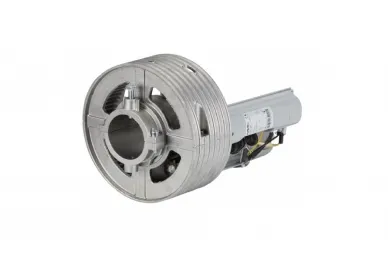

Faac 109971 RH240 EF electromechanical drive with 230V motor and built-in electro-brake

520,24 EUR including 19.00% VAT
Product code: #27098
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. height of the gate/rolling grille: 6 m
  • Max. width of the gate/rolling grille: 4.5 m
  • Load capacity: 180 kg
  • Max speed: 9 rpm
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 391450 Electrobrake for RL200 drive Faac 790905 200MPS Control unit Faac Model E housing for the control unit Faac 391456 XK30 key switch with release lever Faac 391455 Pulley 240 for RH240 / RH240B drive

Faac 109971 RH240 EF electromechanical drive with 230V motor and built-in electro-brake


RH240 EF electromechanical drive with 230V motor for roller shutters and grilles with spring compensation. The version marked EF includes a built-in electromechanical brake.

Technical data:

  • Power supply voltage: 220-240 V AC 50/60Hz
  • Max. torque 210 Nm
  • Ambient temperature during operation: -20°C ÷ + 55°C
  • Load capacity: 180 kg
  • Max. speed: 9 rpm
  • Winding shaft diameter: 76 mm
  • Pulley diameter: 240 mm
  • Max. height of the gate/rolling grille: 6 m
  • Max. width of the gate/rolling grille: 4.5 m
  • Device weight: 10 kg
  • Control unit: None
