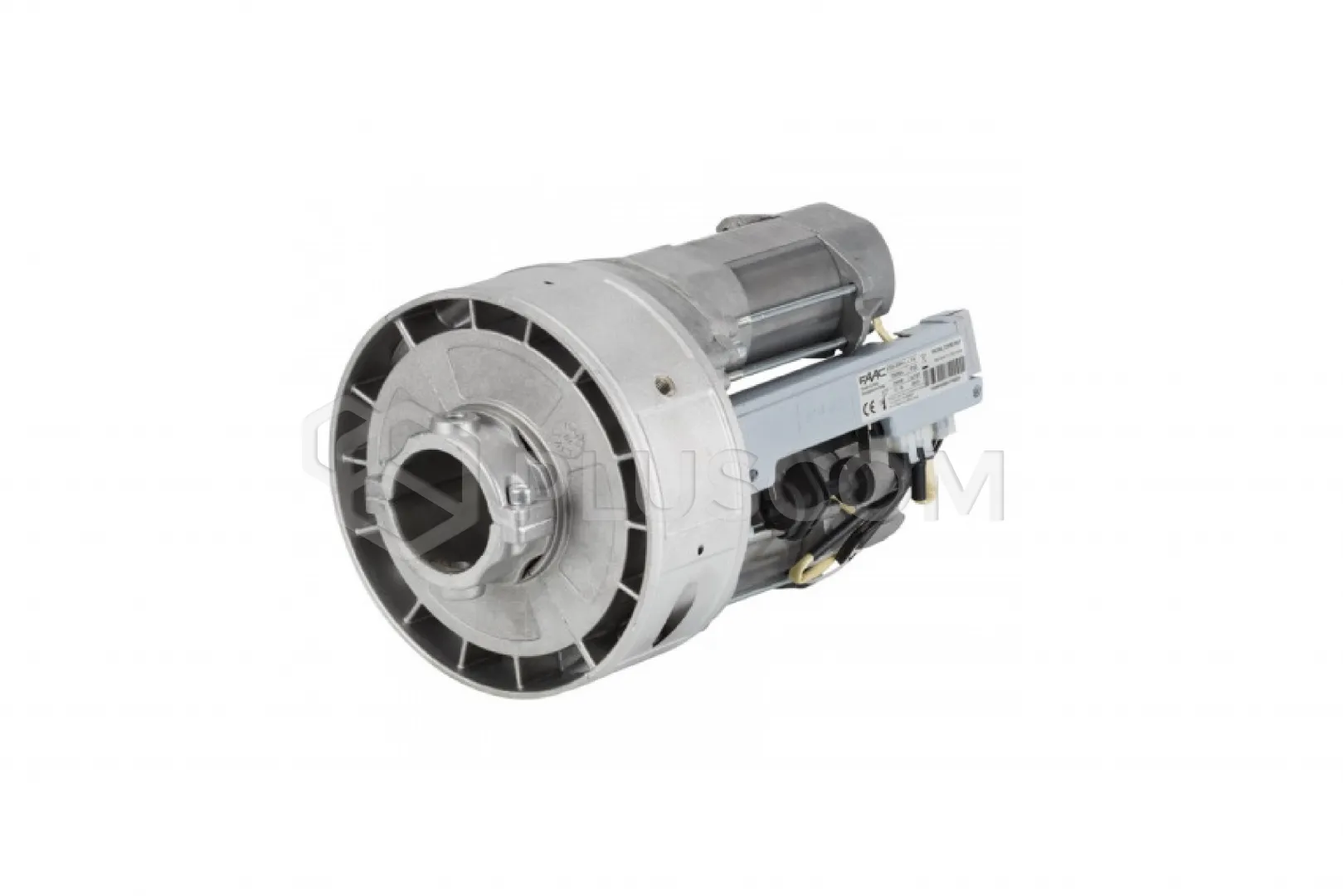

Faac 109961 RH200B EF electromechanical drive with 230V motor and built-in electro-brake

576,60 EUR including 22.00% VAT
Product code: #27097
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. height of the gate/rolling grille: 6 m
  • Max. width of the gate/rolling grille: 4.5 m
  • Load capacity: 280 kg
  • Max speed: 9 rpm
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 391453 Soft adapter 200 > 220 mm for RL200 and RH200B drive Faac 391452 Adapter for winding shaft 60 > 48/42 mm for RL200 and RH200B drive Faac 391450 Electrobrake for RL200 drive Faac 790905 200MPS Control unit Faac Model E housing for the control unit Faac 391456 XK30 key switch with release lever Faac 391454 Pulley 200-220 for RL200 / RH200B drive

Faac 109961 RH200B EF electromechanical operator with 230V motor and built-in electro-brake

Technical data:

  • RH200B electromechanical operator (built-in electro-brake)
  • 200/220 adapter for pulley
  • Installation accessories
RH200B EF electromechanical operator with 230V motor for roller shutters and grilles with spring compensation. The version marked EF includes a built-in electro-brake.

Technical data:

  • Power supply voltage: 220-240 V AC 50/60Hz
  • Max. torque: 280 Nm
  • Ambient temperature during operation: -20°C ÷ + 55°C
  • Load capacity: 280 kg
  • Max. speed: 9 rpm
  • Winding shaft diameter: 60 mm and 48/42 mm (with accessories code 391452)
  • Pulley diameter: 200/220 mm
  • Max. height of the gate/rolling grille: 6 m
  • Max. width of the gate/rolling grille: 4.5 m
  • Weight devices: 12.5 kg
  • Control unit: None
