Faac 109960 Electromechanical drive RH200B Rev. with 230V motor

515,32 EUR including 23.00% VAT
Product code: #27096
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. height of the gate/rolling grille: 6 m
  • Max. width of the gate/rolling grille: 4.5 m
  • Load capacity: 280 kg
  • Max speed: 9 rpm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 391450 Electrobrake for RL200 drive Faac 790905 200MPS Control unit Faac Model E housing for the control unit Faac 391456 XK30 key switch with release lever Faac 391454 Pulley 200-220 for RL200 / RH200B drive Faac 391453 Soft adapter 200 > 220 mm for RL200 and RH200B drive Faac 391452 Adapter for winding shaft 60 > 48/42 mm for RL200 and RH200B drive

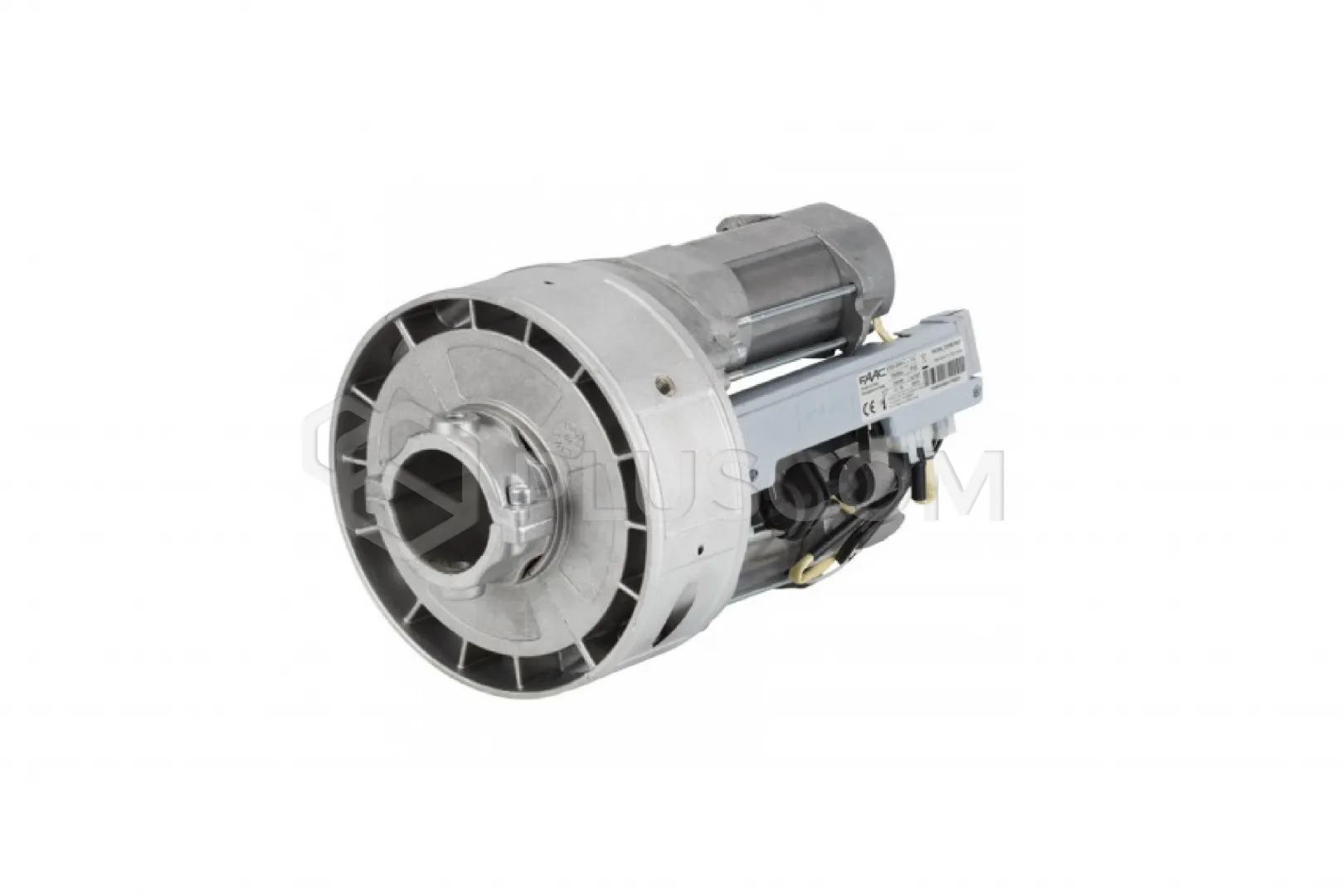

Faac 109960 Electromechanical drive RH200B Rev. with 230V motor

The set includes:

  • RH200B electromechanical drive
  • 200/220 adapter for pulley
  • Installation accessories
RH200B electromechanical drive with 230V motor for roller shutters and grilles with spring compensation.

Technical data:

  • Power supply voltage: 220-240 V AC 50/60Hz
  • Max. torque: 280 Nm
  • Ambient temperature during operation: -20°C ÷ + 55°C
  • Load capacity: 280 kg
  • Max. speed: 9 rpm
  • Winding shaft diameter: 60 mm and 48/42 mm (with accessories code 391452)
  • Pulley diameter: 200/220 mm
  • Max. height of the gate/rolling grille: 6 m
  • Max. width of the gate/rolling grille: 4.5 m
  • Device weight: 12.5 kg
  • Control unit: None
