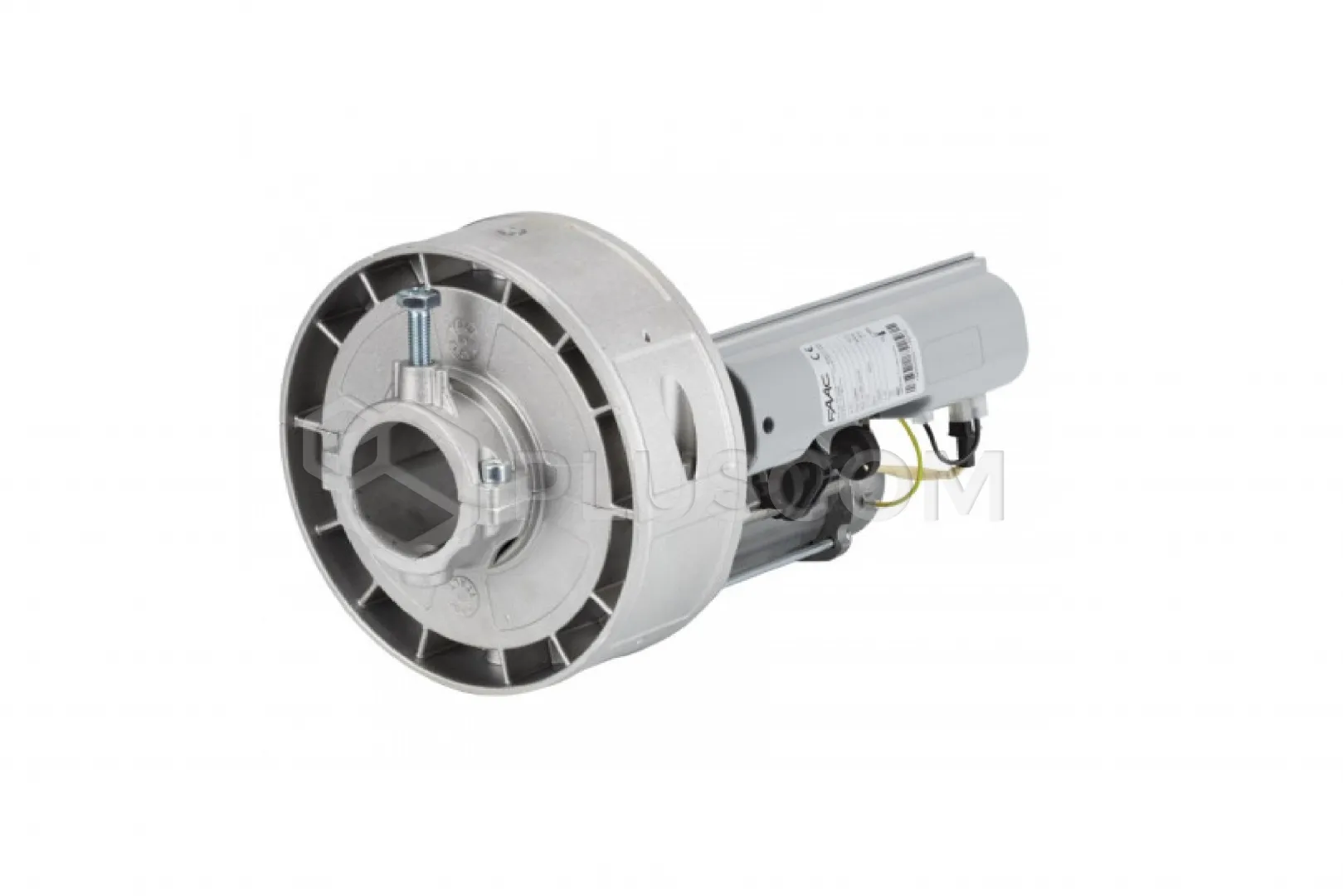

Faac 109951 RL200 EF Drive with 230V motor with built-in electro-brake

361,82 EUR including 23.00% VAT
Product code: #27091
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. height of the gate/rolling grille: 6 m
  • Max. width of the gate/rolling grille: 4.5 m
  • Load capacity: 170 kg
  • Max speed: 10 rpm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 391450 Electrobrake for RL200 drive Faac 790905 200MPS Control unit Faac Model E housing for the control unit Faac 391456 XK30 key switch with release lever Faac 391454 Pulley 200-220 for RL200 / RH200B drive Faac 391453 Soft adapter 200 > 220 mm for RL200 and RH200B drive Faac 391452 Adapter for winding shaft 60 > 48/42 mm for RL200 and RH200B drive

Faac 109951 RL200 EF Motor drive with 230V motor and built-in electro-brake

The kit includes:

  • RL200 EF electro-mechanical drive (built-in electro-brake)
  • 200/220 adapter for pulley
  • Installation accessories
RL200 EF electro-mechanical drive with 230V motor for roller shutters and grilles with spring compensation. The version marked EF includes a built-in electro-brake.

Technical data:

  • Power supply voltage: 220-240 V AC 50/60Hz
  • Max. torque: 170 Nm
  • Ambient temperature during operation: -20°C ÷ + 55°C
  • Load capacity: 170 kg
  • Max. speed: 10 rpm
  • Winding shaft diameter: 60 mm and 48/42 mm (with accessories code 391452)
  • Pulley diameter: 200/220 mm
  • Max. height of the gate/rolling grille: 6 m
  • Max. width of the gate/rolling grille: 4.5 m
  • Weight devices: 8 kg
  • Control unit: None
