Faac 109950 RL200 Rev Drive with 230V motor

281,97 EUR including 19.00% VAT
Product code: #27090
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. height of the gate/rolling grille: 6 m
  • Max. width of the gate/rolling grille: 4.5 m
  • Load capacity: 170 kg
  • Max speed: 10 rpm
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 790905 200MPS Control unit Faac Model E housing for the control unit Faac 391456 XK30 key switch with release lever Faac 391454 Pulley 200-220 for RL200 / RH200B drive Faac 391453 Soft adapter 200 > 220 mm for RL200 and RH200B drive Faac 391452 Adapter for winding shaft 60 > 48/42 mm for RL200 and RH200B drive Faac 391450 Electrobrake for RL200 drive

Faac 109950 RL200 Rev Motor with 230V motor

The kit includes:

  • RL200 electromechanical motor
  • 200/220 adapter for pulley
  • Installation accessories

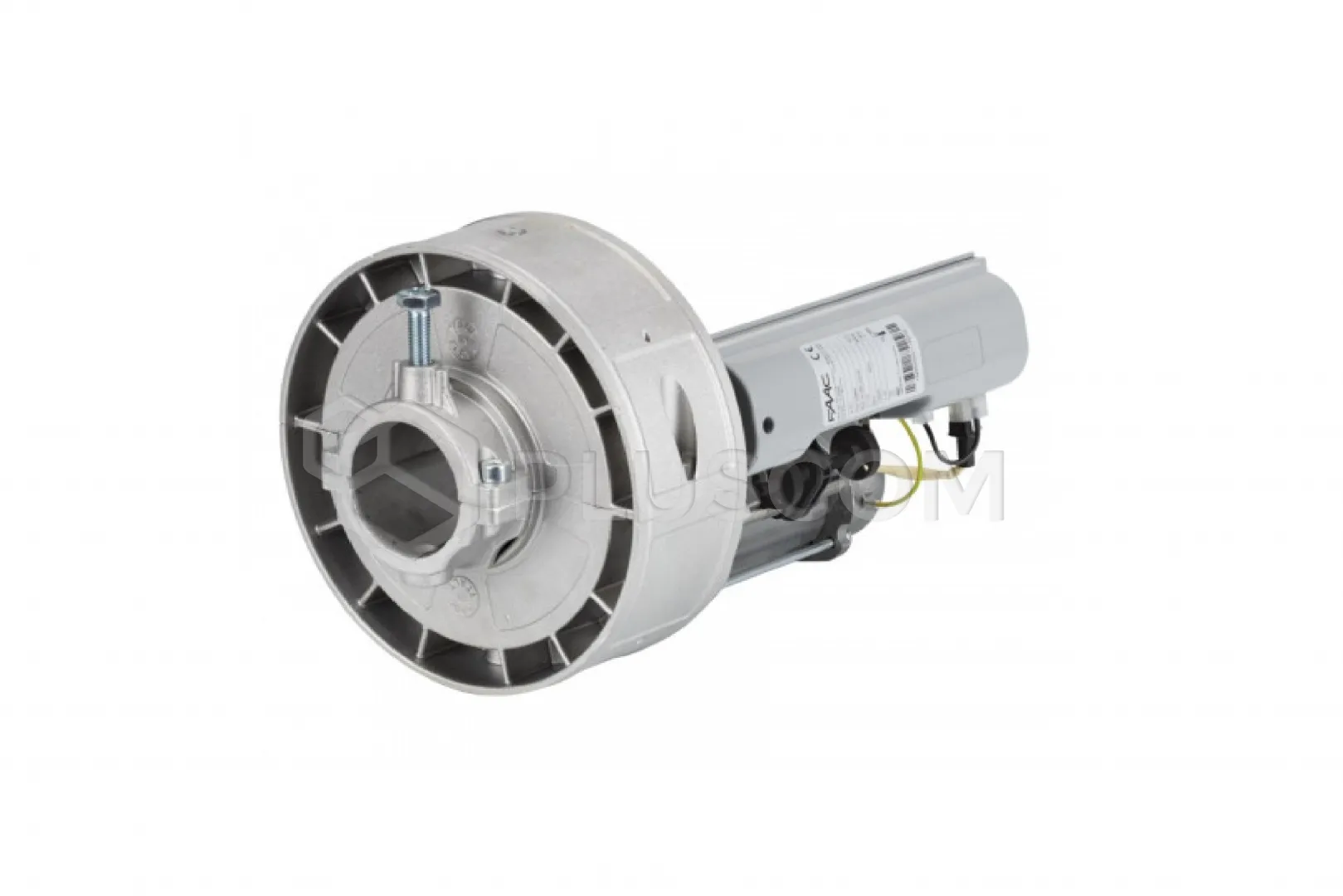

RL200 electromechanical motor with 230V motor for roller shutters and grilles with spring compensation.

Technical data:

  • Supply voltage 220-240 V AC 50/60Hz
  • Max. torque 170 Nm
  • Ambient temperature during operation -20°C ÷ + 55°C
  • Load capacity 170 kg
  • Max. speed 10 rpm
  • Winding shaft diameter 60 mm and 48/42 mm (with accessories code 391452)
  • Pulley diameter 200/220 mm
  • Max. height of the gate/rolling grille 6 m
  • Max. width of the gate/rolling grille 4.5 m
  • Weight of the device 8 kg
  • Control unit None
