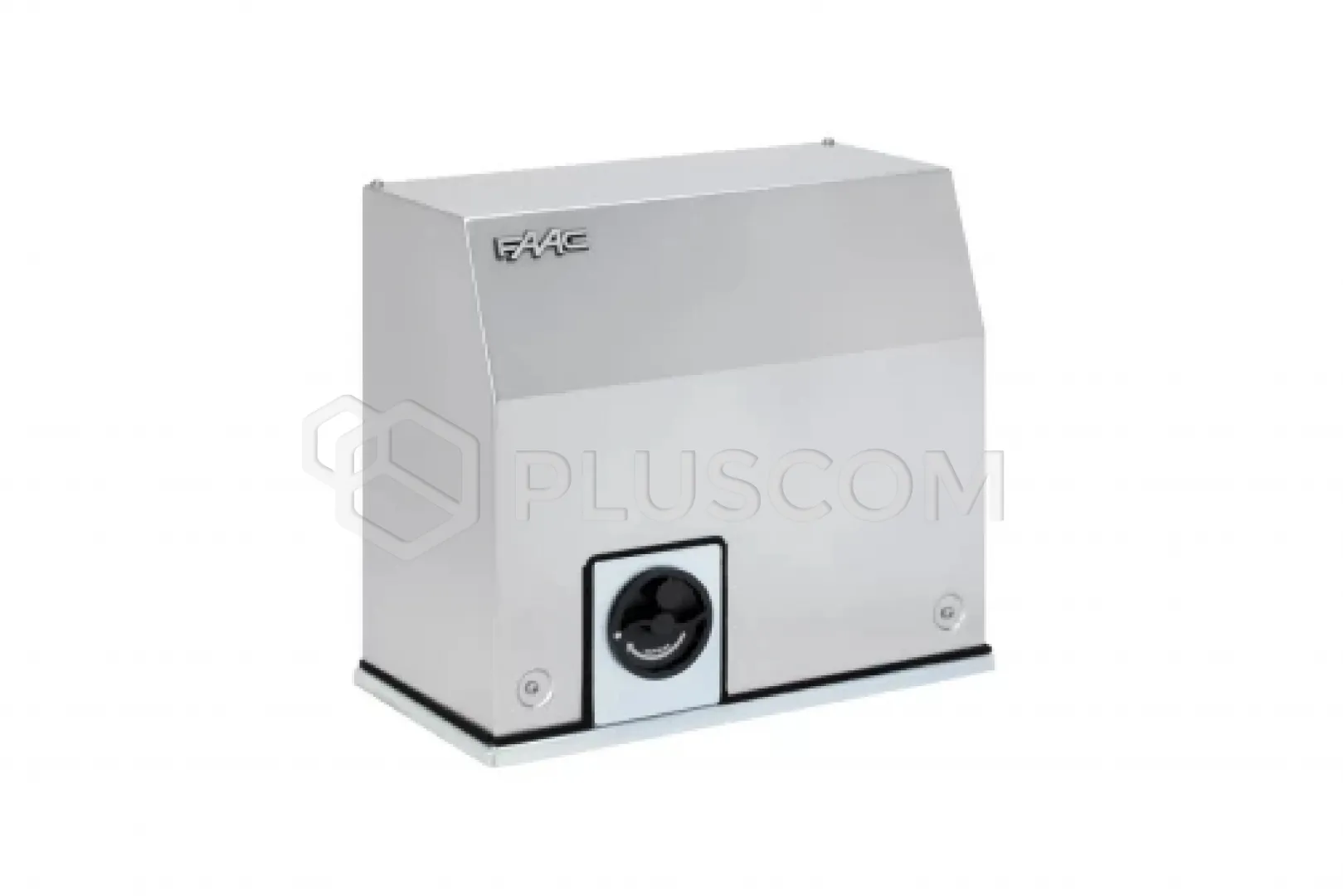

Faac 109903 C851 Electromechanical drive with a powerful three-phase motor and a 230V oil-bath gear unit

4775,79 EUR including 23.00% VAT
Product code: #26831
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. gate leaf weight: 1800 kg
  • Gate leaf movement speed: 20 ÷ 40 m/min (adjustable)
  • Limit switch: Mechanical + magnetic
  • Control unit: E850S (built-in)

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 737850 Optional mounting base for sliding gates C851 Faac 63003207 Control board E850s

Faac 109903 C851 Electromechanical drive with a powerful three-phase motor and a 230V oil bath gear unit


Electromechanical drive with a 230V oil bath gear unit for industrial sliding gates weighing up to 1800 kg and up to 20 m wide.

FEATURES:

  • Ideal for special applications requiring high gate leaf speed and high frequency of use (100%)
  • The self-locking of the drive is guaranteed by an integrated electric brake installed on a powerful 1.1 kW gear motor
  • The speed of travel is programmed and regulated using an inverter integrated with the E850S control unit
Included: C851 electromechanical drive with gear Z28 M4 and built-in E850S control unit equipped with inverter, magnetic limit switch and electromechanical microswitches for slowdown regulation.

Technical data:

  • Power supply voltage: 230V (+6% -10%) 50Hz
  • Power consumption: 1800W
  • Maximum gate leaf weight: 1800 kg
  • Motor type: 1.1 KW (oil lubricated)
  • Maximum thrust: 1800 N
  • Torque: 110 Nm
  • Max. converter: 1.5 KW
  • Maximum recommended gate length: 20 m
  • Travel speed: 20-40 m/min
  • Operating temperature range: -20°C to +55°C
  • Protection class: IP 54
  • Gear: Z28 mod. 4
  • Dimensions (L x W x H): 510 x 295 x 467 mm
  • Drive weight: 49 kg
