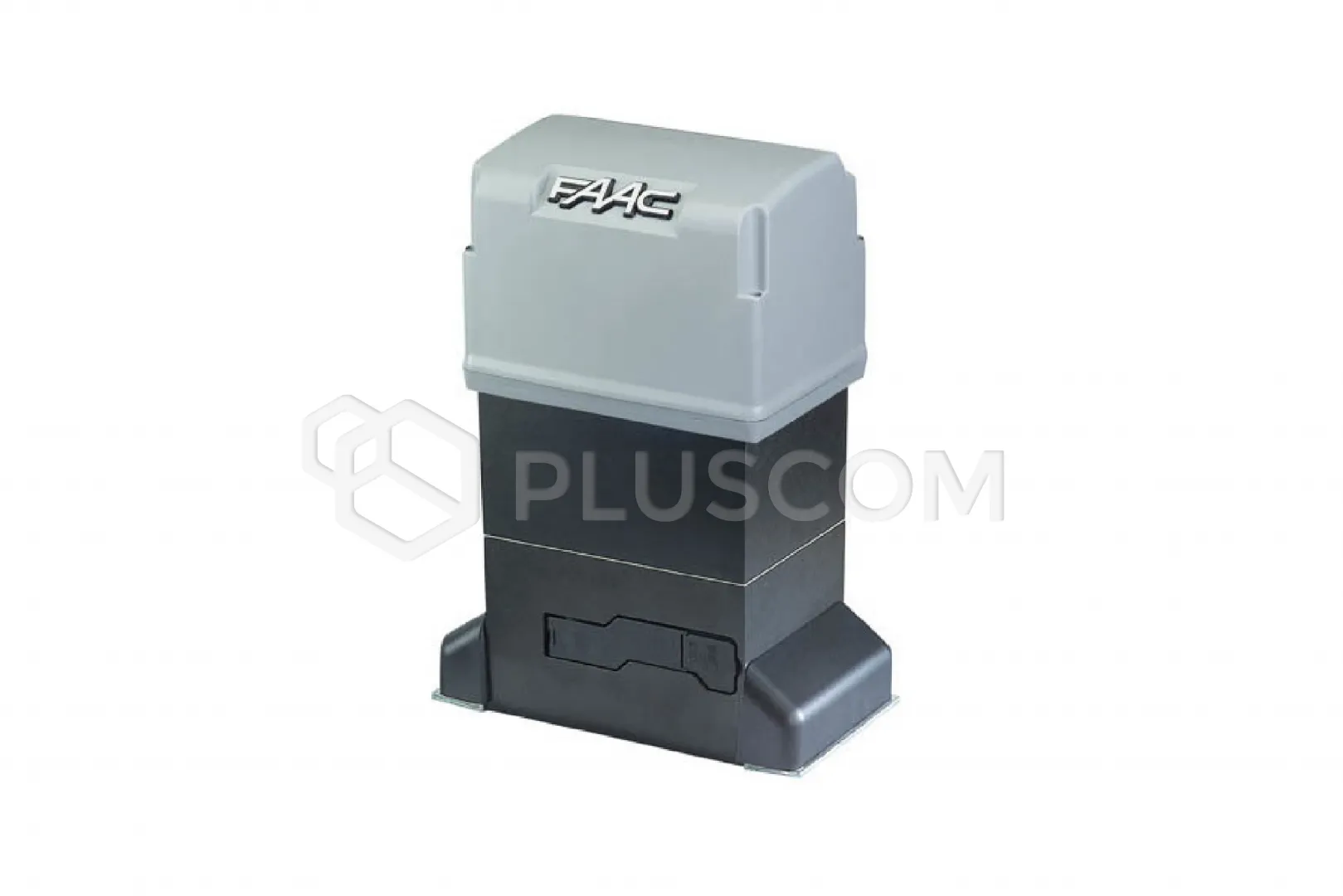

Faac 109897 Electromechanical drive with gear immersed in oil bath 230V

1201,66 EUR including 19.00% VAT
Product code: #26825
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. gate leaf weight: 1000 kg
  • Gate leaf travel speed: 11.6 m/min (with Z12 wheel)
  • Usage frequency: 70%
  • Limit switch: Inductive
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 737816 Optional mounting base Faac 71275101-10 Unlocking lock insert with personalized key

Faac 109897 Electromechanical drive with oil-bath gear 230V


Electromechanical drive with 230V motor and oil-bath gear for sliding gates weighing max. 1000 kg.

FEATURES:

  • Non-self-locking drive - requires the use of an electromagnetic lock to prevent manual movement of the gate leaf
  • Maximum protection against crushing thanks to the use of a double-disc clutch immersed in an oil bath
  • Inductive limit switch
  • Drive release lever secured with a personalized key
Included: 844 R Reó electromechanical drive. with a Z12 gear, metal plates for activating the limit switch, a key to unlock the drive, side covers for the mounting screws and a 12.5 μF/400 V starting capacitor.

Technical data:

  • Power supply voltage: 220-240 V AC 50/60 Hz
  • Maximum power consumption: 550 W
  • Maximum thrust: 680 N (with Z12 gear)
  • Engine speed: 750 rpm
  • Reduction ratio: 1:10
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Device weight: 14.5 kg
  • Protection class: IP 44
  • Oil type: FAAC HP
  • Gate leaf speed: 11.6 m/min (with Z12 wheel)
  • Thermal protection: 140°C
  • Limit switch: Inductive
  • Clutch: Double disc in oil bath
  • Device dimensions (LxDxH): 277 x 155 x 388 mm
  • Maximum gate leaf weight: 1000 kg
  • Use frequency: 70%
  • Control unit: Not included
