Faac 109885 884 MC 3PH Electromechanical drive with gear immersed in oil bath

5121,11 EUR including 23.00% VAT
Product code: #26826
Manufacturer: Faac
  • Power supply: 230V AC
  • Engine power supply: 400V
  • Max. gate leaf weight: 3500 kg
  • Limit switch: Electromechanical with roller lever
  • Control unit: 884T (built-in)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 202073 Control unit E844 3PH Faac 737628 Optional mounting base for sliding gates 884 MC 3PH Faac 719328 Galvanized metal toothed rack 30 mm Faac 719169 Pinion z16 model 6 884

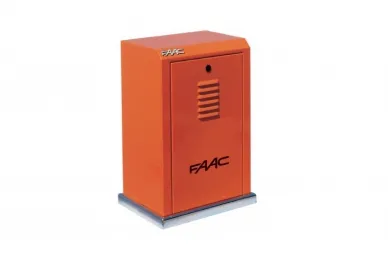

Faac 109885 884 MC 3PH Electromechanical drive with oil bath gear


Three-phase 400V drive for industrial sliding gates weighing up to 3500 kg.

FEATURES:

  • Ideal for the heaviest industrial gates, intensively used
  • Braking mechanism guaranteeing a short stopping distance and additionally keeping the gate in the closed position
  • In the event of a power failure, the unlocking mechanism with a key allows the gate to be opened and closed manually
  • Double-disc clutch in an oil bath
  • Base on leveling screws
  • Steel housing protected in the cataphoresis process and covered with polyester paint
Included: 884 MC 3PH electromechanical drive without a gear wheel, with 884T control unit, metal pusher for activating the limit switch, key to unlock the drive.

Technical data:

  • Supply voltage: 220-240 V / 400 V AC 3 50/60 Hz
  • Type of motor: Asynchronous, three-phase
  • Maximum power consumption: 850 W
  • Maximum torque: 0 ÷ 155 Nm (*)
  • Maximum thrust: 3200 N (*)
  • Reduction ratio: 1:43.2
  • Maximum gate leaf width: 42 m
  • Travel speed adjustment: None
  • Limit switch: Electromechanical with roller lever
  • Gears: None
  • Encoder: None
  • Force adjustment: By means of a double-disc clutch immersed in an oil bath
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Thermal protection: 155°C
  • Protection class: IP55
  • Device weight: 50 kg
  • Oil type: FAAC HP
  • Device dimensions (LxDxH): 430 x 310 x 586 mm
  • Maximum gate leaf weight: 3500 kg
  • Use frequency: 100% (up to 2000 kg) - 50% (over 2000 kg)
  • Control unit: 884T (built-in)
