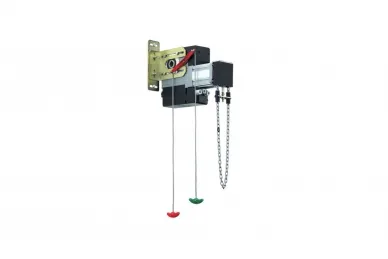

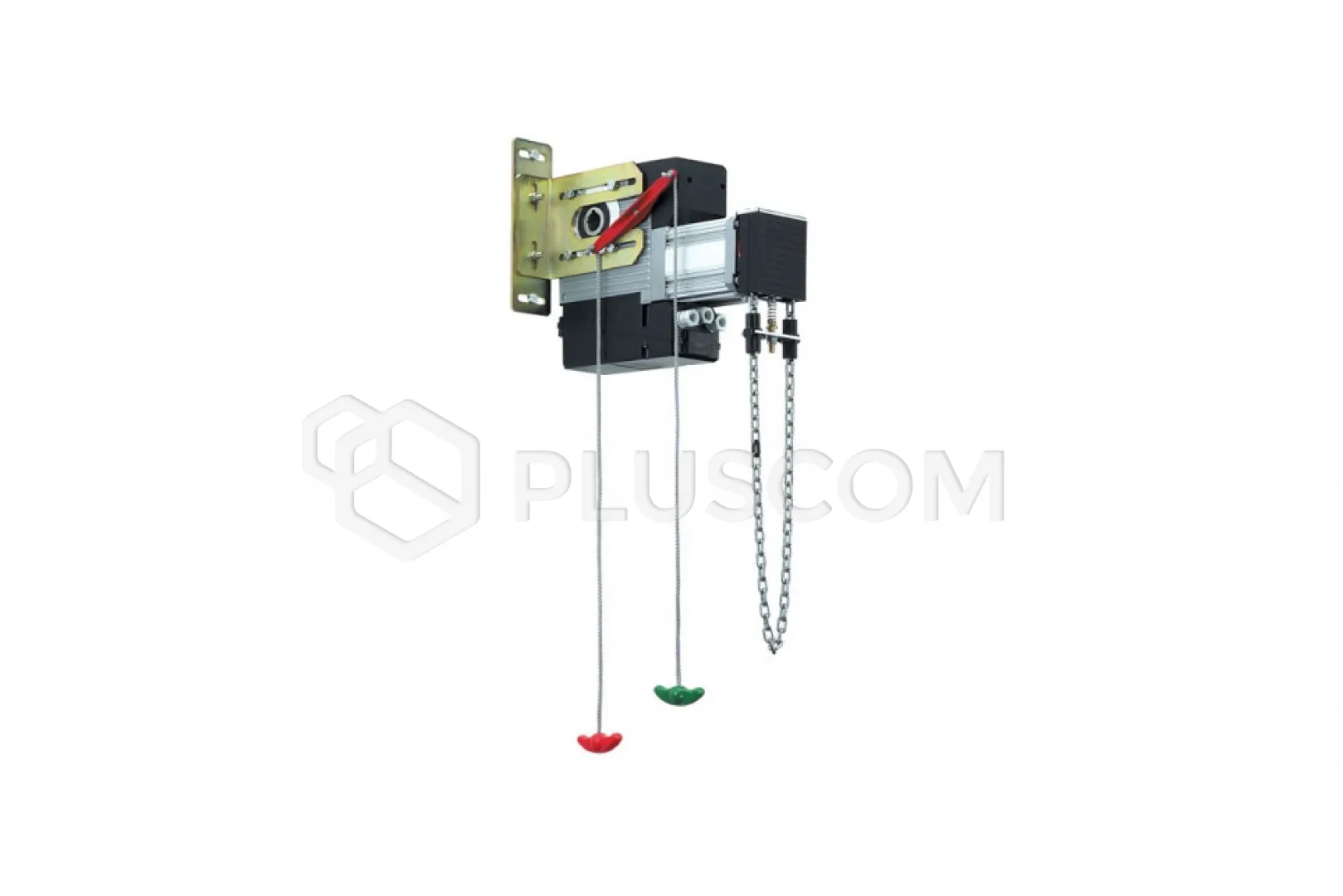

Faac 109550 Gear Actuator with Integrated Encoder 541V 3PH 400V

1375,80 EUR including 20.00% VAT
Product code: #26857
Manufacturer: Faac
  • Motor power supply: 400 V
  • Supply voltage: 230 V
  • Shaft speed: 23 rpm
  • Encoder: Integrated
  • Dimensions (LxWxH) 92 x 376 x 266 mm
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Faac 109550 Gearmotor with integrated encoder 541 V 3PH 400V


Gearmotor 541 V 3PH 400V for industrial sectional doors with external control unit - (to be purchased separately).

  • Ideal for installation in industrial doors with automatic/semi-automatic control, with external control unit
  • 2 types of application: by direct transmission on the clutch shaft or indirectly on the chain (in the event of lack of space on the sides or too short headroom)
  • Self-locking drive

Technical data:

  • Supply voltage: 220-240 V AC 50/60 Hz
  • Type of motor: Single-phase asynchronous
  • Max. power consumption: 720 W
  • Drive: Via shaft dia. 25.4 mm (1")
  • Shaft speed: 23 rpm
  • Max. shaft speed: 24
  • Max. torque: 50 Nm
  • Encoder: Integrated
  • Ambient temperature during operation: -20 °C ÷ +55 °C
  • Degree of protection: IP54
  • Oil type: FAAC HP
  • Device weight: 14 kg
  • Dimensions (LxWxH) 92 x 376 x 266 mm
  • Control unit: None
  • Frequency of use: S3 - 40%
