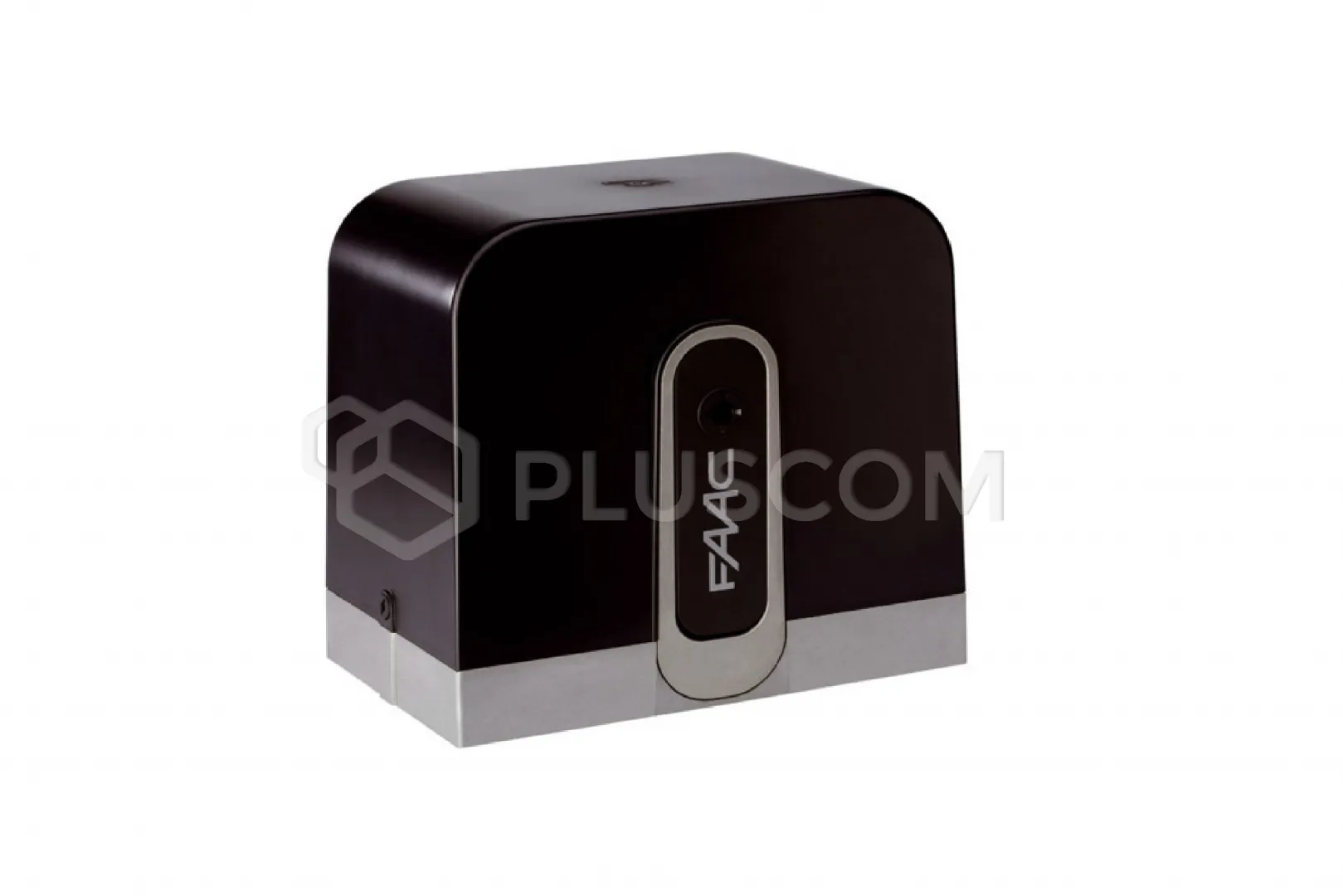

Faac 109320 Electromechanical drive C720 24V

738,05 EUR including 19.00% VAT
Product code: #26814
Manufacturer: Faac
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Max. gate leaf weight: 400 kg
  • Limit switch: Magnetic
  • Gate leaf movement speed: 18 m/min
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac E721 control unit for C720/C721 drives Faac Personalized lock catch - 10 pcs Faac Lock for unlocking the drive with a key Faac XBAT 24 emergency battery

Faac 109320 Electromechanical drive C720 24V


Electromechanical drive 24V for residential and estate sliding gates weighing max. 400 kg.

FEATURES:

  • For residential use
  • Cycloidal gear that reduces vibration and noise. FAAC PATENT
  • Exceptional mechanical efficiency >80%
  • Control unit with drive force regulation and virtual encoder, acting as anti-crushing protection (reversing the movement of the leaf after detecting an obstacle)
  • Magnetic limit switch
  • Master-Slaóe function allowing the connection of two drives in the application of opposing gates

The C720 24V package includes:

  • Low voltage electromechanical actuator with E721 control unit
  • Gear wheel
  • Unlocking key
  • Mounting plate
Included: C720 electromechanical drive with Z28 M4 gear wheel and built-in E721 control unit equipped with a virtual encoder, key to unlock the drive, magnets to activate the limit switch, mounting base.

Technical data:

  • Power supply voltage: 220-240 V AC 50/60 Hz
  • Motor type: Brush, 24 V DC
  • Maximum power consumption: 170 W
  • Maximum torque: 18 Nm (*)
  • Maximum thrust: 320 N (*)
  • Reduction ratio: 1:49
  • Maximum gate wing width: 15 m
  • Gate wing travel speed: 18 m/min (adjustable)
  • Travel speed adjustment: By control unit (10 levels)
  • Limit switch: Magnetic
  • Gear: Z28 M4
  • Encoder: Virtual
  • Force adjustment: Through the control unit (50 levels)
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Protection class: 44 IP
  • Device weight: 8 kg
  • Device dimensions (LxWxH): 304 x 180 x 282 mm
  • Maximum gate leaf weight: 400 kg
  • Frequency of use: 100%
  • Control unit: E721 (built-in)
