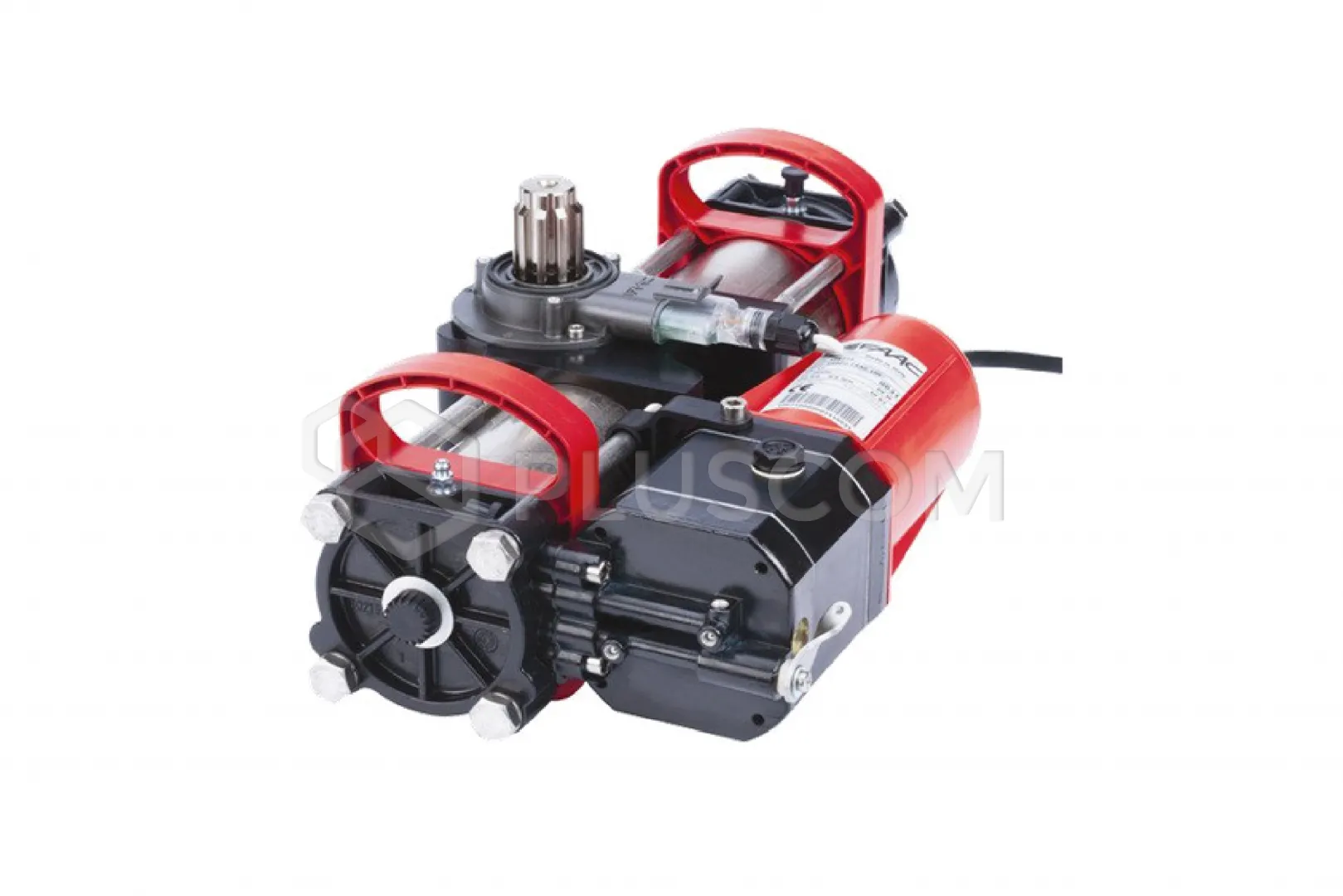

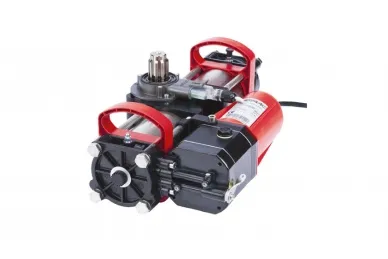

Faac 108725 Underground hydraulic actuator without locks S800H SBW 180°

1853,28 EUR including 23.00% VAT
Product code: #26796
Manufacturer: Faac
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Max. leaf length: 4 m
  • Max. gate leaf weight: 800 kg
  • Max. sash opening angle: 187°
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 490113 Stainless Steel Foundation Box Faac 490112 Drive housing dedicated to S700H / S800H drives Faac 390972 Splined connector kit for swing gates Faac 390035 Hydraulic release for swing gates Faac 90926 Emergency battery base Faac E124 control unit with housing Faac 71209101-10 lock to unlock the drive with key Faac 490187 Swing gate rail connector kit

Faac 108725 Underground hydraulic actuator without locks S800H SBW 180°


Drive for swing gates up to 8m, underground hydraulic drive 24V for home and estate swing gates.

FEATURES:

  • Drive designed for continuous operation
  • Built-in absolute magnetic encoder with ą2Easy” rail (two-wire connection without polarity)
  • Thanks to built-in mechanical limiters, it does not require the installation of movement limiters
  • leaves for the opening or closing position of the driveway surface (FAAC PATENT)
  • Hybrid technology (combination of hydraulic drive with 24 V motor)

Included: drive with hydraulic locking for opening and closing (CBAC version) or without locks (SBW version), absolute magnetic encoder, key to unlock the drive and adjustment key.

Technical data:

  • Power supply - 230 V
  • Motor electric - 24 Vdc
  • Power consumption - 60 W
  • Max. torque - 500 Nm * - 600 Nm **
  • Max. angular speed - 5.5°/s * - 8.2°/s **
  • Operating temperature range - -20 °C to +55 °C
  • Drive weight - 17 kg
  • Oil type - FAAC HP OIL
  • Max. opening angle - 187°
  • Protection class - IP 67
  • Retarder type - electronic
  • Max. leaf length - 4 m
  • Frequency of use - continuous operation
  • Hydraulic lock - NO
