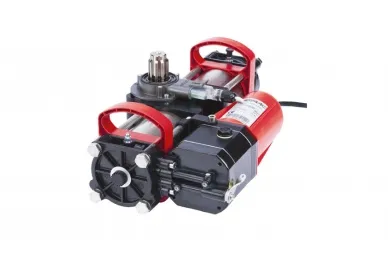

Faac 108722 Underground hydraulic actuator with opening and closing lock S800H ENC CBAC 180°

1853,28 EUR including 23.00% VAT
Product code: #26794
Manufacturer: Faac
  • Power supply: 230V AC
  • Zasilanie silnika: 24V
  • Max. leaf length - 2 m
  • Max. gate leaf weight: 800 kg
  • Max. sash opening angle: 187°
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 390035 Hydraulic release for swing gates Faac 90926 Emergency battery base Faac E124 control unit with housing Faac 71209101-10 lock to unlock the drive with key Faac 490187 Swing gate rail connector kit Faac 490113 Stainless Steel Foundation Box Faac 490112 Drive housing dedicated to S700H / S800H drives Faac 390972 Splined connector kit for swing gates

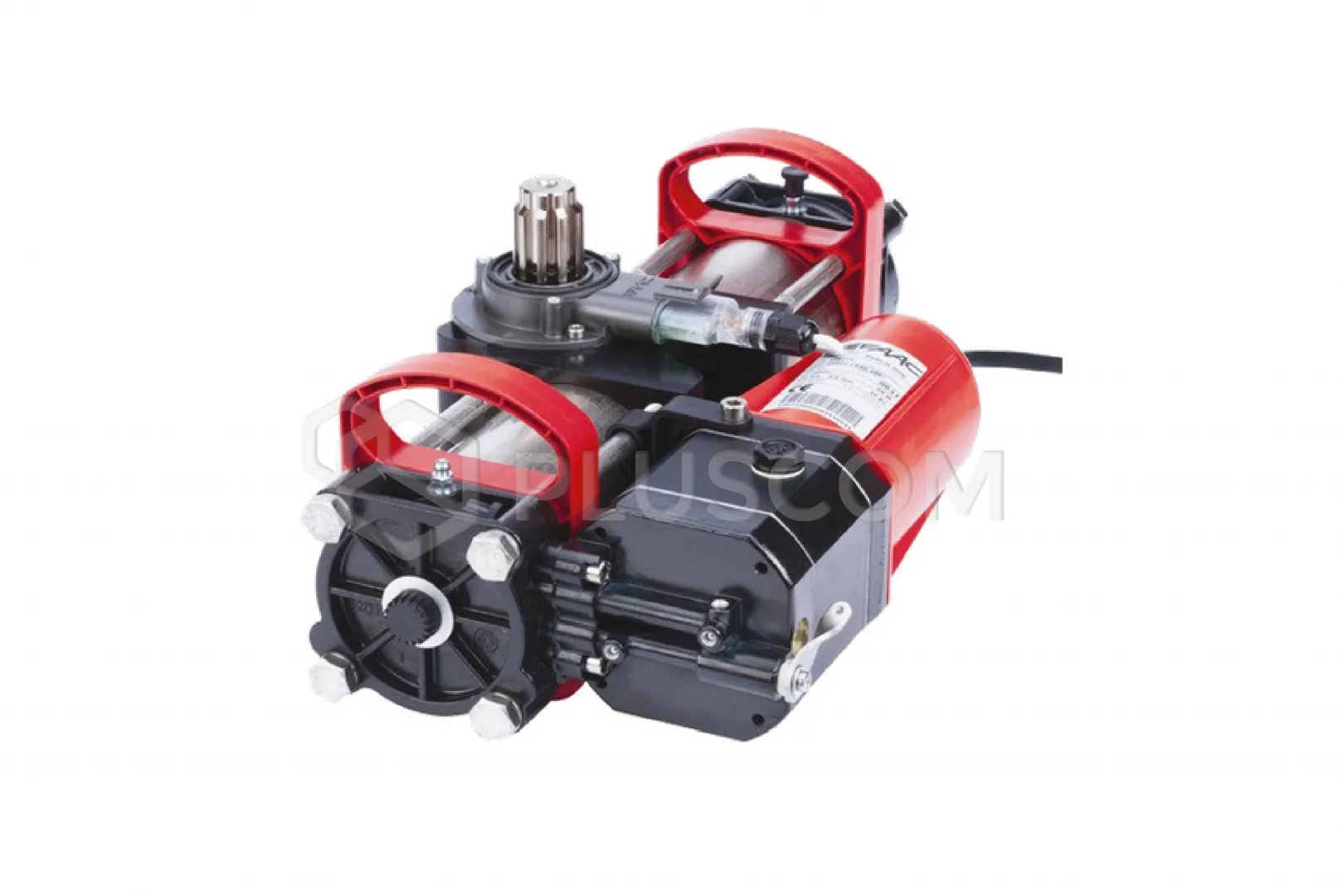

Faac 108722 Underground hydraulic actuator with opening and closing lock S800H ENC CBAC 180°


Underground hydraulic drive 24V for residential and housing estate swing gates for a leaf up to 2m long and weighing max. 800kg by FAAC. Continuous operation. Built-in absolute magnetic encoder with "2Easy" rail (two-wire connection without polarity).

FEATURES:

  • Continuous operation
  • Built-in absolute magnetic encoder with “2Easy” rail (two-wire connection without polarity).
  • Thanks to the built-in locks, it does not require the installation of mechanical opening or closing locks on the surface
  • Hybrid technology
  • Service unlocking device
  • Simple operation and installation thanks to the built-in handles
Included: drive with hydraulic opening and closing lock (CBAC version) or without locks (SBW version), absolute magnetic encoder, key to unlock the drive and adjustment key.

Technical data:

  • Power supply - 230 V
  • Electric motor - 24 Vdc
  • Power consumption - 60 W
  • Max. torque - 500 Nm * - 600 Nm **
  • Max. angular speed - 5.5°/s * - 8.2°/s **
  • Operating temperature range - -20 °C to +55 °C
  • Drive weight - 17 kg
  • Oil type - FAAC HP OIL
  • Max. opening angle - 187°
  • Protection class - IP 67
  • Retarder type - Electronic
  • Max. leaf length - 2 m
  • Frequency of use - Continuous operation
  • Hydraulic lock - YES
