Faac 10563046 Delta 3-741 Starter kit

931,61 EUR including 23.00% VAT
Product code: #21979
Manufacturer: Faac
  • gate weight: 900kg
  • Travel speed 12 rpm.
  • control panel: 748D
  • Thermal protection on the motor winding
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice ROA8 M4 metal rack Proxima Square LED lamp 12-24V AC/DC or 230V AC Nice ROA81 M6 rack Proxima Green Beacon Light 12-24V AC/DC / 230V AC Faac XLED Flashing signal ligh

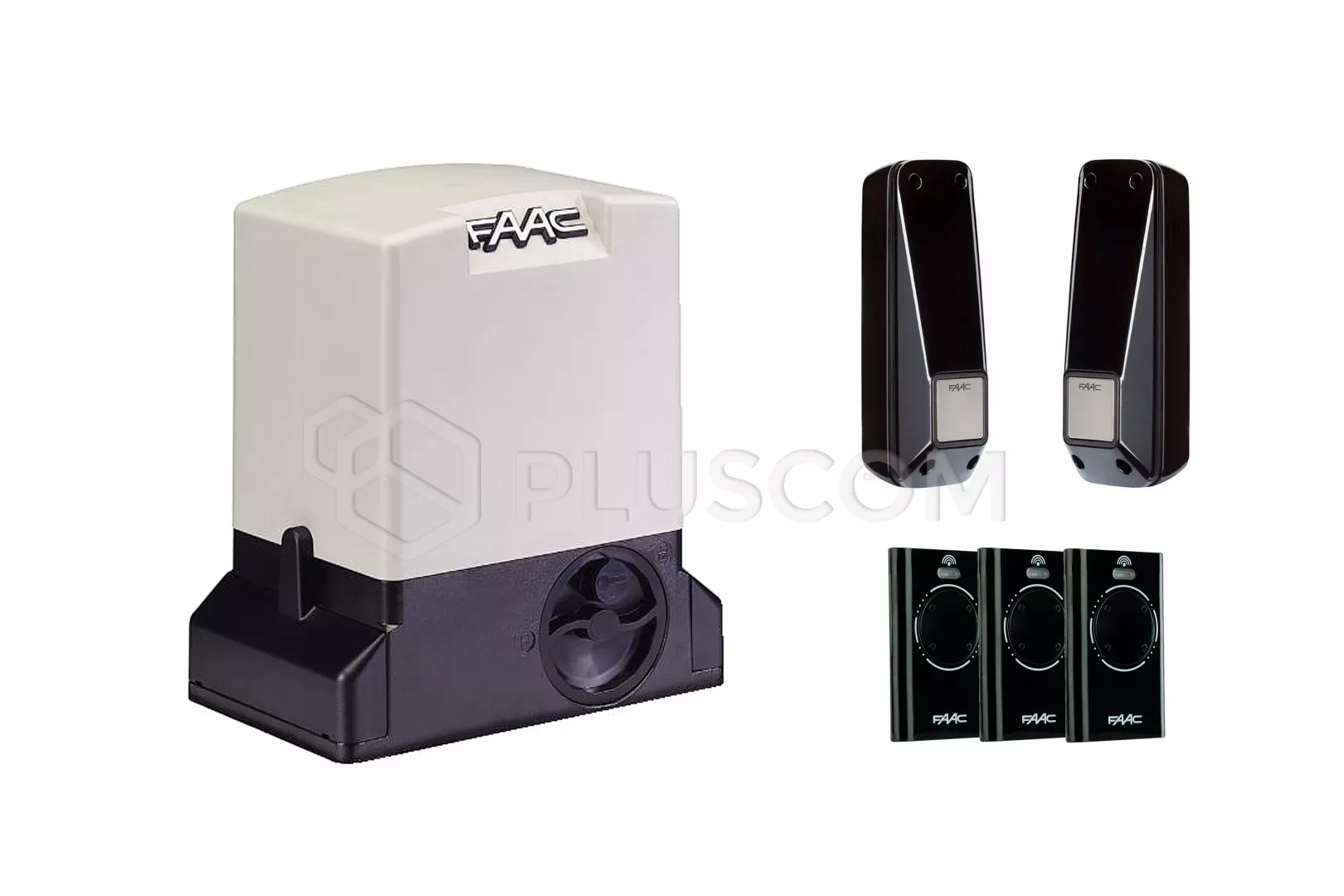

Faac Delta 3-741 starter kit for sliding gates up to 900kg

SET CONTAINS:
  • gear drive 741 with built-in control unit and mounting plate
  • receiver RP LC 868 2-channels
  • encoder
  • 1 x 4-channel remote control XT4 868 SLH
  • a pair of XP 20 D photocells
Faac 10563046 Delta 3-741 starter kit for sliding gates up to 900kg

Faac 10563046 Delta 3-741 starter kit for sliding gates up to 900kg

The most important advantages of the drive and the set include:
  • quick and simple installation thanks to the built-in central unit (748D)
  • self-locking drive - no electromagnetic lock required even when there is no power
  • in the event of a power failure, a keyed unlocking device enables manual opening and closing of the gate
  • simplified display programming
  • magnetic limit switch
TECHNICAL DATA:
  • Power supply: 230 V
  • Maximum weight of the wing: 500 kg
  • Power consumption: 1.5 A
  • Power consumption: 350 W
  • Gate travel speed: 12m / min.
  • Gate drive: mechanical
  • Gear rack type: Z16
  • Thermal protection: 140ºC
  • Dimensions: 295 x 225 x 325mm
  • Weight: 16 kg
  • Protection class: IP44
  • Working temperature: -20ºC / + 55ºC
