Faac 104911 615BPR RAPID gray Barrier unit 230V

1705,39 EUR including 20.00% VAT
Product code: #26899
Manufacturer: Faac
  • Zasilanie: 230V AC
  • Rectangular - Rectangular with apron - Rectangular Articulated - Oval
  • Max. arm length: 2.5 m
  • Control unit: 615BPR (built-in)
  • RAL 9006
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 428088 Standard rectangular arm 2315mm Faac 490073 Mounting plate for 615BPR barrier Faac 428045 Oval arm Faac 390184 LED Lighting Adapter for Rectangular Arm Faac 390993 LED lighting strip 12 m for barrier Faac 721008 Spring wire dia. 5,5 Faac 428805 Adjustable barrier arm support Faac 390081 Kit for connecting oval arm lighting to the 615BPR barrier Faac 428441 2m apron for barrier arm Faac 428342 Fixings for rectangular or oval arms

Faac 104911 615BPR RAPID gray Barrier unit 230V

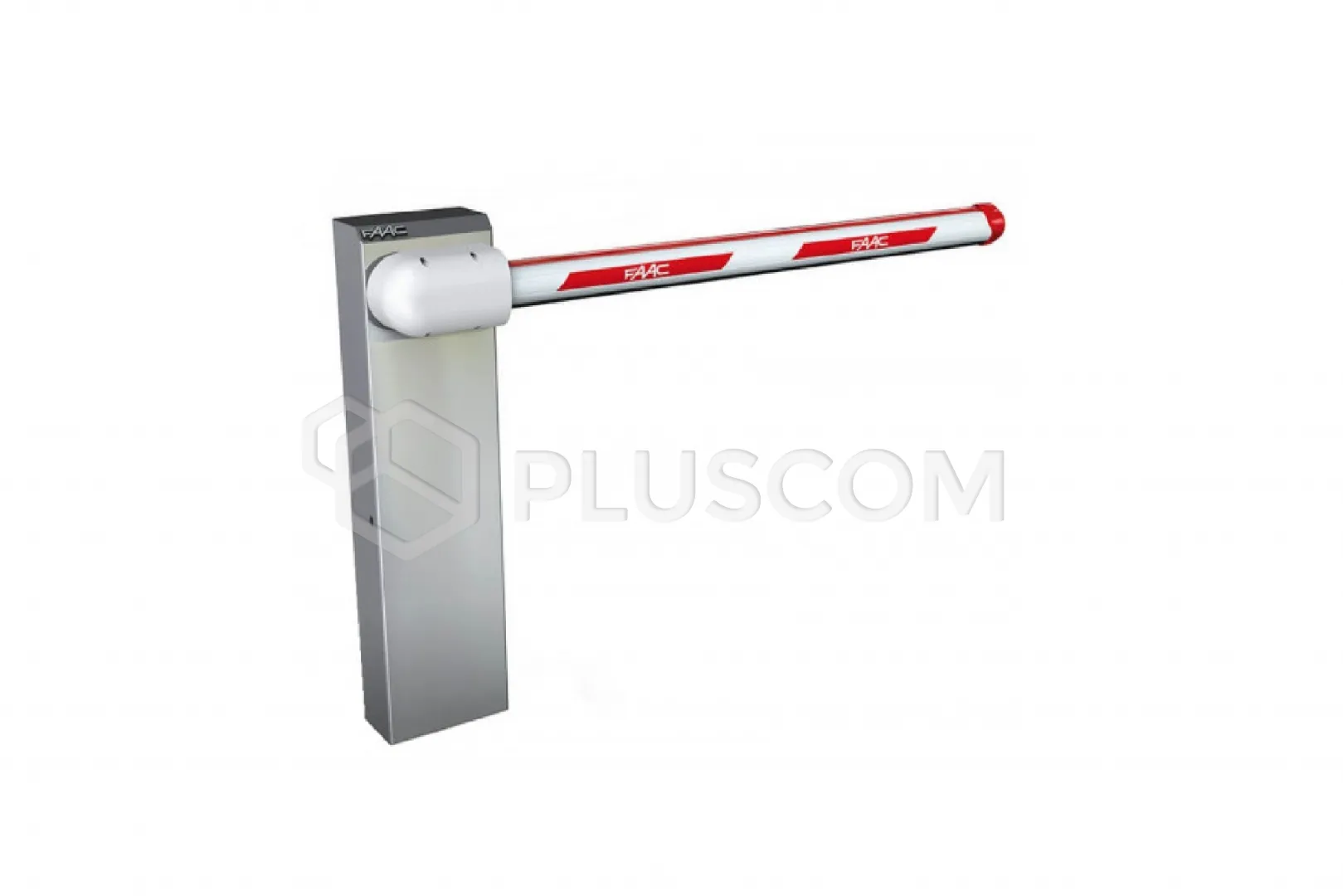

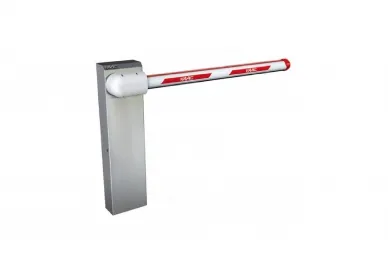

Automatic barrier 230V 615BPR RAPID gray.

FEATURES:

  • Hydraulic drive with opening and closing lock
  • Ideal for medium traffic loads and controlling small and medium-sized private areas
  • Hydraulic anti-theft protection
  • Manual unlocking mechanism with triangular key
  • Equipped with limit switches
  • Allows the use of the Anti-Vandal valve
  • Also available with the new oval arm with light support

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Type of motor - Single-phase asynchronous
  • Motor speed - 2,800 rpm
  • Max. power consumption - 220 W
  • Max. torque - 0 ÷ 300 Nm (*)
  • Pump capacity - 3 l/min (*)
  • Housing material - Steel
  • Protection type - 100 microns, anti-corrosion protection, RAL2004 polyester paint
  • Encoder - None
  • Slowdown type - Electronic with regulation
  • Arm type - Rectangular - Rectangular with apron - Rectangular Articulated - Oval
  • Ambient temperature during operation - -20°C ÷ +55°C
  • Thermal protection 120°C
  • Protection degree - IP44
  • Weight of the device - 34 kg
  • Oil type - FAAC HP
  • Dimensions (LxDxH) - 270x140x1015 mm
  • Max. arm length - 2.5 m
  • Opening time - 3 sec. (90°)
  • Use frequency - 40%
  • Control unit - 615BPR (built-in)
