Faac 104910 615BPR STANDARD grey Barrier unit 230V

1833,94 EUR including 23.00% VAT
Product code: #26897
Manufacturer: Faac
  • Power supply: 230V AC
  • Arm type Rectangular - Rectangular with apron - Articulated - Oval with lighting
  • Max. arm length: 5 m
  • Control unit: 615BPR (built-in)
  • RAL 9006
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 721006 Oval arm mounting spring S 7.0 mm Faac 428043 One-piece oval arm Faac 390081 Kit for connecting oval arm lighting to the 615BPR barrier Faac 428042 One-piece oval arm Faac 428091 4815mm Long rectangular arm for barrier Faac 428002 Oval arms Faac 428090 Standard rectangular arm 3815mm Faac 390993 LED lighting strip 12 m for barrier Faac 401066 ANTI-VANDAL valve for barrier Faac 737621 Foundation base for fixed support

Faac 104910 615BPR STANDARD gray Barrier unit 230V

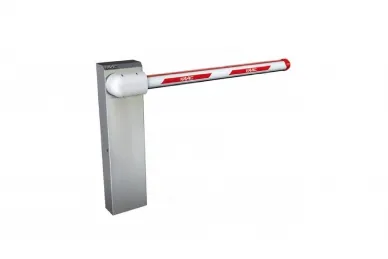

Automatic barrier 230V 615BPR STANDARD gray.

FEATURES:

  • Hydraulic drive with opening and closing lock
  • Ideal for medium traffic loads and controlling small and medium-sized private areas
  • Hydraulic anti-theft protection
  • Manual unlocking mechanism with triangular key
  • Equipped with limit switches
  • Allows the use of the Anti-Vandal valve
  • Also available with the new oval arm with light support

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Type of motor - Single-phase asynchronous
  • Motor speed - 1 400 rpm
  • Max. power consumption - 220 W
  • Max. torque - 0 ÷ 400 Nm
  • Pump capacity - 1.5 l/min
  • Housing material - Steel
  • Protection type - 100 microns anti-corrosion protection, polyester paint RAL 2004-RAL 9006
  • Encoder - None
  • Slowdown type - Electronic with regulation
  • Arm type - Rectangular - Rectangular with apron - Articulated - Oval with lighting
  • Ambient temperature during operation - -20°C ÷ +55°C
  • Thermal protection - 120°C
  • Protection class - IP44
  • Weight of the device - 34 kg
  • Oil type - FAAC HP
  • Dimensions (LxDxH) - 270x140x1015 mm
  • Max. arm length - 5 m
  • Opening time - 5.7 sec. (90°)
  • Use frequency - 50%
  • Control unit - 615BPR (built-in)
