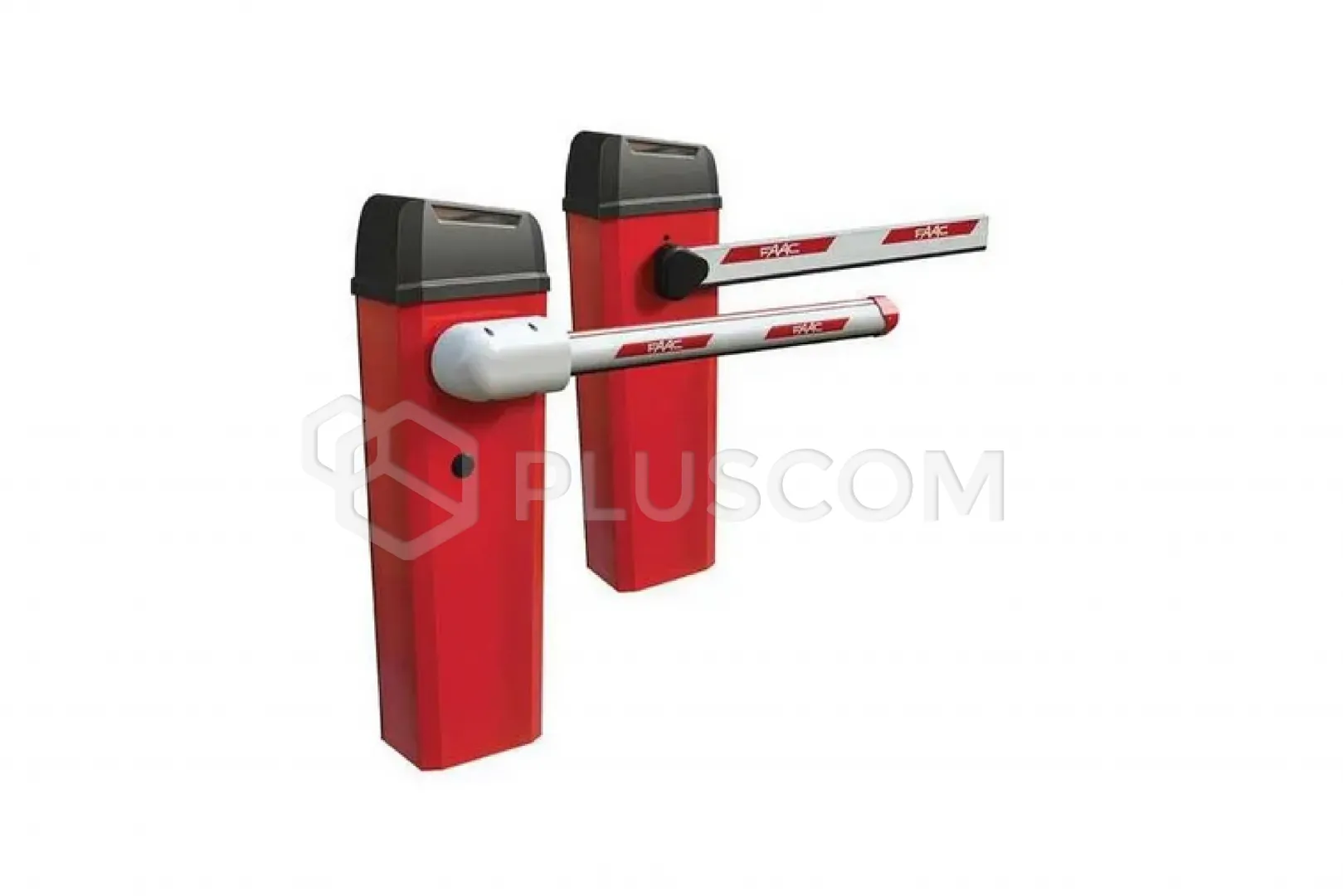

Faac 104614 B614 red RAL 3020 Barrier unit 24V

1975,33 EUR including 22.00% VAT
Product code: #26870
Manufacturer: Faac
  • Power supply: 230V AC
  • Zasilanie silnika: 24V
  • Max. arm length: 5 m
  • Control unit: E614 (built-in)
  • Arm type: Rectangular or oval
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 490186 Double pack attacks for spring B614 Faac 428002 Oval arms Faac 490183 Mounting plate for B614 barrier Faac 410032 Integrated semaphore for B614 Barrier arm stickers (6 pcs.) Faac 390993 LED lighting strip 12 m for barrier Faac 428806 Adjustable boom arm support Faac 390992 S/L boom lighting kit for barrier Faac 428445 Faac 737621 Foundation base for fixed support

Faac 104614 B614 red RAL 3020 Barrier unit 24V


Central unit consisting of a gear motor with motor, housing and control unit.

FEATURES:

  • Max. anti-crush protection thanks to the use of a 24 V DC motor with integrated encoder
  • Speed regulation and smooth operation
  • Easy and intuitive programming thanks to the modern control unit located in the upper part of the barrier housing (IP 55)

Technical data:

  • Supply voltage 220-240 V AC 50/60 Hz
  • Motor type Brushed 24 V DC
  • Max. power consumption 165 W
  • Max. torque 300 Nm
  • Housing material Steel
  • Protection type Galvanized steel, 20μm polyester paint
  • Encoder Incremental, integrated with the motor
  • Slowdown type Electronic and mechanical
  • Arm type Rectangular or oval
  • Ambient temperature during operation -20°C ÷ +55°C
  • Protection class IP55 (control panel) IP44 (housing)
  • Weight of the device 40 kg
  • Dimensions (LxDxH) 360x250x1163 mm (mounting base 305x230mm)
  • Max. arm length 5 m
  • Opening time 2 sec. (80°- 3m)
  • Use frequency 100%
  • Control unit E614 (built-in)
