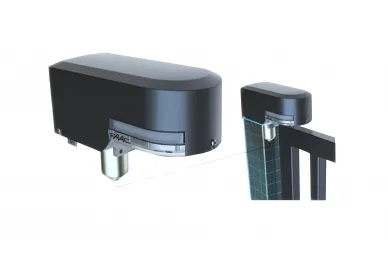

Faac 104250 Electromechanical drive S2500I 24V

946,88 EUR including 23.00% VAT
Product code: #32778
Manufacturer: Faac
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Max. leaf width 2 m (2.5 m with electromagnetic lock)
  • Max. gate leaf weight: 250 kg
  • Max. gate leaf opening angle 165°
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 390091 External unlocking kit S2500I Faac 391456 XK30 key switch with release lever Faac 90926 Emergency battery base Faac 490255 Reduction adapter for 120 x 120 mm post for S2500I drive Faac E124 control unit with housing Faac 490254 Reduction adapter for 100 x 100 mm post for S2500I drive Faac 490253 Kit for screwing the hinge sleeve (instead of welding) to the S2500I drive Faac 490252 Integrated opening and closing limit switches for S2500I drive Faac 490250 Hinge kit, mounting for S2500I drive Faac 424550001-10 External Unlock Mechanism with Individual Keys 1 to 10

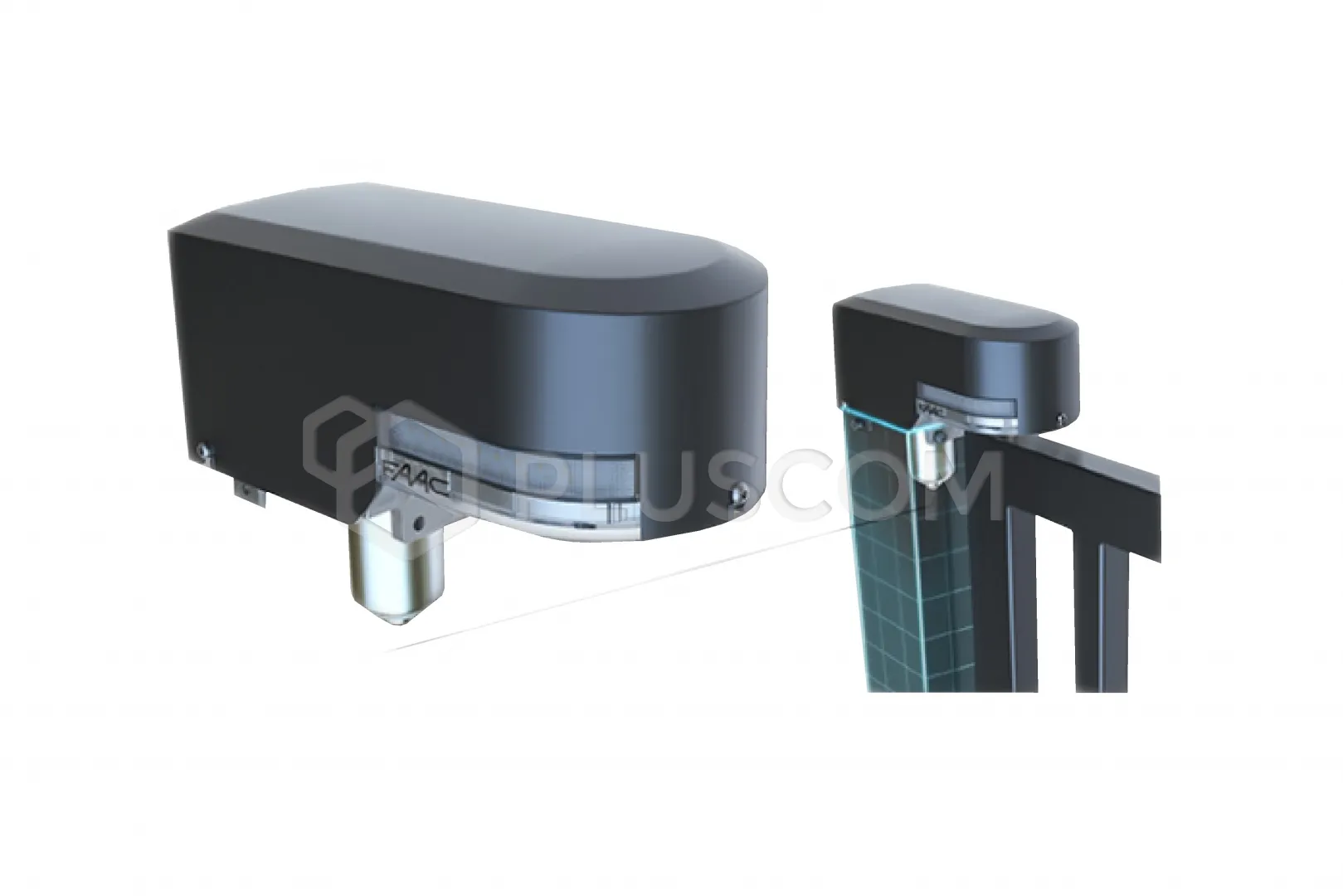

Faac 104250 Electromechanical drive S2500I 24V


Electromechanical drive S2500I 24V for swing gates up to 250 kg and length up to 2.5 m.

FEATURES:

Modern design
  • The S2500I drive perfectly matches any architectural setting
  • The aluminum cover is available in two versions: painted RAL 7021; neutral, can be painted in any colour
Single, easy-to-install model
  • Designed to meet numerous application requirements, it can be integrated with metal columns of the following dimensions: 10 x 10 cm, 12 x 12 cm, 15 x 15 cm.
  • The operator can be installed on new or existing gates. It can also be installed later, initially only the hinge and cover need to be prepared.
Flashing light
  • Integrated into the structure, so the gate retains its aesthetics
  • The lamp is protected against impacts and is clearly visible from both the inside and outside
High opening and closing speed (adjustable) Short waiting time - the gate can open in just 10 seconds

Built-in mechanical stops (option) The integrated, adjustable mechanical stops allow both the opening position to be set, so there is no need to install mechanical stops on the ground.

Remote manual release
  • Easy access from both inside and outside the property
  • Secured by a coded key, can be remotely controlled using a key with a release lever
Maximum anti-crush safety The integrated 24V electromechanical actuator is equipped with an absolute encoder, which allows full movement control and reversing in the event of encountering an obstacle.

Compatible with E124 control unit
  • Advantages: numerous programmable parameters, omnidec system, BUS 2easy
  • Intuitive programming using buttons and display
S2500I DRIVE CAN BE INSTALLED ON SQUARE POSTS:
  • 10 x 10 cm
  • 12 x 12 cm
  • 15 x 15 cm
Included: S2500I 24V electromechanical drive for swing gates up to 250 kg and length up to 2.5 m.

Technical data:

  • Voltage power supply: 220-240V AC 50/60 Hz
  • Motor type: Brushed 24V DC
  • Max. power consumption: 40 W
  • Max. torque: 320 Nm
  • Max. angular speed: 10°/s
  • Max. gate wing weight: 250 Kg
  • Max. gate wing opening angle: 165°
  • Ambient temperature during operation: -20°C ÷ + 55°C
  • Protection class: IP X4
  • Device weight: 7.9 Kg (drive), 3.3 Kg (hinge), 1.8 Kg (housing)
  • Device dimensions (WxDxH): 340 x 160 x 150 mm
  • Control unit: Not included
  • Integrated opening and closing limiters: Optional
  • Continuous operation (ROT): Continuous up to 55°C
  • Encoder: Absolute magnetic, BUS connection
  • Max. leaf width: 2 m (2.5 m with electromagnetic lock)
  • Dimensions of square post cross-section: 100x100, 120x120, 150x150 mm
