Eutonomy euFRAME CONCEALED PANEL FBWP-PXS-02 with proximity sensor

Eutonomy euFRAME CONCEALED PANEL FBWP-PXS-02 with proximity sensor

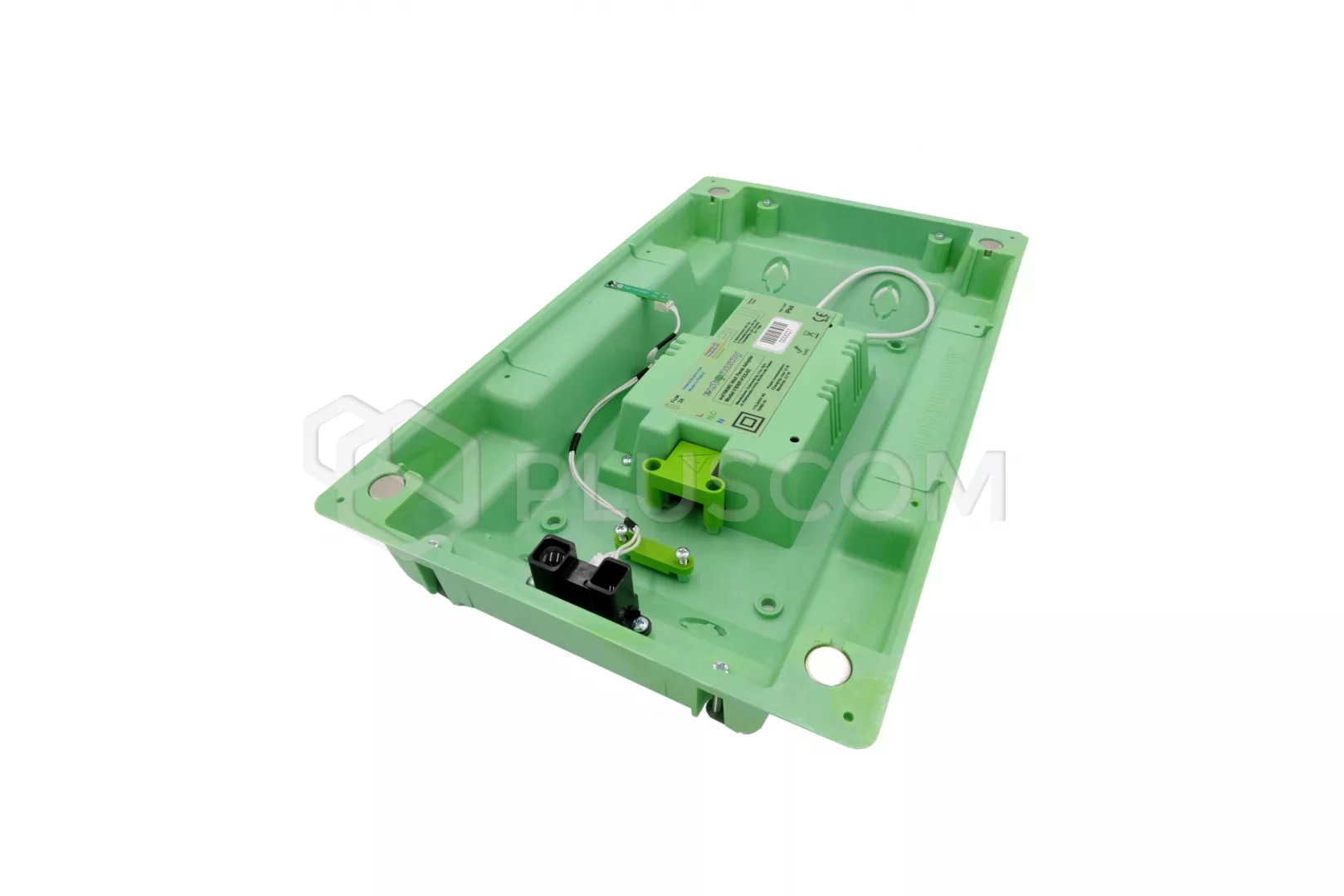

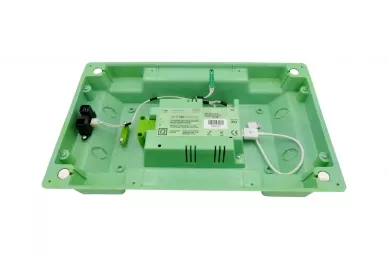

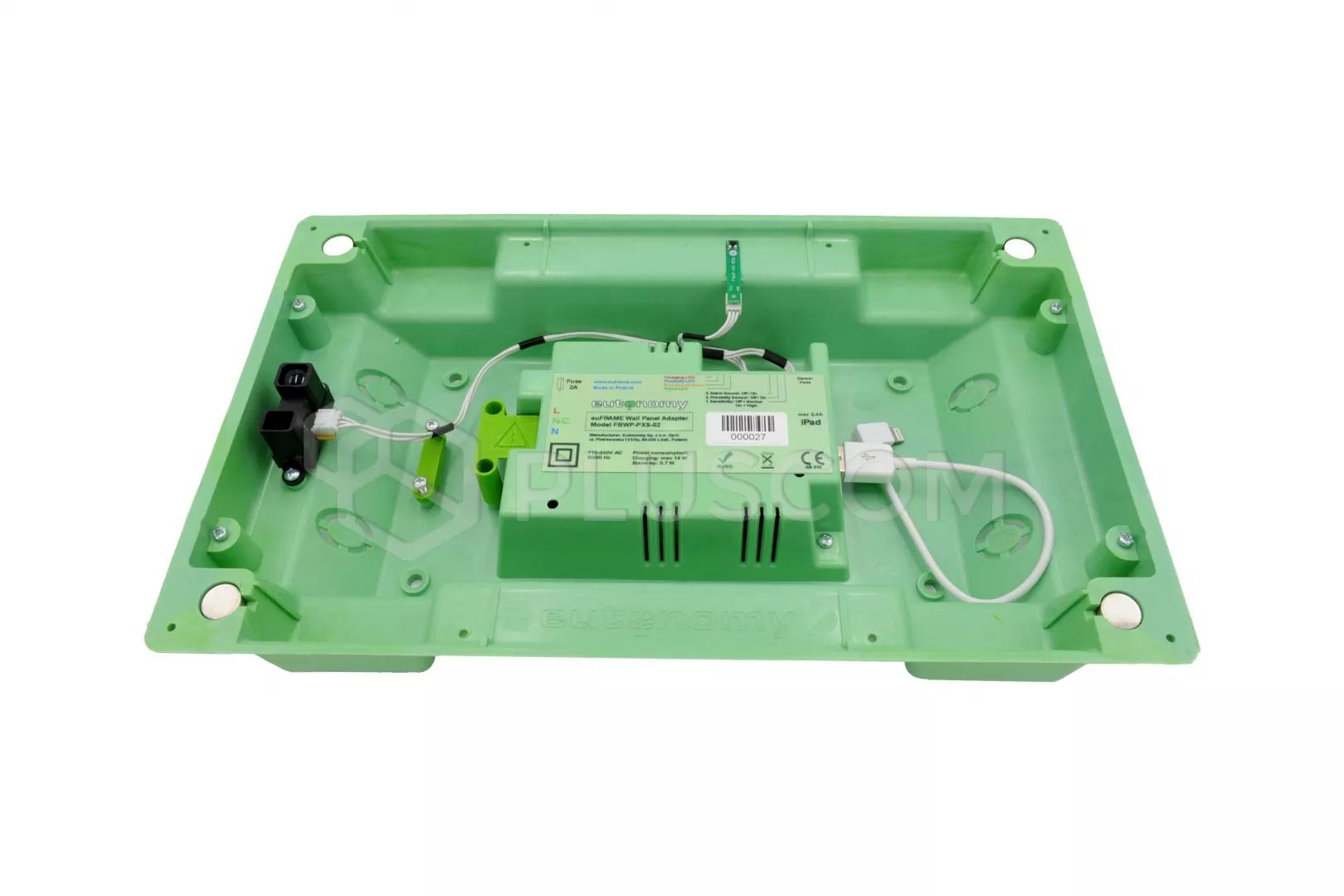

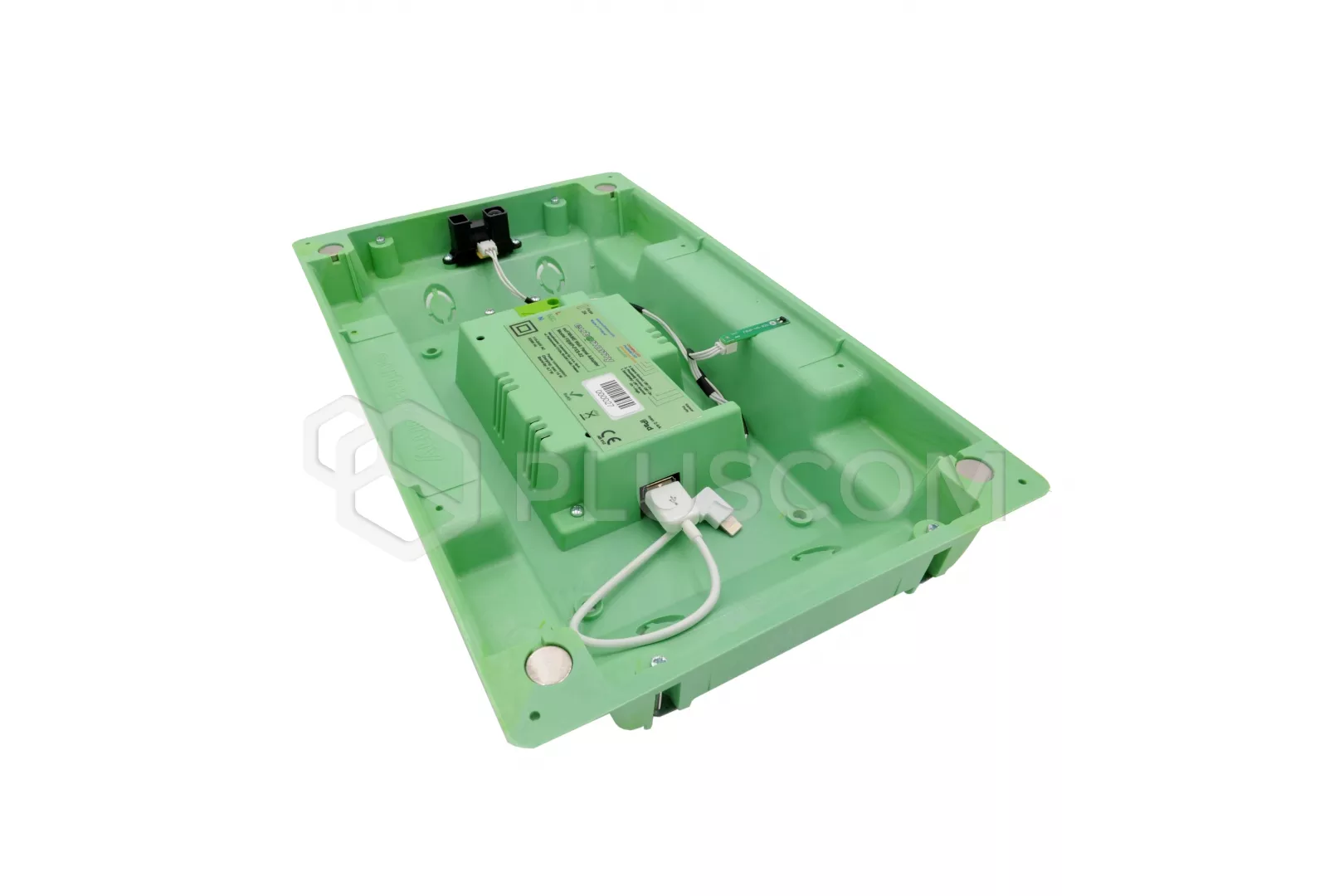

The euFRAME concealed panel is intended to be permanently built in a wall - serving as a fixed ‘dock’ for iPad® Air 2 or iPad® Pro 9.7” tablet from the Apple company, dedicated, among others, to display information or control automatic systems of a smart building. The concealed panel consists of a concealed box with a built-in power supply unit and a microprocessor controller, and also of a decorative external frame, masking the interface between the box and a wall and keeping the tablet in the appropriate position. The frame is attached to the box with the use of magnets. Frames are made of high-quality mineral composites, and come in many colours and designs. The fact that the panel can be fitted easily makes it possible to coat its surface and the wall plane precisely. Moreover, version FBWP-PXS-02 of the concealed panel features a proximity sensor. After detecting that a person intends to use a tablet, the sensor switches it out of the sleep mode.

Technical Data:

• Supply voltage: 110 – 240 V AC, 50–60Hz
• Power consumption: max. 14 W
• Input current consumption: 0.35 A/115 V, 0.2 A/230
• Inrush current: 30 A/115 V, 50 A/230 V
• Box dimensions: 299.7 x 182.9 x 49.1 mm
• Frame dimensions: 315.4 x 192.4 x 4/6 mm
• Type of walls: solid brick walls (made of concrete, bricks, etc.) and cavity walls (made of drywall or wood)
• Protections: Overheating and overload protection (triggered when load current exceeds 2.5A)
• Alarm sound: 89 dB at 10 cm
• Operating temperature: 0°C to +50°C
• Relative humidity: ≤90%, no condensation
• Degree of protection: IP20
• Alarm output current: max. 120 mA, RON=2.2 kΩ
• Detection of approach:¹) Step adjustment: Normal 60 cm, High 1 m
