EuFIX S224 Adapter for Fibaro FGS-224 module

52,62 EUR including 23.00% VAT
Product code: #33934
Manufacturer: Fibaro
  • For FIBARO FGS-224
  • For TH35 DIN rail
  • Supply voltage: 230V AC
  • Buttons S1 and S2
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fibaro Double Smart Module FGS-224

euFIX S224 adapter for FIBARO FGS-224 module

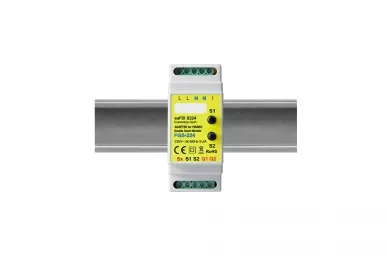

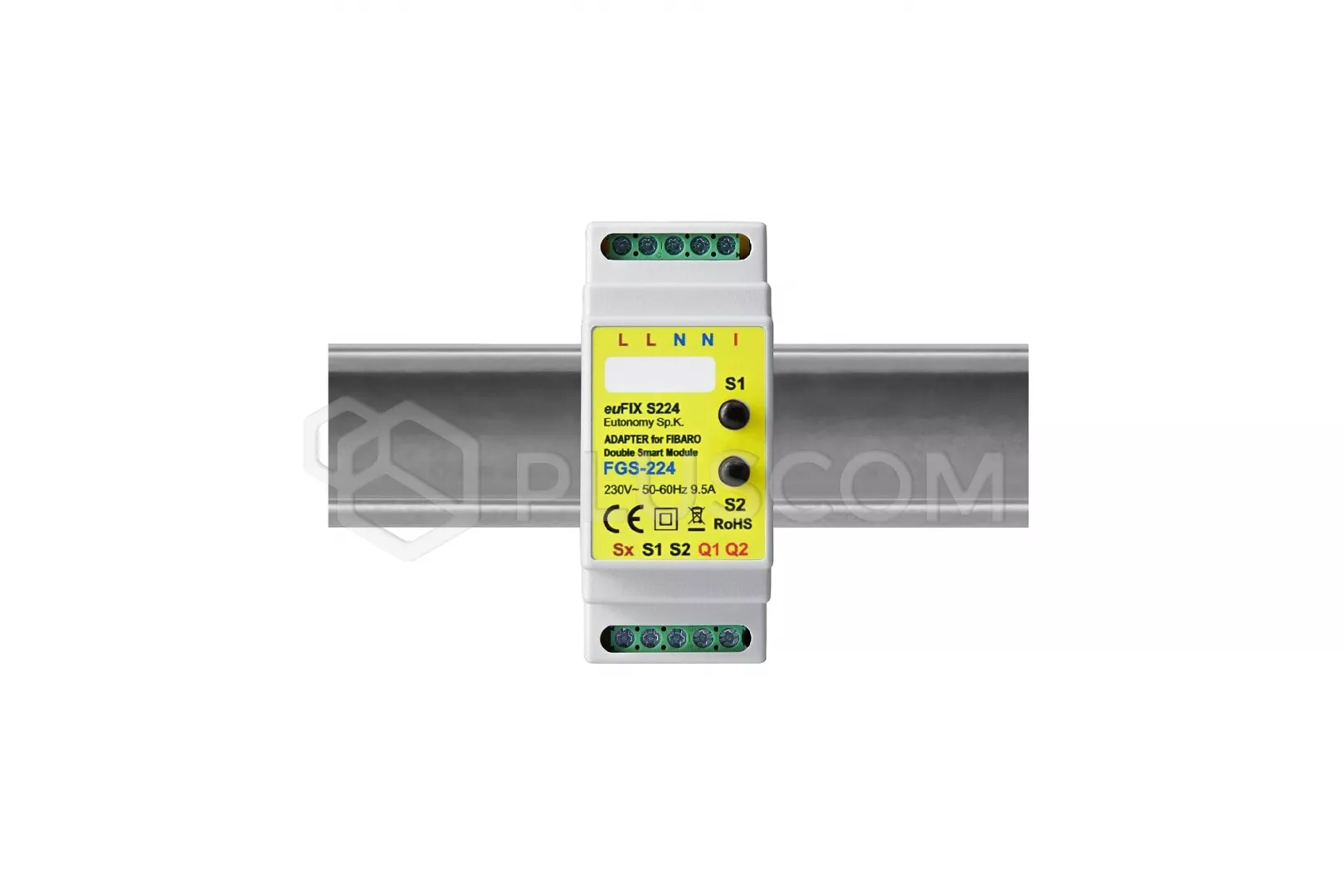

The S224 adapter is used for safe installation of the FIBARO FGS-224 module in electrical switchboards.
The adapter consists of a housing for mounting on a DIN TH35 rail and a plate carrier, with terminals for connecting power, input signals and outputs and control buttons. The FIBARO module is mounted to the board FGS-224. In the upper part of the housing there are micro-buttons S1 and S2 used for diagnostics. We will also register the module in the system by pressing the S1 button Z-Wave or we will remove it from the system.

TECHNICAL DATA:
  • supply voltage: 230V AC
  • Load current: 6A per channel, and the total load cannot exceed 9.5A
  • housing dimensions: 34.8 x 87.3 x 64.7mm
  • width in modules: 2 TE modules
  • cross-sectional area of connection cables: max. 2.5mm2
  • maximum length of cables connected to Sx, S1, S2 inputs: 10m
  • operating temperature: from 0°C to +35°C
