EuFIX S214NP Adapter for Fibaro FGS-214 module

40,17 EUR including 23.00% VAT
Product code: #33933
Manufacturer: Fibaro
  • For FIBARO FGS-214
  • For TH35 DIN rail
  • Supply voltage: 230V AC
  • Version without micro-buttons (S1, S2)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fibaro Smart Module FGS-214 ZW5

euFIX S214NP adapter for FIBARO FGS-214 module

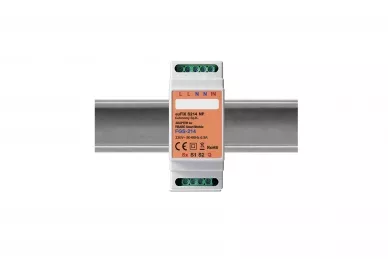

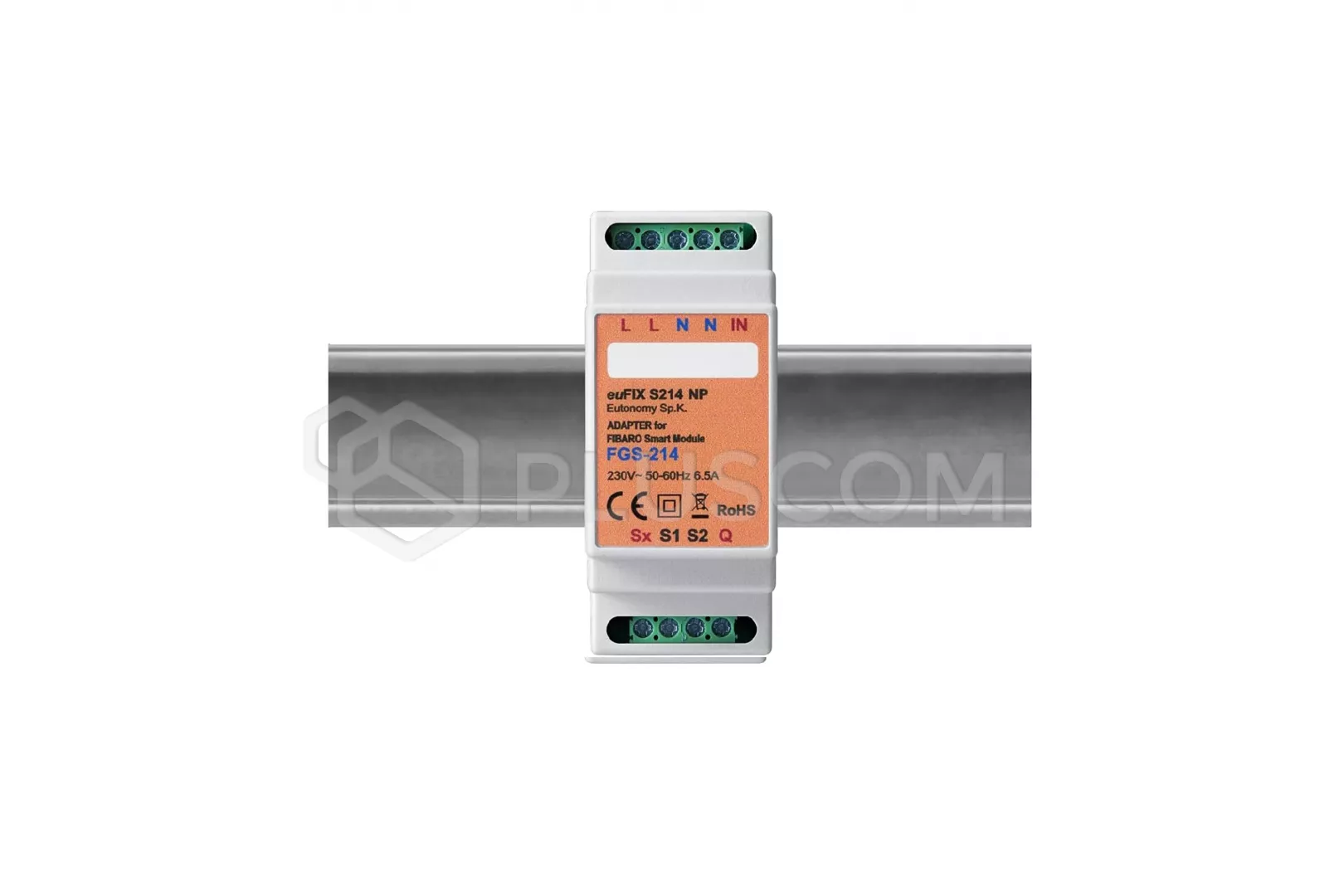

The S214NP adapter is used for safe installation of the FIBARO FGS-214 module electrical switchboards.
The adapter consists of a housing for mounting on a DIN TH35 rail and a plate carrier, with terminals for connecting power, input signals and outputs and control buttons. The FIBARO module is mounted to the board FGS-214. This version of the adapter does not have micro-buttons (S1, S2). In order to diagnostics and control, please connect an external button connected to screw terminals.

TECHNICAL DATA:
  • supply voltage: 230V AC
  • load current: 6.5A for resistive load
  • housing dimensions: 34.8 x 87.3 x 64.7mm
  • width in modules: 2 TE modules
  • cross-sectional area of connection cables: max. 2.5mm2
  • maximum length of cables connected to Sx, S1, S2 inputs: 10m
  • operating temperature: from 0°C to +35°C
