EuFIX S213 Adapter for Fibaro FGS-213 or FGBHS-213 (HomeKit) modules

42,10 EUR including 23.00% VAT
Product code: #21797
Manufacturer: Fibaro
  • For FIBARO FGS-213 lub FGBHS-213 (HomeKit)
  • For TH35 DIN rail
  • Supply voltage: 230V AC
  • Buttons S1 and S2
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

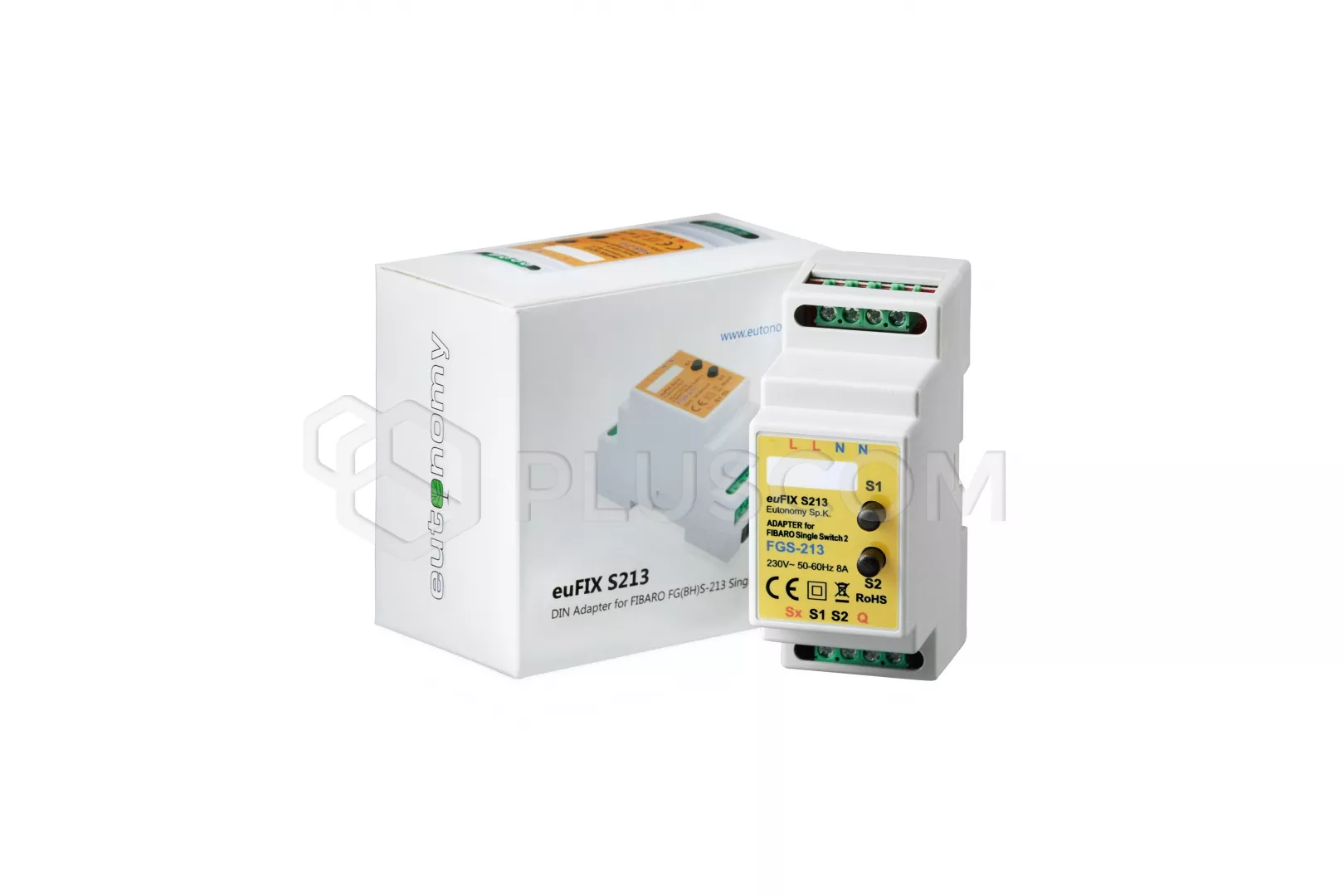

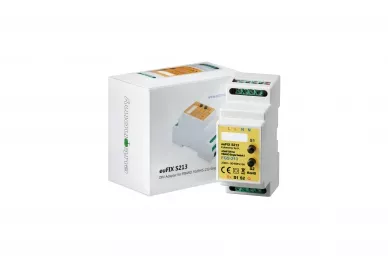

EuFIX S213 adapter for the FIBARO FGS-213 or FGBHS-213 (HomeKit) modules


The S213 adapter is used for safe installation of the FIBARO FGS-213 or FGBHS-213 (HomeKit) modules in electrical switchboards.

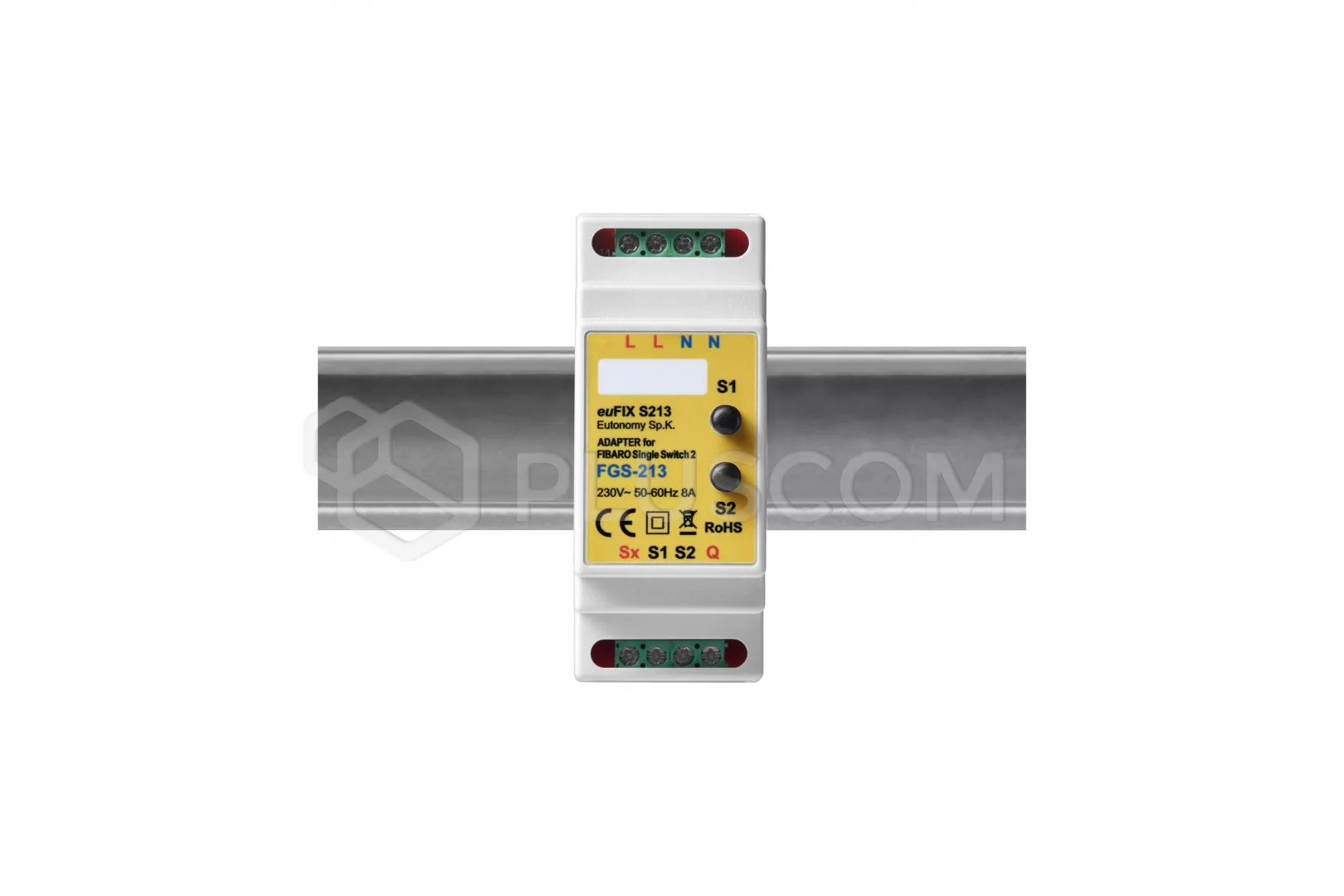

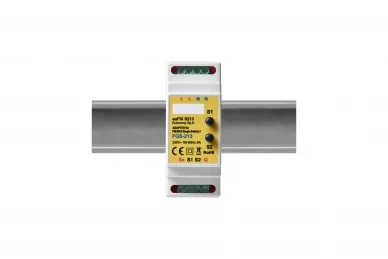

The adapter consists of a housing for mounting on a TH35 DIN rail and a plate carrier, with terminals for connecting power, input signals and output and control buttons. The FIBARO module is mounted to the board FGS-213 or FGBHS-213 (HomeKit). In the upper part, the housing has micro-buttons S1 and S2 used for diagnostics. We can also register the module in the system with the S1 button Z-Wave or remove it from the system.

TECHNICAL DATA:
  • supply voltage: 230V AC
  • load power: max 8 A (resistive load)
  • housing dimensions: 34.8 x 87.3 x 64.7mm
  • width in modules: 2 TE modules
  • cross-sectional area of connection cables: max. 2.5mm2
  • maximum length of cables connected to inputs Sx, S1, S2: 20m
  • working temperature: od 0°C do +35°C
Download
