EuFIX R223NP adapter for the Fibaro FGR-223 module

32,13 EUR including 23.00% VAT
Product code: #21794
Manufacturer: Fibaro
  • For FIBARO FGR-223
  • For TH35 DIN rail
  • Supply voltage: 230V AC
  • Version without micro-buttons (S1, S2)

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

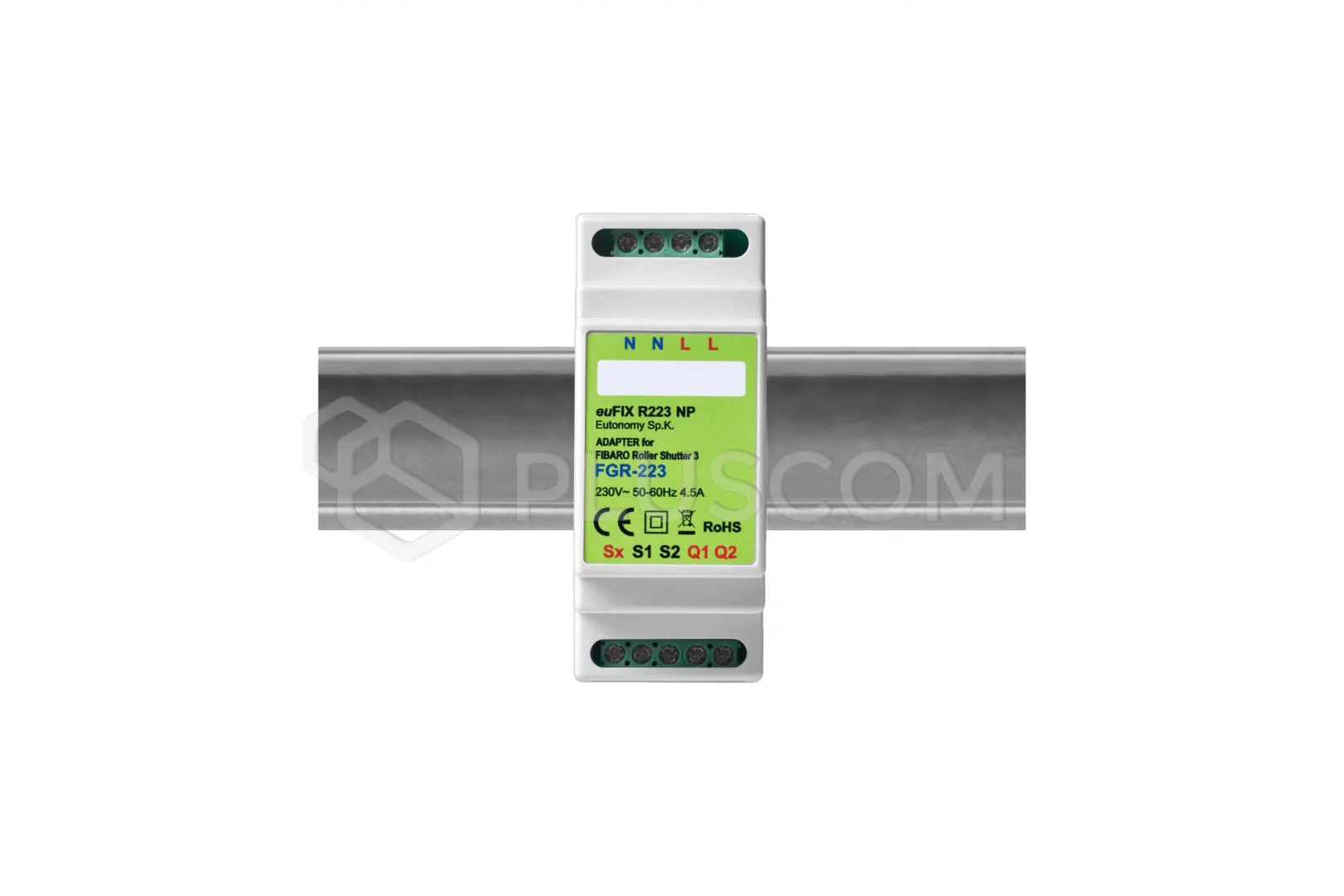

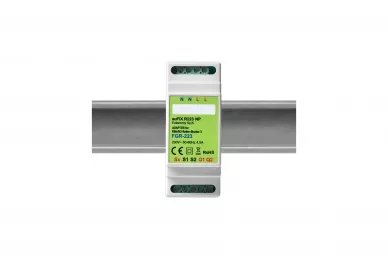

EuFIX R223NP adapter for the FIBARO FGR-223 module


The R223NP adapter is used for safe installation of the FIBARO FGR-223 module in electrical switchboards.
The adapter consists of a housing for mounting on a TH35 DIN rail and a plate carrier, with terminals for connecting power, input signals and output and control buttons. The FIBARO module is mounted to the board FGR-223. This version of the adapter has no micro-buttons (S1, S2). In order to For diagnostics and control, connect an external button connected to the screw terminals

TECHNICAL DATA:
  • supply voltage: 230V AC
  • load power: 4.2A
  • housing dimensions: 34.8 x 87.3 x 64.7mm
  • width in modules: 2 TE modules
  • cross-sectional area of connection cables: max. 2.5mm2
  • maximum length of cables connected to input Sx: 10m
  • working temperature: od 0°C do +35°C
