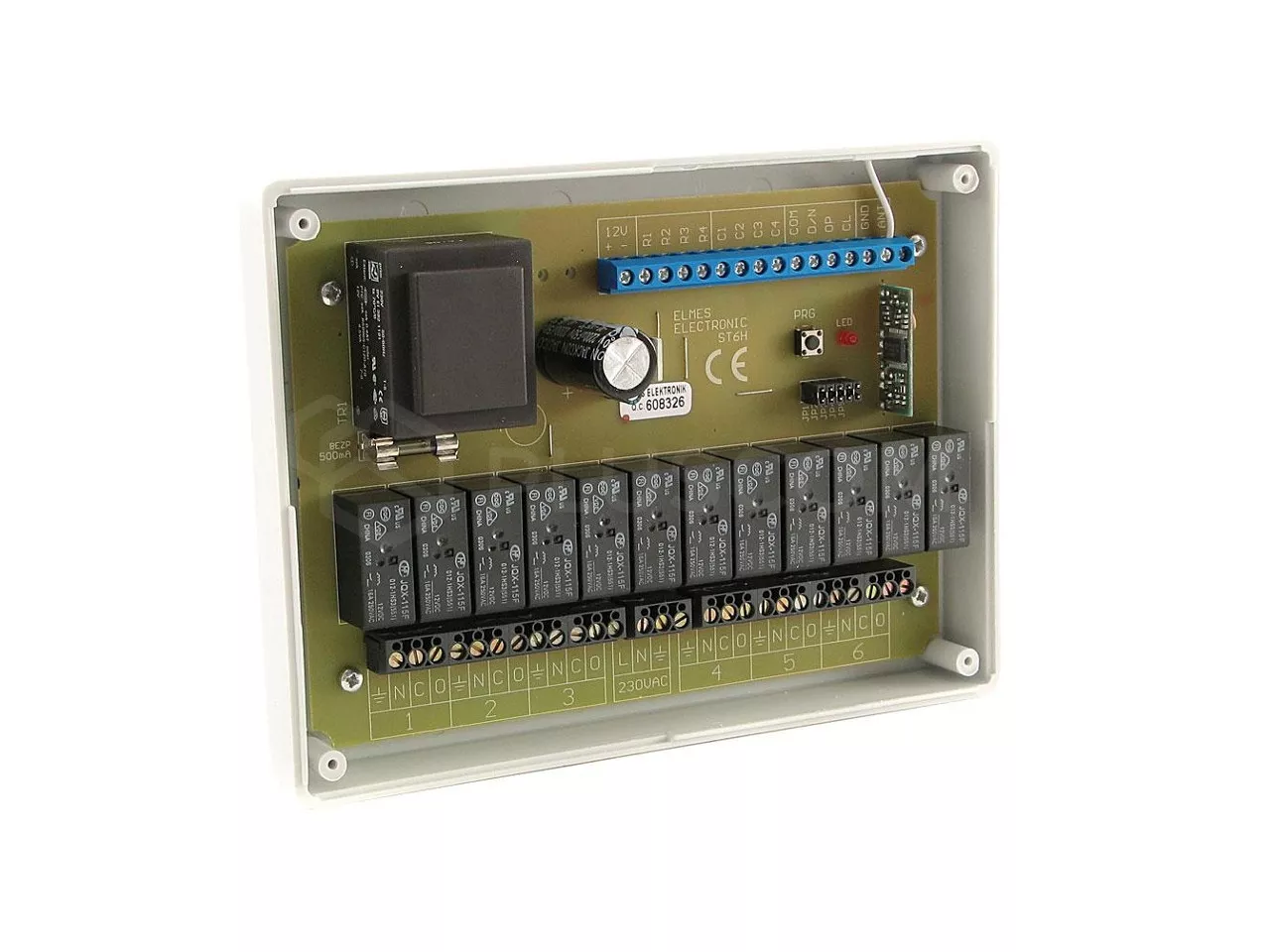

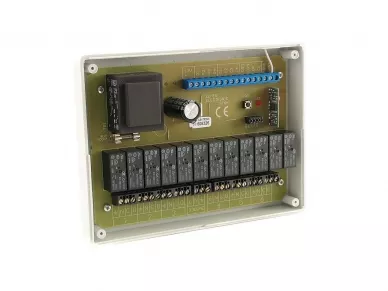

Elmes ST6HR Wireless control set for up to six windows rollers

Using the Elmes ST6HR controller can control window rollers powered by electric AC tube motors with integral terminal switches.

The control is:

• wireless remote controls (max 32) using KEELOQ rolling code system ensures high security of transmission.
• wired using momentary switches.


To cooperate pilot STX is recommended, but you can also use the remote control CH8HT CH32HT. Remote two- or four-button does not allow the use of full functionality. STX remote control allows you to control up to 35 blinds, in addition to channels 1-8 have automatic clock that gives you the ability to define automatic opening and closing of hours defined by users. The remote is not included.

The controller allows for any configuration you can:

• to control each individual roller
• define a group of roller blinds (eg, ground floor, first floor)
• control all shutters at the same time
• use the input clock and define opening / closing


INSTALLATION AND CONFIGURATION
All rollers and switches must be connected directly to the controller, star topology. There is no need to install separate drivers for each rollout. However, we need to run wires from the engine and from switches to one controller. The advantage of this solution is full freedom of configuration and control group and no interference with the control group where each of the blinds has an individual driver.Controller Programming is carried out using the PRG and jumpers on the receiver board and pre-programmed pilots.
You can connect controllers and control more roller blinds (eg 12+)

SPECIFICATIONS

• superheterodyne receiver 433.92 MHz
• power supply 230VAC (4VA)
• storage capacity of up to 32 pilots
• input for connecting the clock
• inputs for the 16 trip wire
• relay outputs: 12xNO (6 motors), 16A / 230VAC
• operating temperature range from -20°C...+40°C
• external dimensions: (d / s / w) 186x137x47mm
